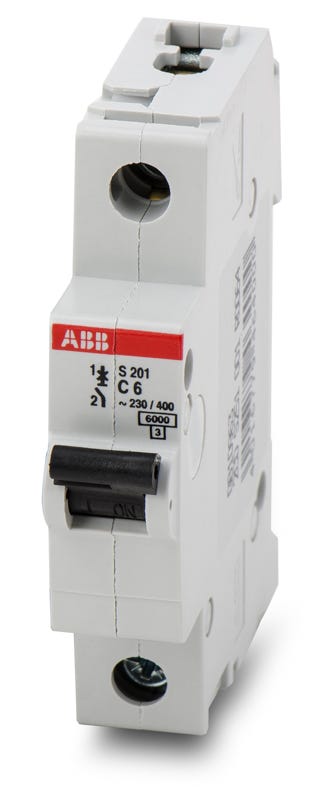

ABB S201-C6 Miniature Circuit Breaker
- 6A
- 1 Pole
- DIN Rail
Quantity
ABB S201-C6 - 6A 1 Pole Miniature Circuit Breaker
New
Quantity
Description
Designed for industrial control environments, this 6-amp supplementary protector offers precise C-curve thermal-magnetic tripping for circuits with moderate inrush currents. The unit mounts seamlessly onto standard 35mm DIN rails within commercial enclosures and automation panels. Built with finger-safe clamp terminals accommodating 18-4 AWG wire, it ensures safe operation while its current-limiting design rapidly extinguishes faults to protect sensitive downstream equipment.Specifications
| Brand | ABB |
|---|---|
| Part Number | S201-C6 |
| Series | S200 |
| Amperage | 6A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 120VAC, 480Y/277VAC, 230/400VAC, 60VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 6kA @ 480Y/277VAC, 6kA @ 230/400VAC, 10kA @ 60VDC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | DIN Rail Enclosures, Control Panels |
| Wire Gauge | 18-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Signal Contact, Padlock Attachment, Motor Operator, Busbar System |
|---|---|
| Accessories | Auxiliary Contact, Shunt Trip, Signal Contact, Undervoltage Release |
| Standards | CSA C22.2 No. 235, IEC 60898-1, IEC 60947-2, UL 1077 |
| Approval | CE, CSA, IEC, UR, VDE |
| Temp Rating | -25C to 55C |
| Construction Features | Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat does the C trip curve mean for the ABB S201-C6?
The C-curve trip characteristic is designed for circuits with moderate inrush currents. It typically trips between 5 and 10 times the rated current, making it ideal for lighting circuits, small motors, and general control panel wiring.
Is the ABB S201-C6 rated as a UL 489 branch circuit breaker?
No, the S201-C6 is recognized as a UL 1077 supplementary protector. It is designed to provide additional overcurrent protection within appliances or electrical equipment where branch circuit protection is already provided upstream.
Can I add auxiliary contacts or shunt trips to the S201-C6?
Yes, the ABB S200 series is modular and supports a wide range of field-installable accessories. You can mount auxiliary contacts, signal contacts, shunt trips, and undervoltage releases directly to the breaker.
How is the ABB S201-C6 mounted inside a control panel?
This miniature circuit breaker snaps directly onto a standard 35mm DIN rail, allowing for quick and space-saving installation in commercial enclosures and automation panels.
What is the manufacturer catalog number and global SKU for this 6A breaker?
The catalog number is S201-C6, and the ABB global SKU or reference number is 2CDS251001R0064.
Are the terminals on the S201-C6 finger-safe?
Yes, it features finger-safe, bi-directional cylinder-lift screw terminals with an IP20 protection rating to prevent accidental contact with live wires during maintenance.
Can this breaker be used in DC control circuits?
Yes, the S201-C6 is rated for use in DC applications up to 60VDC, providing a 10kA interrupting capacity for direct current control panels and automation systems.
