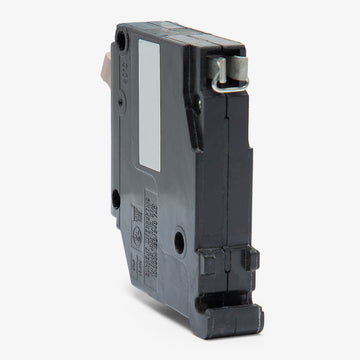

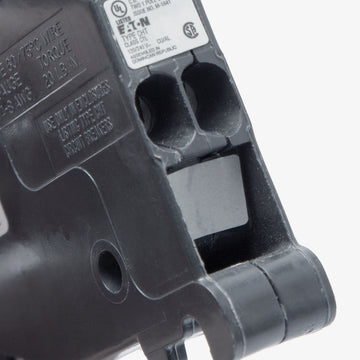

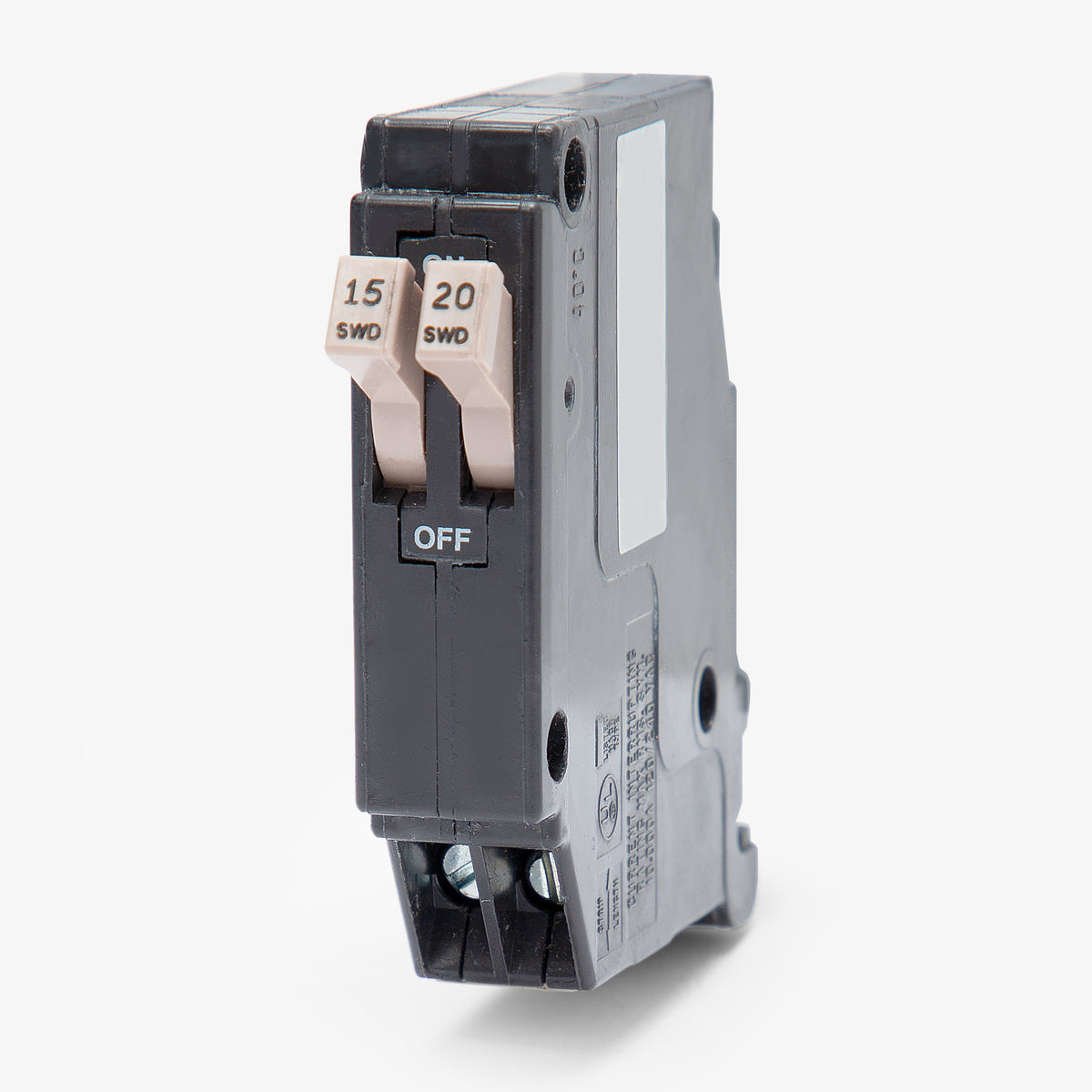

Eaton / Cutler-Hammer CHT1520 15/20A 1 Pole Miniature Circuit Breaker
- 15/20A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer CHT1520 - 15/20A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHT1520 - 15/20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHT1520 |
| Series | CHT |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Tandem, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
Eaton / Cutler-Hammer CHT1520 - 15/20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHT1520-R |
| Series | CHT |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Tandem, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Built to solve overcrowding issues, this space-saving tandem unit houses independent 15A and 20A mechanisms inside one standard 3/4-inch casing. It easily installs into compatible Cutler-Hammer and Eaton Type CH enclosures, making it ideal for residential upgrades or renovations requiring additional circuits. Rated for 10kA fault current, the assembly includes switching duty and HACR certifications. This ensures safe operation for standard lighting loads as well as dedicated motor applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHT1520 |
| Series | CHT |
| Amperage | 15/20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Tandem |
|---|---|
| Available Options | Padlock Attachment |
| Standards | CSA C22.2 No. 5, UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Tandem, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
7 answersWhat type of loadcenter is the Eaton CHT1520 compatible with?
This breaker is designed for use in Eaton or Cutler-Hammer Type CH loadcenters. Because it is a CTL (Circuit Total Limiting) breaker, it must be installed in panel slots specifically notched to accept tandem breakers.
How are the circuits configured on the CHT1520 breaker?
The CHT1520 is a twin or tandem breaker that provides two independent circuits in a single slot. It features one 15-amp circuit and one 20-amp circuit, making it ideal for adding capacity to a full panel.
How much panel space does the CHT1520 require?
This twin breaker fits into a single 3/4-inch space in a compatible Type CH panel. This allows you to add two separate circuits without taking up two full breaker slots.
Can I install the CHT1520 in any Type CH panel slot?

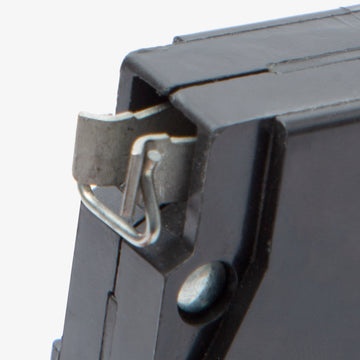

No. As a CTL (Circuit Total Limiting) breaker, it features a physical rejection clip. It will only seat properly in panel slots that are specifically designed and approved for tandem breakers.
Does the CHT1520 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker. It does not provide GFCI or AFCI protection.
Is the CHT1520 rated for switching duty and HVAC applications?
Yes. This breaker is SWD (Switching Duty) rated for standard lighting applications and HACR rated for use with heating, air conditioning, and refrigeration equipment.
What is the UPC for the Eaton CHT1520?
The UPC for this twin circuit breaker is 782113631554.
