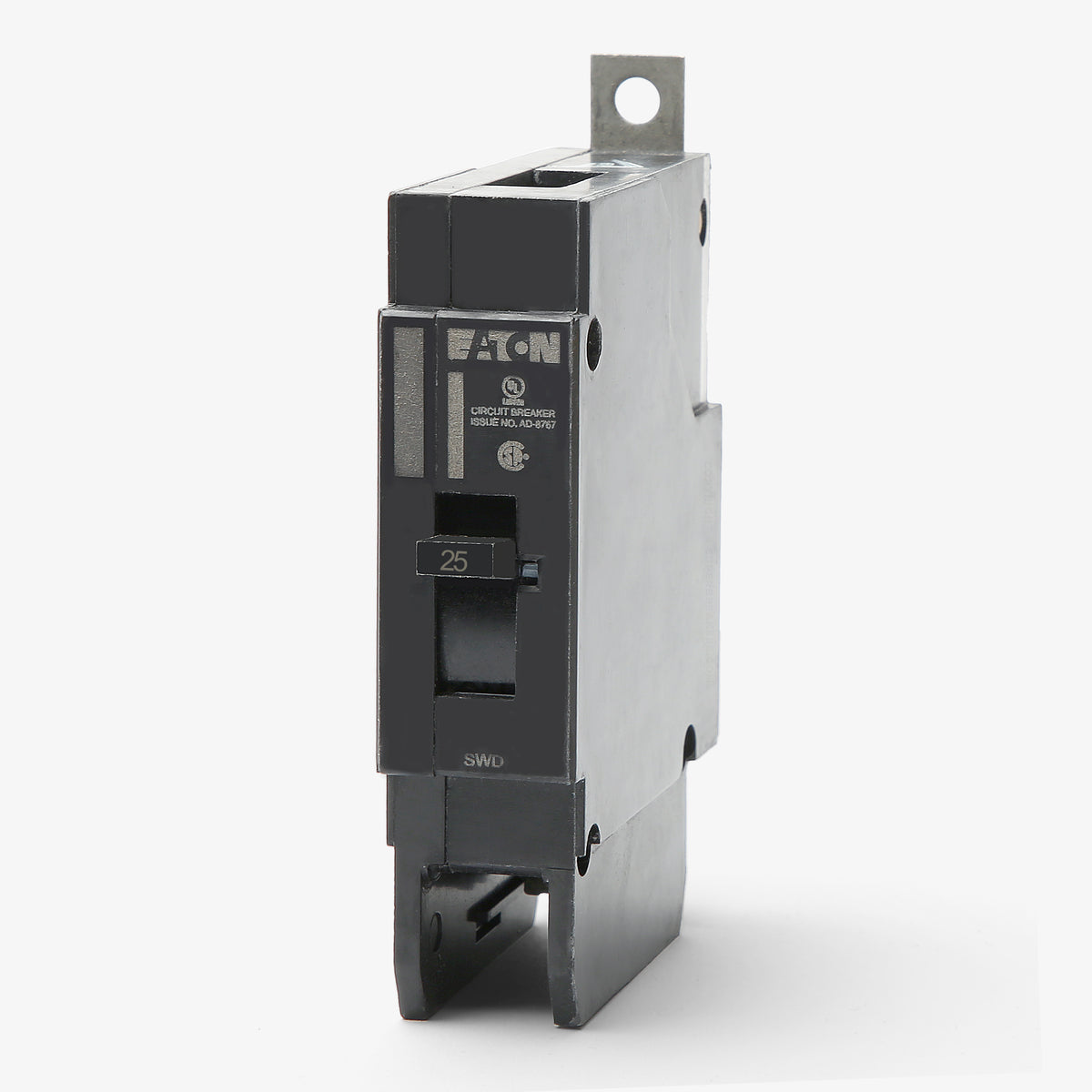

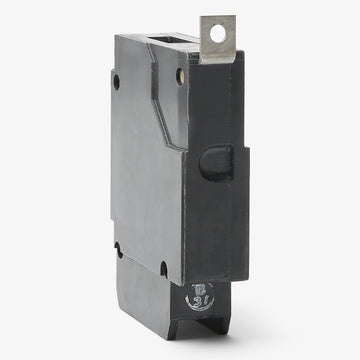

Eaton / Cutler-Hammer GHB1025 Molded Case Circuit Breaker
- 25A
- 1 Pole

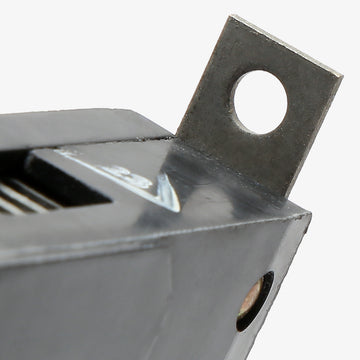

- Bolt-On
Eaton / Cutler-Hammer
GHB1025
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHB1025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHB1025 - 25A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
35A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
Designed for commercial and industrial power distribution, this 25-amp single-pole MCCB delivers consistent overcurrent protection. The breaker mounts into Eaton Pow-R-Line C panelboards and motor control centers, ensuring a secure bolt-on fit for demanding environments. With an interrupting rating of 65kAIC at 120VAC and 14kAIC at 277VAC, it handles significant fault currents. The device is HACR rated for heating, air conditioning, and refrigeration equipment, plus it supports reverse feeding.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHB1025 |
| Series | GHB |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 120VAC, 14kA @ 277VAC, 14kA @ 125VDC |
| Frame Type | GHB |
|---|---|

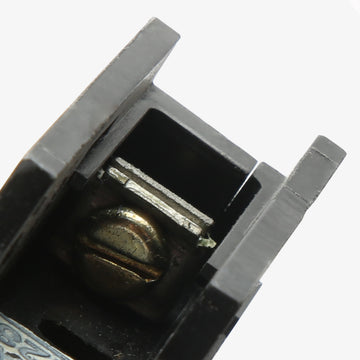

| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | #10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, Federal Specification W-C-375B, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards are compatible with the GHB1025 circuit breaker?
The GHB1025 is designed for use in Eaton Pow-R-Line C panelboards, specifically the PRL1a, PRL2a, and PRL3a series, as well as compatible switchboards and motor control centers.
Can the Eaton GHB1025 replace older Westinghouse models?
Yes, the Eaton GHB1025 is a direct replacement for older Cutler-Hammer and Westinghouse GHB1025 circuit breakers. They share the exact same physical G-frame dimensions and bolt-on mounting configuration.
Is the GHB1025 suitable for reverse-feed applications?
Yes, GHB series bolt-on circuit breakers are suitable for reverse-feed (back-fed) applications, allowing them to be used as main breakers in compatible distribution panels.
Is the GHB1025 HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment branch circuits.
Can the trip settings on the GHB1025 be adjusted?
No, the GHB1025 features a non-interchangeable, fixed thermal-magnetic trip unit. Both the long-time (overload) and instantaneous (short-circuit) trip functions are factory set and cannot be adjusted in the field.
