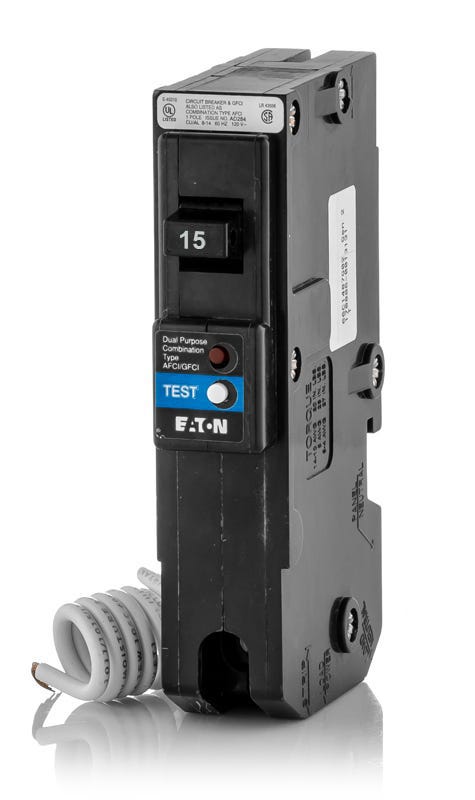

Eaton / Cutler-Hammer BRLAFGF115 Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer BRLAFGF115 - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Description
Part of the Type BR family, the Eaton BRLAFGF115 provides both combination arc-fault and Class A ground-fault protection in a single device. Built for residential applications, this 15A, 120V breaker ensures compliance with modern NEC requirements for kitchens, bathrooms, and bedrooms. It installs into standard Type BR panelboards and features a pigtail neutral connection. Rated at 10 kAIC, this short-body breaker includes self-test capabilities and LED diagnostic trip indicators.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRLAFGF115 |
| Series | BRLAFGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Short Body, Self-Test, Visual Trip Indicator |
Product FAQs
6 answersWhat load centers are compatible with the BRLAFGF115 circuit breaker?
This breaker is designed for use in Eaton Type BR load centers. It is also backward compatible with legacy Cutler-Hammer, Bryant, Westinghouse, and Challenger panels that are UL listed to accept Type BR breakers.
How do I wire the neutral connection for the BRLAFGF115?
This breaker features a pigtail neutral. You must connect the coiled white pigtail wire directly to the neutral bar in your load center, and connect the circuit's load neutral wire to the breaker's load neutral lug.
What level of ground fault protection does the BRLAFGF115 provide?
This dual function breaker provides Class A ground fault protection, which is designed to trip when it detects a ground fault current of 5mA. It also provides combination type arc fault protection.
Does the BRLAFGF115 have diagnostic indicators for troubleshooting?
Yes, this breaker includes LED diagnostic trip indicators. If the breaker trips, the LEDs will display a specific code to help you identify whether the fault was caused by an arc fault, a ground fault, or a standard thermal-magnetic overload.
What is the difference between the BRLAFGF115 and the BRP115DF?
The BRLAFGF115 uses a pigtail wire that must be manually connected to the neutral bar. The BRP115DF is the Plug-On Neutral (PON) version, which connects directly to the neutral bus in compatible Eaton PON load centers without requiring a pigtail wire.
How does the short body design of the BRLAFGF115 impact installation?
The BRLAFGF115 features Eaton's redesigned short body configuration. This compact footprint provides maximum gutter space within the load center, making wire routing easier and allowing the breaker to operate at cooler temperatures.
