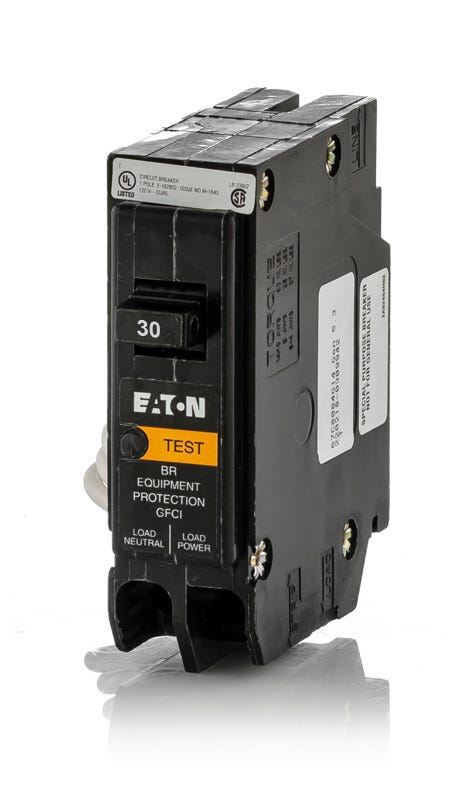

Eaton / Cutler-Hammer BRN130EP GFEP Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Quantity
Eaton / Cutler-Hammer BRN130EP - 30A GFEP Miniature Circuit Breaker
New
Quantity
Description
Built to handle heavier loads, this 30-amp equipment protection device delivers a 30mA ground fault trip sensitivity. It is calibrated to safeguard machinery and heat trace systems from damaging low-level faults. The breaker mounts into Eaton Type BR load centers utilizing a standard plug-on configuration. It includes a pigtail neutral connection to complete the circuit monitoring loop. Featuring a compact short-body footprint, it maximizes wiring room inside the panel.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRN130EP |
| Series | BRN |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BRN |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 1053, CSA C22.2 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | Short Body, Visual Trip Indicator, Self-Test, Trip-to-Center, HACR Rated |
Product FAQs
5 answersWhat load centers are compatible with the BRN130EP?
This breaker is designed for use in Eaton, Cutler-Hammer, and Bryant Type BR load centers that accept plug-on breakers.
What is the ground fault trip threshold for the BRN130EP?
As a Ground Fault Equipment Protector (GFEP), it features a 30mA trip sensitivity. This is designed to protect equipment like heat trace cables and machinery, rather than providing the 5mA personnel protection of a Class A GFCI.
How is the neutral connection made on the BRN130EP?
This breaker includes a pigtail neutral wire that must be connected directly to the neutral bus bar in the load center to complete the ground fault monitoring circuit.
What is the difference between this GFEP breaker and a standard GFCI?
A GFEP (Ground Fault Equipment Protector) trips at a 30mA threshold to prevent damage to equipment from low-level faults. A standard Class A GFCI trips at 5mA to protect personnel from electric shock.
What is the advantage of the BRN frame design?
The BRN frame features a compact, short-body design. This smaller footprint maximizes gutter space inside the load center, making it easier to route and manage wires during installation.
