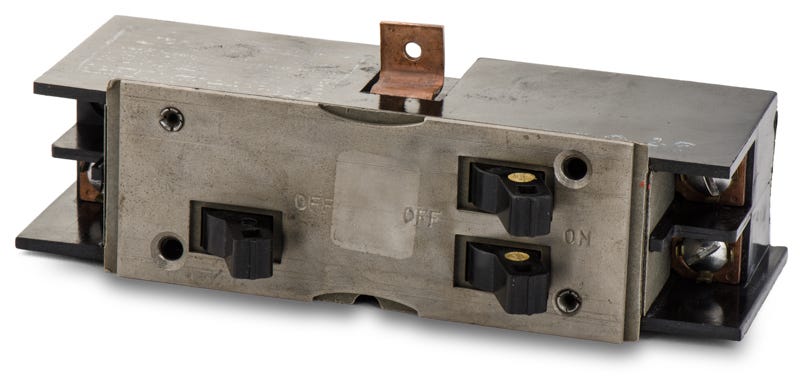

Federal Pacific 270111 NA115 - 15A 1 Pole Molded Case Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Federal Pacific NA115 - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built for residential and commercial lighting circuits, this 15-amp single-pole breaker provides essential overload and short-circuit defense. It features a switching duty classification, making it suitable for controlling fluorescent lighting loads. Installation into vintage Federal Pacific Stab-Lok load centers requires no adapters. Users can also cross-reference the UBIF15N as a modern substitute. The unit delivers a 10kA interrupting rating at 120/240VAC and accepts 14-2 AWG wiring.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | 270111 |
| Series | NA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | NES |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489, CSA C22.2 No. 5 |
|---|---|
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | SWD Rated |
Product FAQs
5 answersWhat load centers accept the Federal Pacific 270111 circuit breaker?
This breaker is designed exclusively for legacy Federal Pacific Stab-Lok load centers. It features a plug-on connection that fits directly into the busbar without requiring aftermarket adapters.
What is the modern cross-reference for the Federal Pacific NA115?
The Connecticut Electric UBIF15N is a modern substitute for the NA115. Both breakers are fully interchangeable in Federal Pacific Stab-Lok enclosures.
Does the NA115 breaker require a full 1-inch space in the panel?
Yes, the NA series is a thick breaker profile that requires a full 1-inch space on the busbar. This distinguishes it from the half-inch thin NC series breakers.
Is the NA115 rated for switching fluorescent lighting loads?
Yes, this 15-amp breaker carries a Switching Duty (SWD) classification, making it suitable for controlling fluorescent lighting circuits on a regular basis.
Are there safety concerns associated with Federal Pacific Stab-Lok breakers?
Yes, legacy Federal Pacific Stab-Lok panels and breakers have documented safety issues, including a high failure rate to trip during overcurrent conditions. Many insurance companies require full panel replacement. Consult a licensed electrician to evaluate the safety of the existing enclosure.
