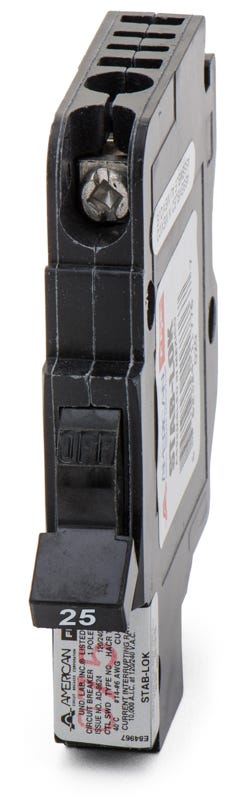

Federal Pacific NC025 Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
Federal Pacific
NC025
Miniature Circuit Breaker
Brand
Federal Pacific
SKU
NC025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

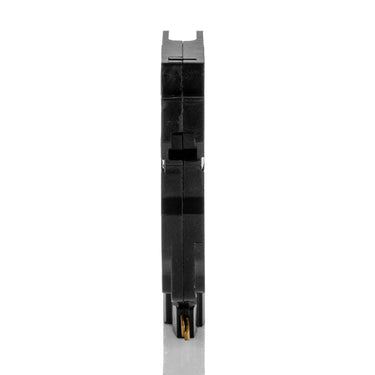

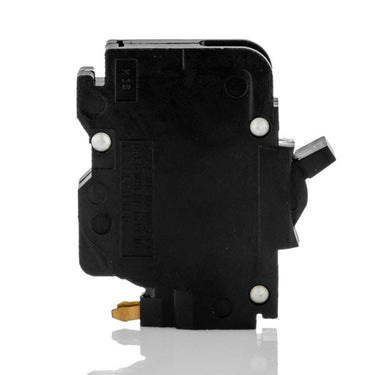

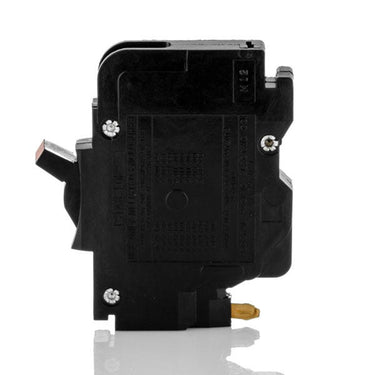

Federal Pacific NC025 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Federal Pacific NC025 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NC025 |
| Series | NC |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 inch per pole), Color Coded Handle |
Sold out
Quantity
Federal Pacific NC025 - 25A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NC025-R |
| Series | NC |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 inch per pole), Color Coded Handle |
Similar Items
15A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
Description
Built to maintain older electrical systems, the NC025 is a single-pole miniature circuit breaker designed for legacy Federal Pacific enclosures. It features the signature Stab-Lok mounting style, ensuring a precise fit into existing panelboards without the need for adapters. The ultra-thin half-inch wafer profile maximizes available space while delivering 25A of thermal-magnetic protection. Rated for 10kAIC at 120VAC, this component is fully cross-referenced to be replaced by the UBIF025N.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NC025 |
| Series | NC |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Stab-Lok Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Stab-Lok Design, Thin / Wafer Style (1/2 inch per pole), Color Coded Handle |
Product FAQs
7 answersWhich load centers are compatible with the Federal Pacific NC025?
The NC025 is designed exclusively for use in legacy Federal Pacific Electric (FPE) Stab-Lok load centers. It features the proprietary Stab-Lok plug-on mounting design and will not fit in standard panels from other manufacturers.
Is there a modern replacement available for the FPE NC025?
Yes, Connecticut Electric manufactures the UBIF025N, which serves as a direct, newly manufactured replacement for the legacy Federal Pacific NC025. It fits the same Stab-Lok enclosures and provides identical 25-amp, single-pole protection.
What is the physical footprint of the NC025 breaker?
The NC series breakers, including the NC025, feature a half-inch thin profile. This ultra-thin wafer design allows them to maximize space within the panelboard compared to standard one-inch thick NA series breakers.
Can I use an NC025 in place of an NA series breaker?
The NC025 is a half-inch thin breaker, whereas the NA series breakers are one-inch thick. While both use the Stab-Lok mounting design, replacing an NA breaker with an NC breaker requires verifying that the specific panel busbar configuration accepts thin breakers in that slot.
What wire sizes are accepted by the lugs on the NC025?
The terminal lugs on this breaker accept copper or aluminum conductors ranging from 14 AWG to 6 AWG. Always ensure proper torque specifications are met during installation to prevent loose connections.
How does the trip mechanism function on the NC025?
The NC025 utilizes a fixed thermal-magnetic trip unit. The thermal component provides long-time protection against sustained overloads, while the magnetic component delivers instantaneous protection against short circuits.
Are there safety concerns associated with legacy Federal Pacific Stab-Lok panels?
Yes. Legacy FPE Stab-Lok panels and breakers have a documented history of failing to trip during overcurrent conditions and experiencing loose busbar connections. Many home inspectors and licensed electricians recommend upgrading the entire panel rather than replacing individual breakers.
