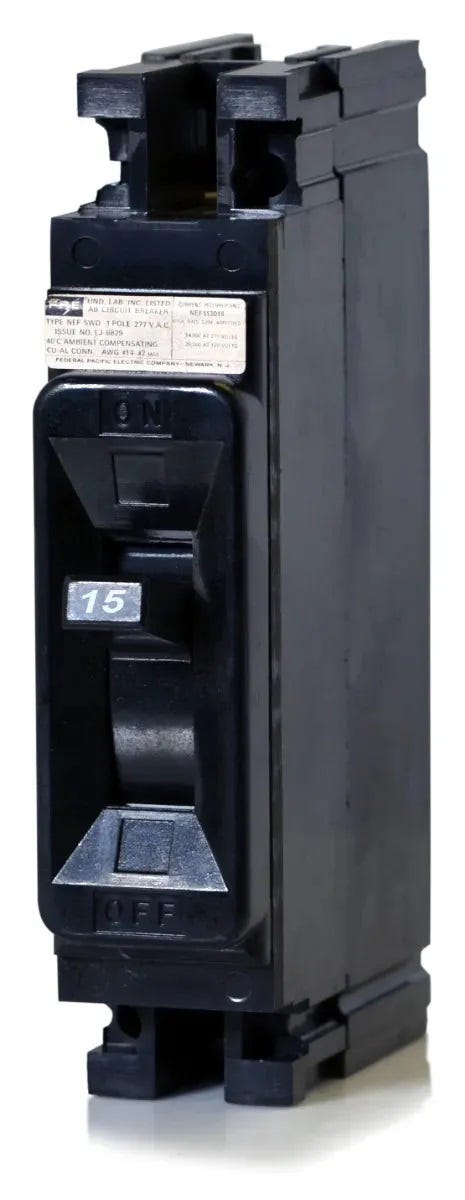

Federal Pacific NEF111015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Federal Pacific
NEF111015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF111015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF111015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Serving as a reliable replacement for aging infrastructure, the Federal Pacific NEF111015 is a 1-pole, 15A molded case circuit breaker. It is designed to handle 120VAC commercial loads with proven thermal-magnetic trip technology. The bolt-on configuration ensures a solid, secure connection when mounted into compatible Federal Pacific panelboards. By utilizing an exact replacement, facility managers can maintain their current enclosures. It provides a 14 kAIC interrupt rating at 120VAC.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF111015-R |
| Series | NEF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Reverse Feed, Vibration Tested |
Product FAQs
6 answersWhich panelboards are compatible with the NEF111015 circuit breaker?
This breaker is designed exclusively for legacy Federal Pacific Electric (FPE) panelboards that accept N-Frame bolt-on breakers. It allows electricians to maintain existing enclosures without a complete system retrofit.
What are the wiring capabilities for the NEF111015 lugs?
The factory-installed lugs accommodate wire gauges from 14 AWG up to 2 AWG. Installers must ensure proper torque is applied to both the bolt-on bus connections and the terminal lugs to prevent thermal issues under load.
Does the NEF111015 carry SWD and HACR ratings?
Yes, this breaker is SWD (Switching Duty) rated for controlling 120VAC fluorescent lighting circuits. It is also HACR rated, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Can the NEF111015 be utilized in DC circuits?
Yes, in addition to its standard 120VAC rating, this breaker is rated for up to 125VDC. This makes it suitable for specific control panels, battery systems, or industrial DC applications requiring a 15A 1-pole breaker.
Can the NEF111015 be installed in a reverse feed configuration?
Yes, this molded case circuit breaker is reverse feed capable. It can be safely back-fed when used in specific panelboard configurations, provided the installation meets current electrical codes.
Is the NEF111015 interchangeable with Federal Pioneer breakers?
Yes. Federal Pacific and Federal Pioneer share the exact same NEF frame architecture. This unit is a direct replacement for aging Federal Pioneer NEF111015 breakers.
