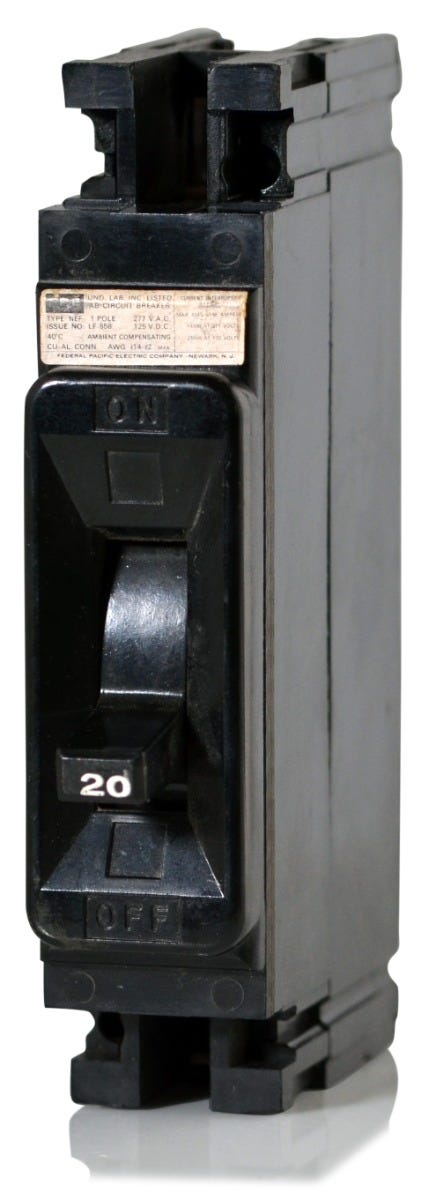

Federal Pacific NEF111020 Molded Case Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Federal Pacific
NEF111020
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF111020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF111020 - 20A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
15A 1 Pole Molded Case Circuit Breaker
Description
A drop-in solution for aging electrical systems, the Federal Pacific NEF111020 is a 1-pole, 20A molded case circuit breaker. It provides essential long-time and instantaneous trip functions for commercial environments. This legacy N-Frame component bolts securely into Federal Pacific NEF panelboards, offering an exact replacement without retrofitting. Serving as an equivalent to the UBIF20N, it delivers a 14 kAIC rating at 120VAC and is fully HACR and SWD rated for switching applications.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF111020-R |
| Series | NEF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested, SWD Rated |
Product FAQs
7 answersWhich panelboards accept the Federal Pacific NEF111020?
This N-frame molded case circuit breaker is engineered specifically for bolt-on installation in legacy Federal Pacific NEF commercial panelboards. It is not compatible with residential Stab-Lok load centers.
What type of mounting connection does this breaker require?
The NEF111020 utilizes a bolt-on mounting configuration, which provides a secure, vibration-resistant connection to the panelboard busbar compared to standard plug-in designs.
What are the wire gauge requirements for the terminal lugs?
The load-side lugs on this 20A breaker accommodate wire sizes ranging from 14 AWG up to 2 AWG. Always verify local electrical codes for proper conductor sizing based on the 20A rating.
What is a direct aftermarket replacement for the NEF111020?
The UBIF20N is a verified equivalent substitute for this legacy N-frame breaker, offering the same physical dimensions and electrical ratings for NEF panelboards.
Are the trip settings on the NEF111020 adjustable?
No. This breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous (LI) trip functions are factory-calibrated and non-interchangeable.
Is the NEF111020 suitable for HVAC equipment and lighting circuits?
Yes. This breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. It is also SWD (Switching Duty) rated for switching 120V fluorescent lighting loads.
Can the NEF111020 be used in reverse feed applications?
Yes. This breaker is rated for reverse feed setups, allowing it to be back-fed safely when required by the specific panelboard or circuit design.
