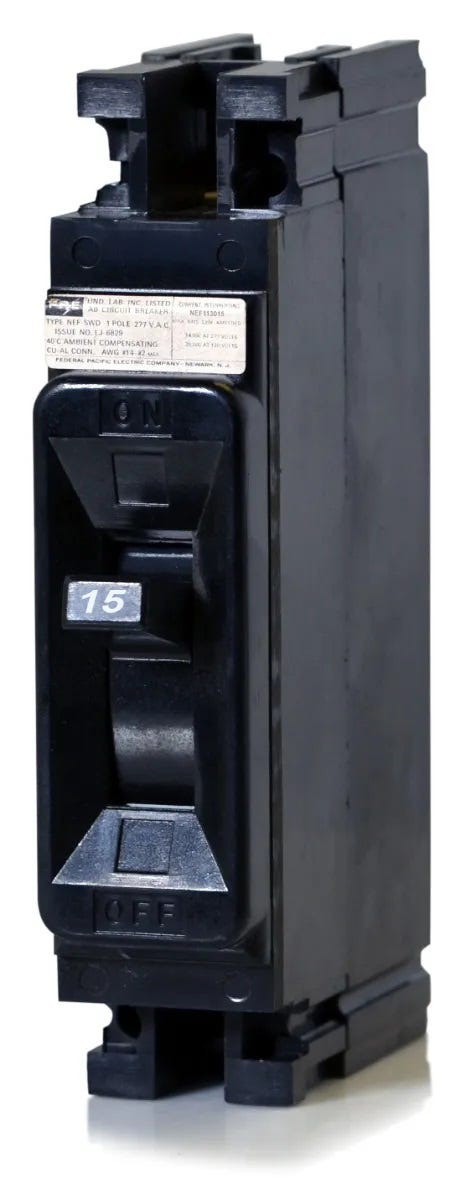

Federal Pacific NEF113015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Federal Pacific
NEF113015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF113015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF113015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for aging electrical systems, the Federal Pacific NEF113015 is a 15A, single-pole molded case circuit breaker. It is built specifically for commercial and industrial applications requiring reliable thermal-magnetic protection. This bolt-on MCCB installs into legacy Federal Pacific panelboards, eliminating the need for complex retrofits. It features a non-interchangeable trip unit and includes load-side lugs. Rated 25kAIC at 120VAC, it is HACR rated and vibration tested.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF113015-R |
| Series | NEF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed, Vibration Tested, HACR Rated, SWD Rated |
Product FAQs
6 answersIs the Federal Pacific NEF113015 still in active production?
Federal Pacific Electric is no longer in business, meaning original OEM production has ceased. Facilities relying on legacy FPE panelboards typically source verified aftermarket replacements or surplus stock to maintain their electrical distribution systems without a complete retrofit.
Is the NEF113015 compatible with residential Stab-Lok panels?
No. The NEF series consists of commercial and industrial N-Frame molded case circuit breakers with a bolt-on connection. They will not fit in residential Stab-Lok load centers, which require specific plug-on breakers.
What is the mounting process for the NEF113015 in a panelboard?
This breaker utilizes a bolt-on connection to secure directly to the panelboard bus. Depending on the specific legacy Federal Pacific panelboard, such as a CDP series, dedicated bus connection hardware kits may be required for proper installation.
How does the thermal-magnetic trip unit operate on this breaker?
The NEF113015 utilizes a fixed thermal-magnetic trip mechanism with long-time and instantaneous (LI) functions. The thermal component responds to prolonged overloads, while the magnetic component provides immediate tripping during severe short circuits.
What wire sizes are supported by the load lugs on the NEF113015?
The factory-installed load lugs accommodate wire gauges from 14 AWG up to 2 AWG. Installers must verify that the selected conductor size aligns with the 15-amp rating and local electrical codes.
Can the NEF113015 be used in both AC and DC applications?
Yes, this breaker is rated for both alternating current and direct current systems. It supports up to 120V AC and 125V DC, allowing integration into various legacy industrial control and distribution circuits.
