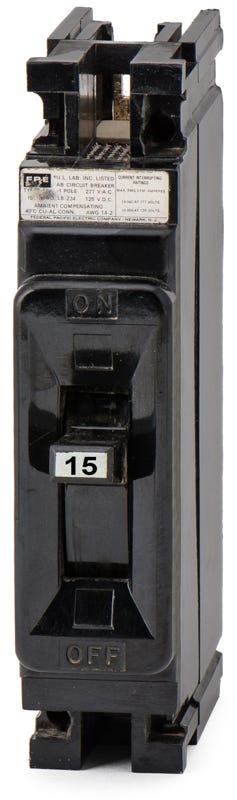

Federal Pacific NEF214015 Molded Case Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Federal Pacific
NEF214015
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEF214015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEF214015 - 15A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Part of the legacy N-Frame family, the Federal Pacific NEF214015 delivers reliable 15-amp overcurrent protection for commercial environments. This single-pole thermal-magnetic breaker features a non-interchangeable trip unit and is suitable for reverse feed applications. It installs seamlessly into discontinued Federal Pacific NEF panelboards, eliminating the need for complex retrofits. The breaker provides a 14 kAIC rating at 277VAC and 25 kAIC at 120VAC for dependable fault interruption.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEF214015-R |
| Series | NEF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 25kA @ 120VAC, 14kA @ 277VAC |
| Frame Type | NEF |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NEF Panelboards |
| Wire Gauge | 14-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed Suitable, Vibration Tested, SWD Rated |
Product FAQs
8 answersIs the NEF214015 part of the N-Frame family?
Yes, this breaker belongs to the legacy Federal Pacific N-Frame family. It is specifically designed to install seamlessly into discontinued NEF panelboards without requiring complex retrofits.
Can the NEF214015 be used in DC applications?
Yes, in addition to its AC ratings, this breaker is rated for up to 125VDC, making it suitable for specific direct current control circuits or systems.
Is this breaker suitable for switching fluorescent lighting loads?
Yes, the NEF214015 is SWD (Switching Duty) rated, meaning it can be safely used to switch 120V or 277V fluorescent lighting circuits on and off on a regular basis.
Is the NEF214015 suitable for reverse feed applications?
Yes, this breaker is reverse feed suitable, allowing it to be back-fed in compatible panelboard configurations where the supply power enters through the breaker.
What type of terminals are included on the NEF214015?
The breaker is equipped with standard mechanical lugs designed to accept 14 to 2 AWG conductors. Electricians must ensure proper torque is applied during installation to maintain a secure connection.
What accessories are available for the NEF214015?
Available options for this N-Frame breaker include shunt trips, auxiliary switches, undervoltage releases, and bell alarms to support advanced control and monitoring requirements.
Can the trip curve be adjusted on the NEF214015?
No, this breaker features a fixed, non-interchangeable thermal-magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be modified in the field.
What safety and testing standards does this breaker meet?
The NEF214015 is vibration tested and meets UL 489, NEMA AB 1, and CSA C22.2 No. 5.1 standards for molded case circuit breakers.
