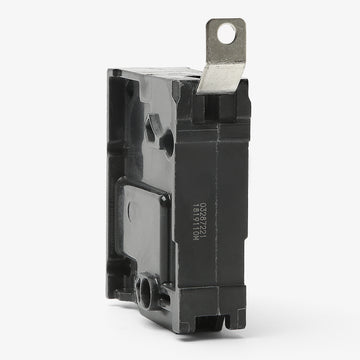

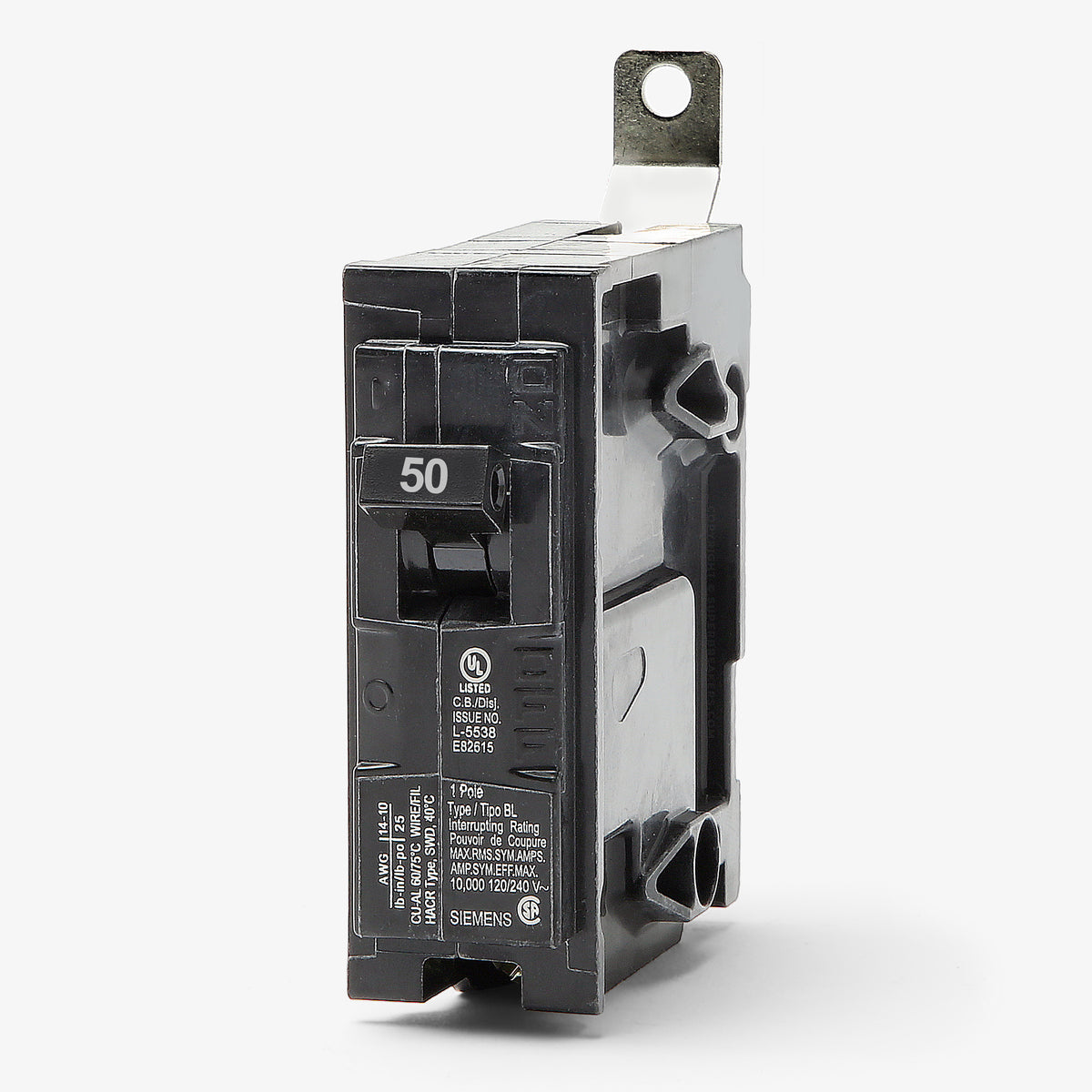

Siemens B150H Miniature Circuit Breaker
- 50A
- 1 Pole

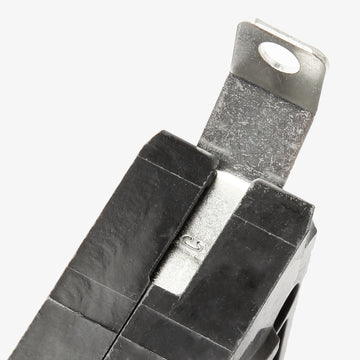

- Bolt-On
Quantity
Siemens B150H - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Siemens B150H - 50A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B150H |
| Series | BL |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Quantity
Siemens B150H - 50A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | B150H-R |
| Series | BL |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Description
Part of the BL series, this 50A single-pole breaker is built for commercial and industrial applications. It provides essential long-time and instantaneous trip functions to handle overloads and short circuits. Designed with a bolt-on mounting style, the unit installs into Siemens P1 through P5 panelboards. It accepts 8-6 AWG copper or 8-4 AWG aluminum wiring via standard lug terminals. Rated for 120/240VAC systems, it features a robust 22kAIC interrupting capacity and is HACR rated.Specifications
| Brand | Siemens |
|---|---|
| Part Number | B150H-R |
| Series | BL |
| Amperage | 50A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 8-6 AWG (Cu), 8-4 AWG (Al) |
| Max Wire | 6 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Handle Tie |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
4 answersWhich panelboards are compatible with the Siemens B150H circuit breaker?
This bolt-on breaker is designed for use in Siemens P1, P2, P3, P4, and P5 panelboards.
What does the H in the B150H catalog number indicate?
The H designates a high interrupting rating. The B150H is rated at 22kAIC, whereas the standard B150 model is rated at 10kAIC.
Can the Siemens B150H replace older I-T-E or Gould breakers?
Yes. Siemens acquired I-T-E and Gould, making the B150H a direct replacement for legacy I-T-E and Gould BLH or B150H breakers with the same specifications.

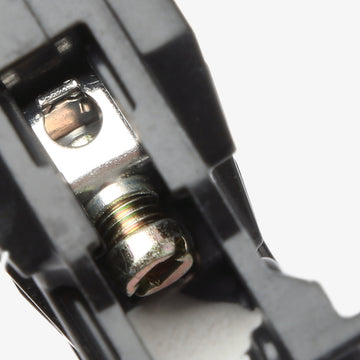

What are the conductor size limits for the B150H terminal lugs?
The terminal lugs accommodate 8 to 6 AWG copper conductors or 8 to 4 AWG aluminum conductors.
