Siemens Q115DFN Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Siemens
Q115DFN
Dual Function Miniature Circuit Breaker
Brand
Siemens
SKU
Q115DFN
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

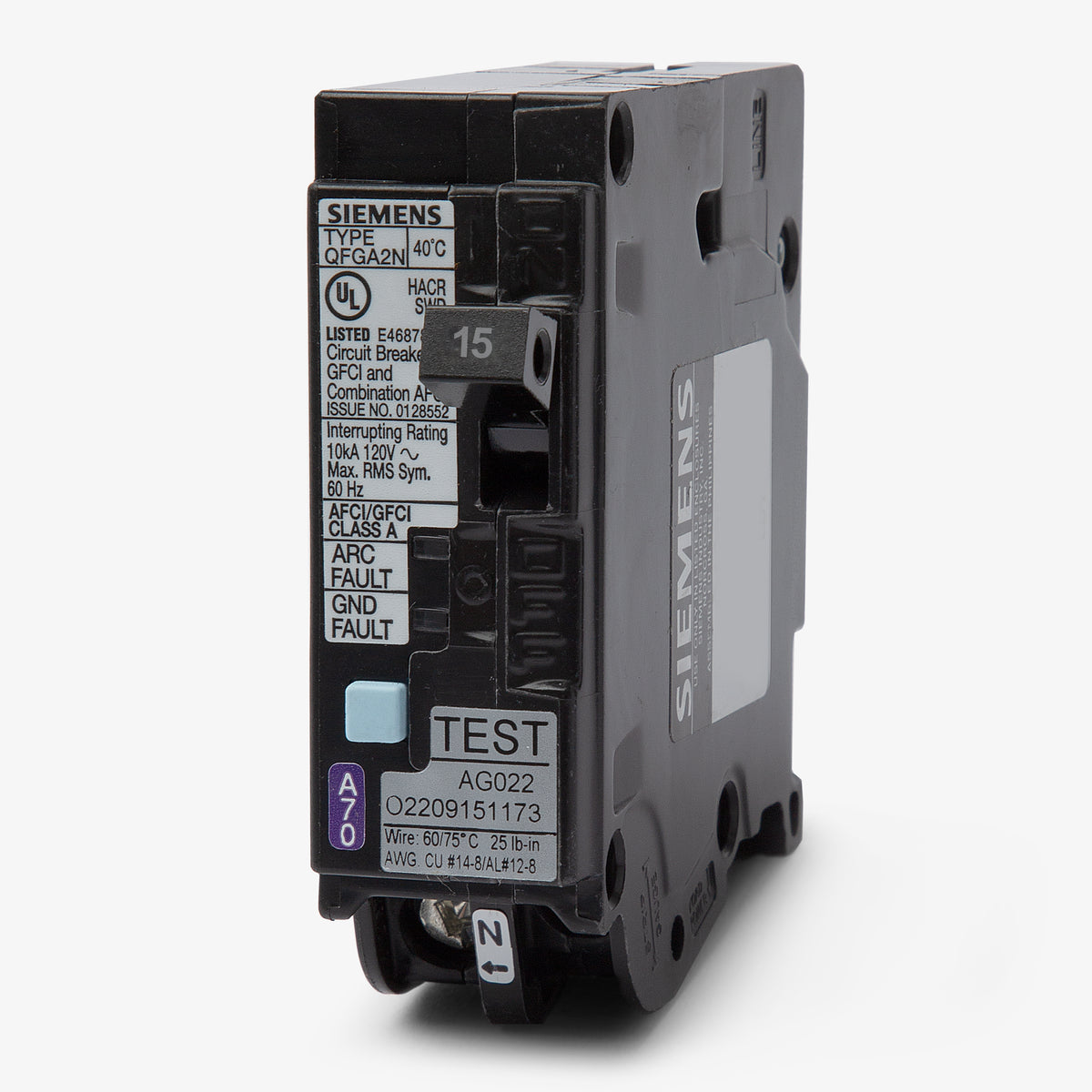

Siemens Q115DFN - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
20A Dual Function Miniature Circuit Breaker
15A Dual Function Miniature Circuit Breaker
Description
Streamlining residential installations, this 15-amp dual function model features a plug-on neutral connection that completely eliminates pigtail wiring. It provides mandatory combination AFCI and GFCI coverage for areas like kitchens and laundry rooms. The device mounts exclusively into Siemens Plug-On Neutral (PON) load centers for a cleaner, faster gutter installation. Insta-Wire connectors and built-in self-testing capabilities further reduce contractor labor time on the job site.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q115DFN |
| Series | Q |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Standards | HACR, SWD, UL 1699, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Insta-Wire, Self-Test, Visual Trip Indicator |
Product FAQs
8 answersWhich load centers accept the Q115DFN?
This breaker requires a Siemens Plug-On Neutral (PON) load center. It cannot be installed in older panels that require a pigtail connection for the neutral.
What is the pigtail equivalent of the Q115DFN?
The Siemens Q115DF is the pigtail version, designed for use in standard Siemens panels that lack a plug-on neutral bar.
What does the dual function designation indicate?
It combines Class A 5mA Ground Fault Circuit Interrupter (GFCI) and Combination Type Arc Fault Circuit Interrupter (AFCI) protection into a single device to meet NEC requirements for kitchen and laundry circuits.
What is the terminal tightening torque for the Q115DFN?
Siemens specifies a tightening torque of 25 lb-in for the load terminals.

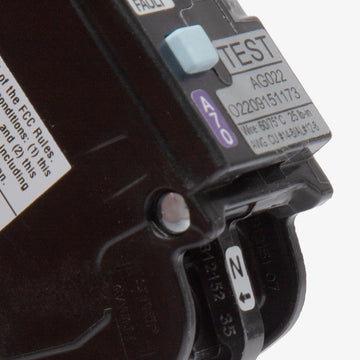

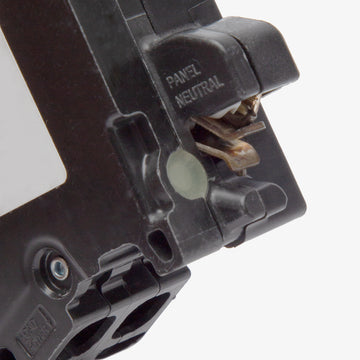

How does the plug-on neutral feature affect installation?
The breaker connects directly to the neutral bar in a compatible Siemens PON panel, eliminating the need to route and terminate a separate neutral pigtail.
Does the Q115DFN include a self-test feature?
Yes, it automatically and continuously tests itself to ensure the AFCI and GFCI functions are operating correctly. If a failure is detected, the breaker will trip and the LED indicators will blink.
How do the LED indicators function on this breaker?
The LEDs help diagnose the cause of a trip by indicating whether the circuit was interrupted due to an arc fault, a ground fault, or a standard overload.
Which padlocking device is compatible with the Q115DFN?
Use the Siemens ECPLD1 padlocking device for 1-pole breakers in this series.
