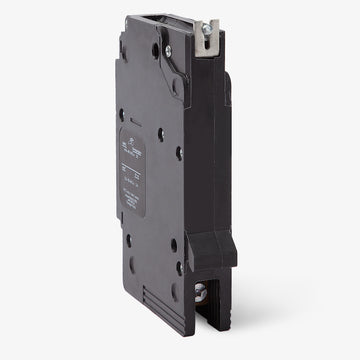

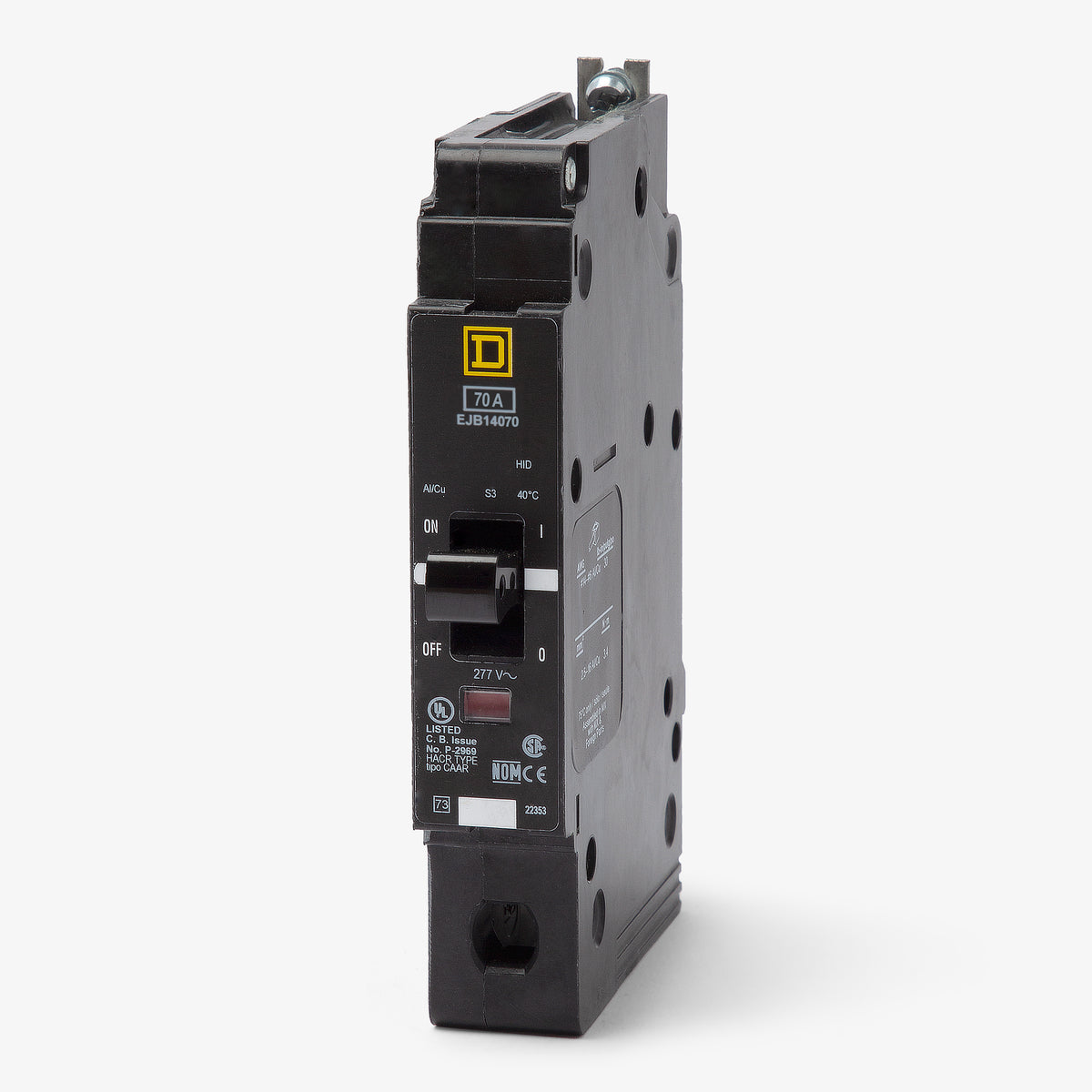

Square D EJB14070 Miniature Circuit Breaker
- 70A
- 1 Pole
- Bolt-On
Square D
EJB14070
Miniature Circuit Breaker
Brand
Square D
SKU
EJB14070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D EJB14070 - 70A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
30A 1 Pole Miniature Circuit Breaker
25A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Belonging to Square D's E-Frame series, the EJB14070 is a 1-pole, 70A miniature circuit breaker built for commercial and industrial power distribution. It installs into NF panelboards using a secure bolt-on connection, ensuring stable performance in demanding environments. Featuring fixed thermal-magnetic trip technology, this breaker provides reliable overload and short-circuit protection with a high 100kAIC rating at 120VAC and includes the Visi-Trip indicator for quick fault identification.Specifications
| Brand | Square D |
|---|---|
| Part Number | EJB14070 |
| Series | EJB |
| Amperage | 70A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120VAC, 65kA @ 240VAC, 65kA @ 277VAC |
| Frame Type | EJB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D NF Panelboards |
| Wire Gauge | 12-2/0 AWG (Al), 14-2/0 AWG (Cu) |
| Max Wire | 2/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Standard Aluminum Lugs |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, NFPA 70, UL 489 |
| Approval | CSA, cULus, HACR, NOM, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
7 answersWhat panelboards are compatible with the EJB14070 circuit breaker?
The EJB14070 is a bolt-on E-frame breaker designed specifically for use in Square D NF series panelboards.
Can the EJB14070 replace an EDB14070 or EGB14070 breaker?
Yes. The EJB14070 shares the same physical dimensions and mounting style as EDB and EGB breakers, but offers a higher interrupting rating. It can be used as a direct replacement or upgrade in NF panelboards where higher fault current protection is required.
What does the J in the EJB14070 part number indicate?
In the Square D E-frame family, the middle letter designates the interrupting rating tier. The J indicates the extra high interrupting rating tier, providing up to 65kA at 277V and 100kA at 120V, which is higher than the standard EDB and high EGB tiers.
What are the lug torque specifications for the EJB14070?
The tightening torque depends on the wire size used. For 14 to 10 AWG wire, torque the lugs to 34.5 lb-in. For 8 to 2/0 AWG wire, torque the lugs to 49.6 lb-in.

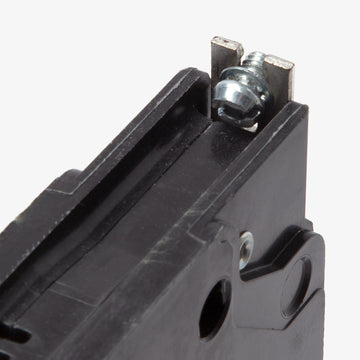

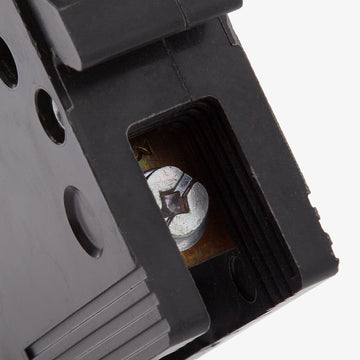

What wire sizes and materials are accepted by the EJB14070 terminals?
The factory installed lugs accept 14 AWG to 2/0 AWG copper wire, or 12 AWG to 2/0 AWG aluminum wire.
What does the LI trip function on the EJB14070 mean?
LI stands for Long-Time and Instantaneous trip functions. Long-Time provides overload protection by tripping on sustained overcurrents, while Instantaneous provides short-circuit protection by tripping immediately during a high fault current.
Does the EJB14070 include ground fault or arc fault protection?
No. The EJB14070 is a standard thermal magnetic breaker with long-time and instantaneous trip functions. It does not provide GFCI or AFCI protection.
