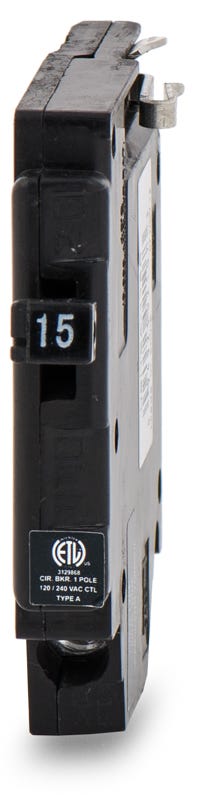

Eaton / Crouse-Hinds TBA115 UBI - 15A 1 Pole Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Quantity
Eaton / Crouse-Hinds UBITBA115 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Crouse-Hinds UBITBA115 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Crouse-Hinds |
|---|---|
| Part Number | TBA115-R |
| Series | UBITBA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type A Load Centers, Crouse-Hinds Type MH Load Centers, Murray Type MP Load Centers, Thomas & Betts Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | ETL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Thin/Wafer Design |
Quantity
Eaton / Crouse-Hinds UBITBA115 - 15A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Crouse-Hinds |
|---|---|
| Part Number | TBA115-R |
| Series | UBITBA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type A Load Centers, Crouse-Hinds Type MH Load Centers, Murray Type MP Load Centers, Thomas & Betts Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | ETL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Thin/Wafer Design |
Description
Built for residential load centers requiring high-density circuit configurations, this 15-amp single-pole component utilizes a slim half-inch form factor. The thermal-magnetic mechanism ensures consistent response to overcurrent events on standard branch wiring. Electricians rely on this classified model to fit Challenger, Crouse-Hinds MH, Murray MP, and Thomas & Betts enclosures. It seamlessly replaces legacy A115 and MH115 units during panel maintenance.Specifications
| Brand | Eaton / Crouse-Hinds |
|---|---|
| Part Number | TBA115-R |
| Series | UBITBA |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Challenger Type A Load Centers, Crouse-Hinds Type MH Load Centers, Murray Type MP Load Centers, Thomas & Betts Type A Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Standards | UL 489 |
|---|---|
| Approval | ETL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Thin/Wafer Design |
Product FAQs
7 answersWhich load centers are approved for use with the UBITBA115?
This UL Classified breaker is approved for installation in Challenger Type A, Crouse-Hinds Type MH, Murray Type MP, and Thomas & Betts Type A load centers.
Which legacy circuit breakers does the TBA115 replace?
This classified breaker serves as a direct replacement for legacy A115 and MH115 15-amp, single-pole units.
What is the physical width of the TBA115 breaker?
It features a thin half-inch form factor, allowing for high-density circuit configurations in compatible residential load centers.
What wire sizes are accepted by the box lugs on the UBITBA115?
The terminal lugs are designed to accept wire gauges ranging from 14 AWG to 4 AWG.
Is the UBITBA115 rated for switching duty (SWD)?
Yes, this breaker is SWD rated, meaning it is approved for the regular switching of 120V fluorescent lighting circuits.
Is this breaker HACR rated for HVAC applications?
Yes, it carries an HACR rating, making it suitable for heating, air conditioning, and refrigeration equipment requiring approved overcurrent protection.
Does the TBA115 include AFCI or GFCI protection?
No, this is a standard thermal-magnetic breaker providing long-time and instantaneous trip functions for overload and short-circuit protection. It does not provide arc fault or ground fault protection.
