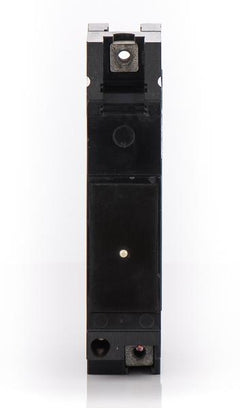

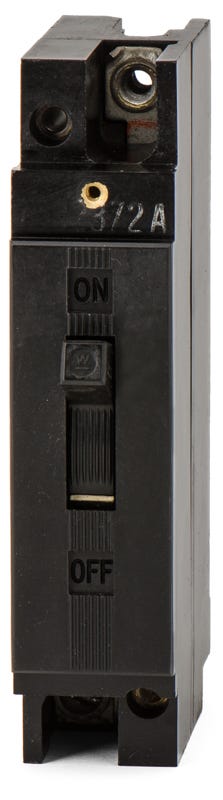

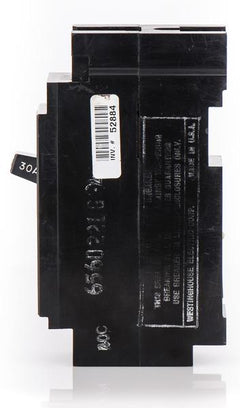

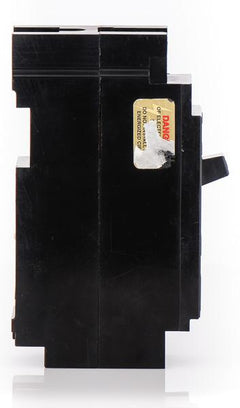

Eaton / Westinghouse EA1030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Eaton / Westinghouse
EA1030
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EA1030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EA1030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
15A 1 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
Description
Maintaining older electrical systems requires exact-fit components like the Eaton EA1030. This 30A, 1-pole molded case circuit breaker delivers fixed thermal-magnetic protection for commercial 120VAC applications. Engineered for compatibility, it bolts securely into legacy Westinghouse CDP and FDP panelboards. It serves as a direct substitute for the EHD1030, avoiding the need for retrofit kits.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EA1030-R |
| Series | EA |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse CDP Panelboards, Westinghouse FDP Panelboards, Eaton Pow-R-Line 3 Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich panelboards are compatible with the EA1030 circuit breaker?
This breaker bolts directly into legacy Westinghouse CDP and FDP panelboards, as well as Eaton Pow-R-Line 3 panelboards.
What wire sizes do the lugs on the EA1030 accept?
The factory lugs on this breaker accommodate wire sizes ranging from 14 AWG to 1/0 AWG.
Can the EA1030 be used in DC electrical systems?
Yes, this thermal magnetic breaker is rated for DC applications up to 125VDC with an interrupting capacity of 5kAIC.
Can the EA1030 be used to replace an EHD1030 breaker?
Yes, the EA1030 serves as a direct substitute for the EHD1030 in compatible panelboards, avoiding the need for retrofit kits.
What type of connection does the EA1030 require?
This breaker features a bolt-on connection, meaning it must be securely bolted directly to the panelboard bus rather than snapping into place.
Are the trip settings on the EA1030 adjustable?
No, this breaker features fixed thermal and fixed magnetic trip functions. The long-time and instantaneous trip points cannot be adjusted in the field.
What frame size is the EA1030 built on?
This breaker is part of the legacy Westinghouse E Frame group.
