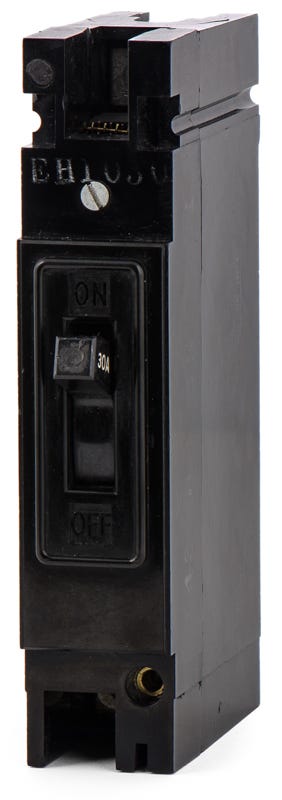

Eaton / Westinghouse EH1030 Molded Case Circuit Breaker
- 30A
- 1 Pole
- Bolt-On
Quantity

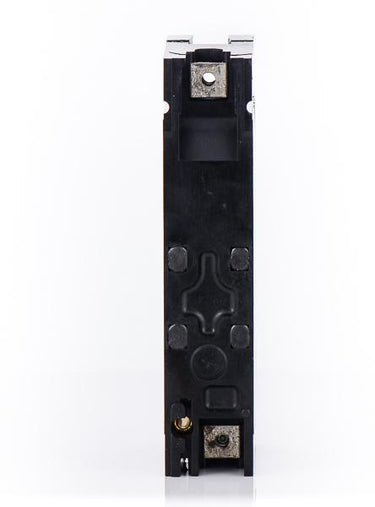

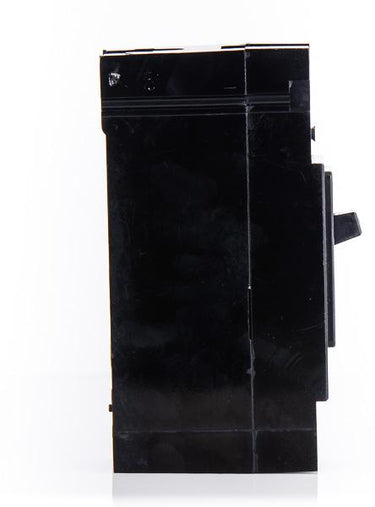

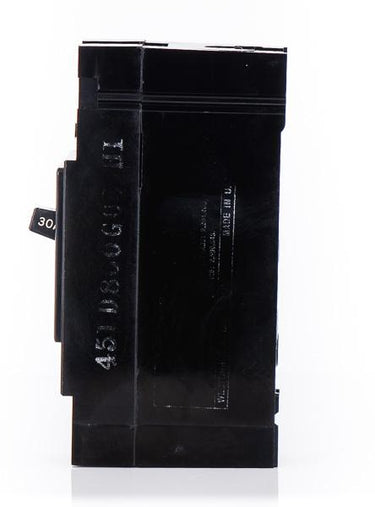

Eaton / Westinghouse EH1030 - 30A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Designed specifically for legacy installations, the Eaton EH1030 functions as a 30-amp, single-pole molded case circuit breaker. It offers reliable LI (long-time and instantaneous) protection with a 14kAIC rating at 277VAC. This bolt-on unit is engineered to fit perfectly into discontinued Westinghouse and Eaton NEHB panelboards. By serving as an exact substitute for EHB1030 and EHD1030 breakers, it allows facility managers to maintain existing infrastructure without costly panel upgrades.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EH1030-R |
| Series | EH |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 277VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 14kA @ 277VAC, 10kA @ 125VDC |
| Frame Type | EH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse NEHB Panelboards, Eaton NEHB Panelboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhat panelboards are compatible with the EH1030 circuit breaker?
This bolt-on breaker is designed specifically for use in legacy Westinghouse and Eaton NEHB panelboards.
Can the EH1030 replace older EHB1030 breakers?
Yes, the EH1030 serves as an exact substitute for discontinued EHB1030 circuit breakers. This allows you to maintain existing NEHB panelboards without requiring a full panel upgrade.
Are Eaton, Cutler-Hammer, and Westinghouse EH1030 breakers interchangeable?
Yes. Eaton acquired the distribution equipment division of Westinghouse, so EH frame breakers branded as Westinghouse, Cutler-Hammer, or Eaton are identical and fully interchangeable.
Can the EH1030 be used in DC applications?
Yes, this thermal magnetic breaker is rated for 125VDC systems with a 10kAIC interrupting capacity, in addition to its standard 277VAC rating.
