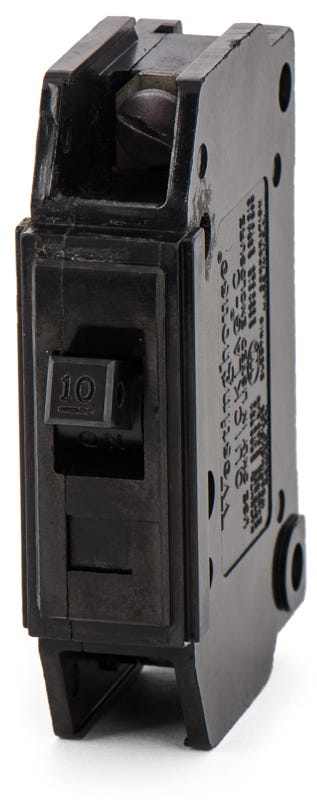

Eaton / Westinghouse QC1010 Miniature Circuit Breaker
- 10A
- 1 Pole
- Panel Mount
Quantity
Eaton / Westinghouse QC1010 - 10A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Westinghouse QC1010 - 10A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | QC1010-R |
| Series | QC |
| Amperage | 10A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 10kA @ 48VDC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | OEM Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Quantity
Eaton / Westinghouse QC1010 - 10A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Westinghouse |
|---|---|
| Series | QC |
| Amperage | 10A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 10kA @ 48VDC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | OEM Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Description
Ideal for specialized OEM control panels, this single-pole 10A breaker offers robust thermal-magnetic protection for commercial and industrial applications. The Quicklag series device ensures stable performance across both AC and DC voltage systems. Featuring a convenient cable-in/cable-out mounting style, it integrates into custom enclosures or fastens onto standard DIN rails using an optional adapter. This SWD and HACR-rated component safely switches fluorescent lighting and HVAC loads.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | QC1010-R |
| Series | QC |
| Amperage | 10A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 10kA @ 48VDC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | OEM Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
5 answersHow is the QC1010 circuit breaker mounted?
This is a cable-in/cable-out (feed-thru) breaker. It mounts directly to a panel backplate or enclosure, rather than plugging or bolting onto a busbar. It can also be mounted to a standard 35mm DIN rail using the Eaton QCDINADAPT adapter.
Are Eaton, Cutler-Hammer, and Westinghouse QC1010 breakers the same?
Yes. Eaton acquired the Westinghouse distribution equipment business and Cutler-Hammer. The QC1010 is the exact same Quicklag miniature circuit breaker regardless of which of these three brands is printed on the label.
Is the QC1010 breaker HACR rated?
Yes, all Eaton Quicklag QC breakers from 10A to 100A are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the QC1010 be used in DC control circuits?
Yes. In addition to its standard AC ratings, this breaker is rated for up to 48V DC with a 10kA interrupting capacity, making it suitable for DC control panels and OEM enclosures.
What wire sizes are compatible with the QC1010 terminals?
The feed-thru screw and clamp terminals accept 14 AWG to 10 AWG copper or aluminum wire. Ensure conductors are properly stripped and seated within the clamp for secure panel wiring.
