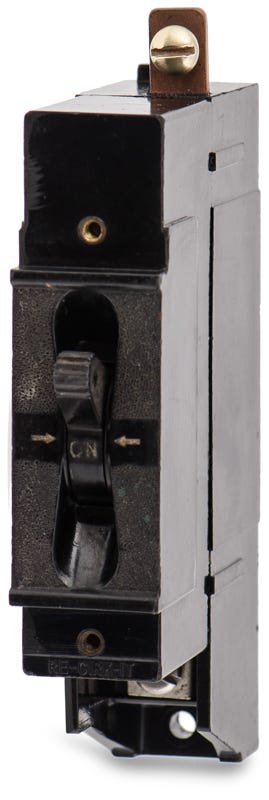

Eaton / Heinemann X0411 0.35A 1 Pole Molded Case Circuit Breaker
- 0.35A
- 1 Pole
- Panel Mount
Quantity
Eaton / Heinemann X0411 - 0.35A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the Heinemann AM series by Eaton, the X0411 is a 1-pole, 0.35A MCCB built for demanding environments. It is designed for integration into marine distribution systems and OEM control panels. Operating at 120VAC or 65VDC, this panel-mount breaker is easily replaced by the AM1-B2-0.35A substitute. Its compact footprint ensures a straightforward fit in custom configurations. Utilizing hydraulic-magnetic technology, it delivers precise LI protection unaffected by ambient temperature.Specifications
| Brand | Eaton / Heinemann |
|---|---|
| Part Number | X0411-R |
| Series | AM |
| Amperage | 0.35A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120VAC, 65VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 65VDC |
| Terminal Type | Screw/Clamp Terminal |
|---|---|
| For Use With | Marine Distribution Panels, OEM Control Panels |
| Trip Technology | Hydraulic Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Relay Trip |
|---|---|
| Accessories | Mounting Hardware, Lugs Not Included |
| Standards | CSA C22.2 No. 235, UL 1077 |
| Approval | CSA, UR |
| Temp Rating | -40C to 85C |
| Construction Features | Precision Tripping, Non-Standard/Custom Construction |
Product FAQs
6 answersIs there a direct replacement available for the Heinemann X0411 0.35A breaker?
Yes, the Eaton Heinemann X0411 0.35A model can be directly substituted with the AM1-B2-0.35A circuit breaker. Both units belong to the Heinemann AM series and share identical panel mounting dimensions and electrical characteristics.
What makes the X0411 suitable for marine distribution panels?
The breaker utilizes hydraulic-magnetic trip technology, which provides precise overcurrent protection that remains unaffected by extreme ambient temperature fluctuations often found in marine environments. Its compact panel mount design also allows for straightforward integration into tight OEM control spaces.
How is the X0411 circuit breaker wired and mounted within a control panel?
This unit requires a standard panel mount installation and features a feed-thru connection type. Wiring is secured using the integrated screw and clamp terminals, ensuring reliable continuity in high-vibration OEM or marine applications.
Does the X0411 breaker support both AC and DC control circuits?
Yes, it is dual-rated for both alternating and direct current applications. It safely interrupts faults up to 10kA at 120VAC and 5kA at 65VDC, making it versatile for mixed-voltage control panels.
Are the trip settings on the Heinemann X0411 adjustable?
No, the long-time and instantaneous (LI) trip functions on this hydraulic-magnetic breaker are fixed. The factory-calibrated settings provide consistent protection without the need for field adjustments.
Is the X0411 manufactured by Eaton or Heinemann?
Heinemann is a specialized product line owned by Eaton. The X0411 is part of the Eaton Heinemann AM series of molded case circuit breakers.
