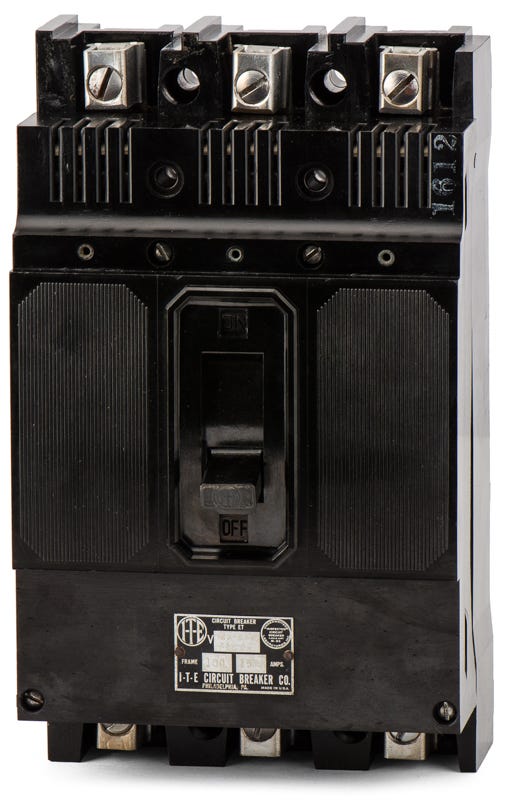

Siemens / ITE ET100-315 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Quantity
Siemens / ITE ET100-315 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Serving as an exact fit for commercial electrical systems, the ET100-315 delivers thermal-magnetic trip functions for 15A circuits up to 600VAC. It mounts into legacy ITE and Siemens F-Frame panelboards, making it an ideal solution for maintaining older infrastructure. While superseded by the F3B015 for new builds, this unit provides a seamless replacement. Rated at 25kAIC at 240VAC, it handles typical fault currents effectively and includes load side lugs for 14-10 AWG conductors.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | ET100-315-R |
| Series | ET |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 14kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | ITE / Siemens F-Frame Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | UL 489, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Standard Interrupting Capacity |
Product FAQs
6 answersWhat is the modern replacement for the legacy ET100-315?
The Siemens F3B015 serves as the direct replacement for the ET100-315 molded case circuit breaker.
What panelboards accept the ET100-315 breaker?
This unit-mount breaker is designed to fit into legacy ITE and Siemens F-Frame panelboards.
What are the wire gauge requirements for the ET100-315?
The included lugs accommodate 14 AWG to 10 AWG conductors, and are compatible with both copper and aluminum wiring.
Is the ET100-315 suitable for direct current systems?
Yes, it carries a DC rating of 250VDC with a 10kA interrupting capacity, making it suitable for specific direct current applications.
What is the mounting configuration for this circuit breaker?
The ET100-315 utilizes a unit-mount design, requiring it to be bolted directly to the chassis or mounting pan of the panelboard.
What type of protection does the fixed LI trip unit provide?
The thermal-magnetic trip unit delivers long-time (L) protection against sustained overloads and instantaneous (I) protection against short circuits.
