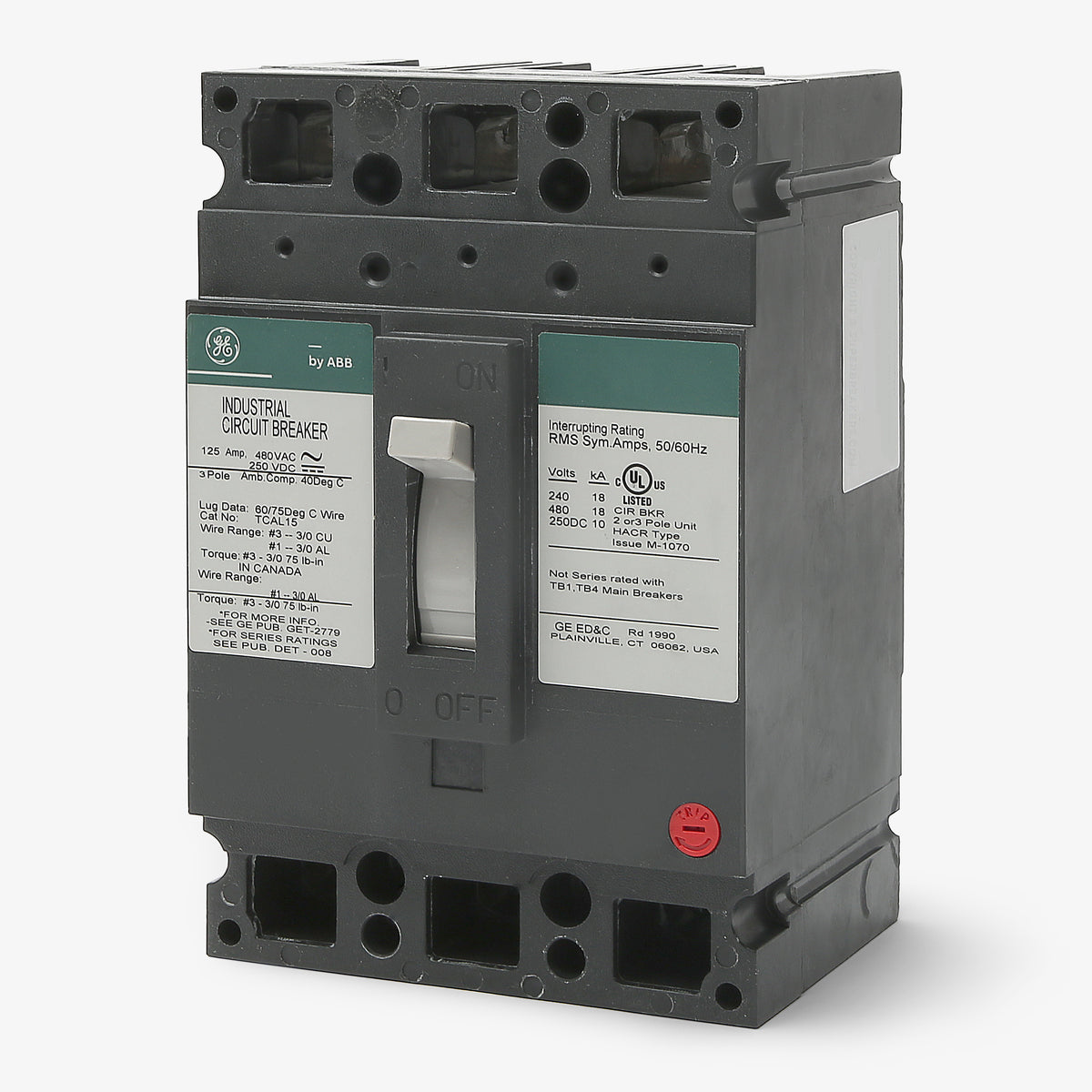

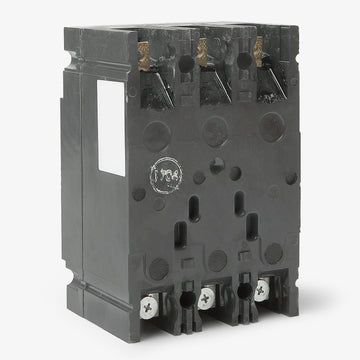

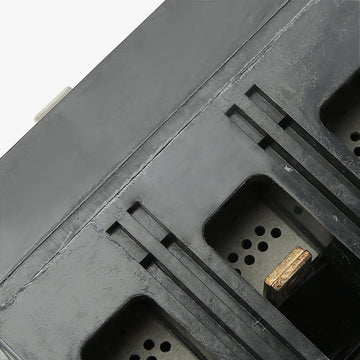

ABB / General Electric TEB132015 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric TEB132015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
ABB / General Electric TEB132015 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132015 - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
Engineered for commercial power distribution, the TEB132015 is a 3-pole, 15A MCCB from GE's E150 frame family. It provides dependable thermal-magnetic trip functions to safeguard branch circuits. This bolt-on breaker installs into GE A-Series and Spectra Series panelboards. It serves as a direct replacement for older TE132015 units, ensuring seamless integration. Rated for 10kAIC at 240VAC, this breaker is HACR rated and reverse feed capable. It features a common trip mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Spectra Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
9 answersWhat panelboards are compatible with the TEB132015?
This bolt-on circuit breaker is designed for installation in GE A-Series and Spectra Series panelboards.
Can I use the TEB132015 to replace an older TE132015 breaker?
Yes, the TEB132015 serves as a direct replacement for legacy TE132015 units, offering the exact same physical dimensions and mounting configuration.
What is the difference between GE TEB, TED, and THED circuit breakers?
All three belong to the GE E150 frame family and share the same physical footprint. The difference lies in their maximum voltage and interrupting ratings. The TEB series is rated up to 240VAC, while TED is rated up to 480VAC, and THED is a high-interrupting version rated up to 600VAC.
Is the TEB132015 suitable for reverse feed applications?
Yes, GE E150 frame breakers, including the TEB132015, are reverse feed capable, allowing them to be back-fed when used as a main breaker in a panelboard.

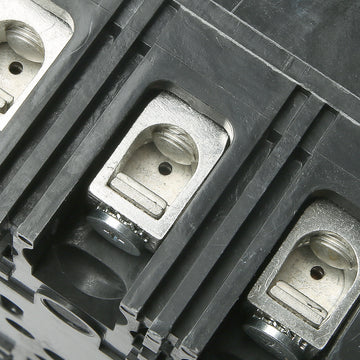

What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs on the TEB132015 accept 14 AWG to 8 AWG copper or aluminum conductors.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, E150 frame breakers like the TEB132015 may feature either ABB or GE branding, but the form, fit, and internal components remain identical.
Does this breaker support DC voltage applications?
Yes, the TEB132015 is rated for 250VDC with an interrupting capacity of 5kAIC, making it suitable for specific direct current control circuits or battery systems.
Can the trip settings on the TEB132015 be adjusted?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory-set and non-interchangeable.
Is the TEB132015 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires dedicated branch circuit protection.
