Siemens 3VA4195-5ED34-0AA0 Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Quantity

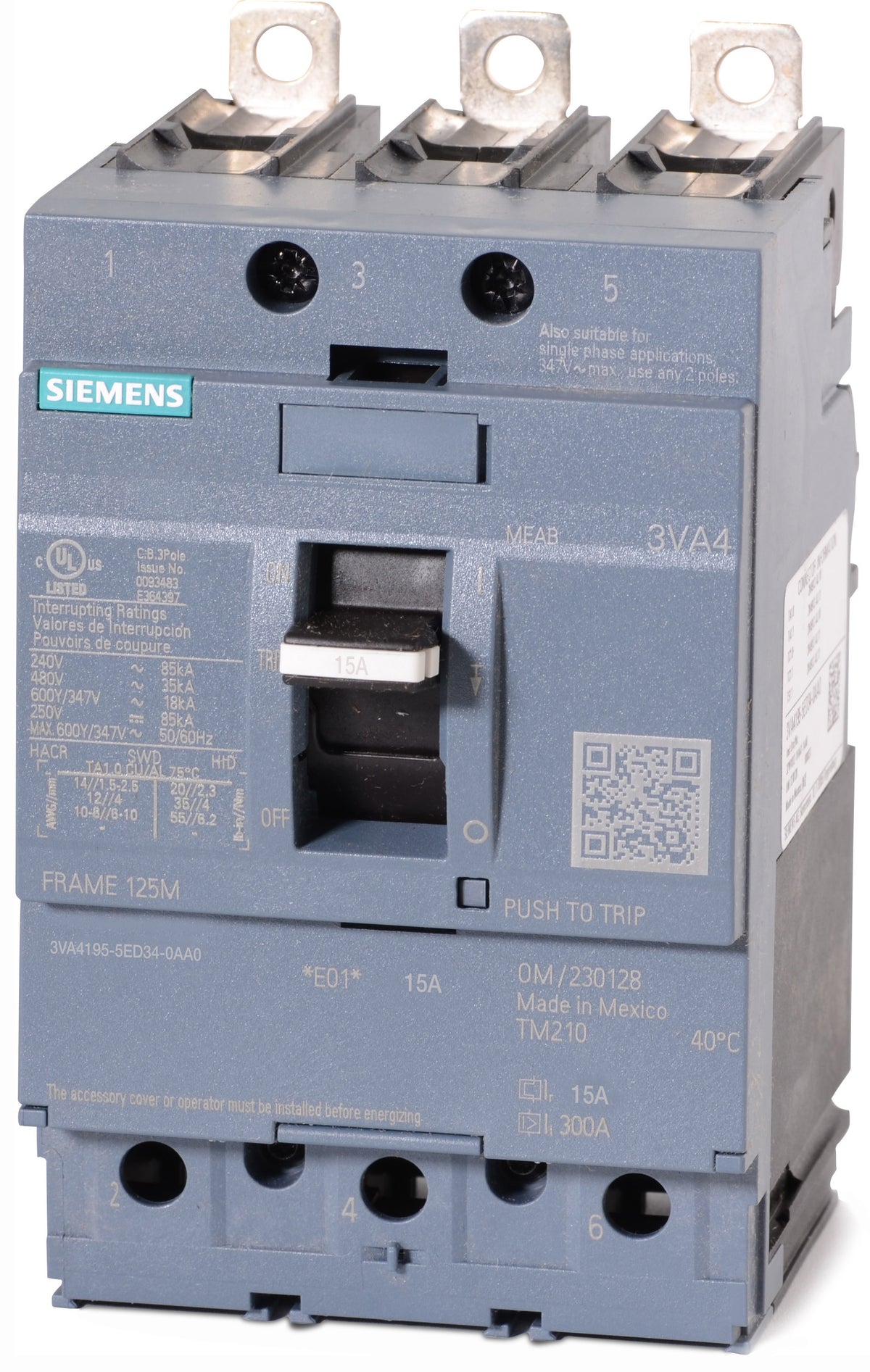

Siemens 3VA4195-5ED34-0AA0 - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Engineered for commercial power distribution, the Siemens 3VA4195-5ED34-0AA0 provides reliable overcurrent protection in 3-phase systems. Operating at 15A, it features a thermal-magnetic trip unit with fixed long-time and instantaneous functions. This bolt-on breaker installs into Siemens P1, P2, and P3 panelboards. It serves as a modern replacement for legacy ED63B015 breakers, ensuring seamless integration into existing infrastructure.Specifications
| Brand | Siemens |
|---|---|
| Series | 3VA4 |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 85kA @ 240VAC, 35kA @ 480Y/277VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 85kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1 Panelboards, Siemens P2 Panelboards, Siemens P3 Panelboards |
| Wire Gauge | 14 AWG - 8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, NOM, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich Siemens panelboards are compatible with the 3VA4195-5ED34-0AA0?
This bolt-on breaker is designed for installation in Siemens P1, P2, and P3 commercial power distribution panelboards.
Can I use this breaker to replace an older ED-frame model?
Yes, the 3VA4195-5ED34-0AA0 serves as a modern replacement for legacy ED63B015 circuit breakers, allowing seamless integration into your existing infrastructure.
What wire sizes are accepted by the lugs on this breaker?
The factory-installed lugs accept both copper (Cu) and aluminum (Al) conductors ranging from 14 AWG to 8 AWG.
Is the trip unit on this 3VA4 breaker adjustable?
No, this specific model features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous (LI) protection settings. The trip thresholds cannot be adjusted in the field.
What is the maximum fault current this breaker can interrupt at 480V?
It carries an interrupting rating of 35kA at both 480VAC and 480Y/277VAC, making it suitable for commercial systems requiring moderate short-circuit protection.
Can this breaker be used in DC power systems?
Yes, it is rated for use in direct current applications up to 250VDC, where it provides an interrupting capacity of 85kA.
