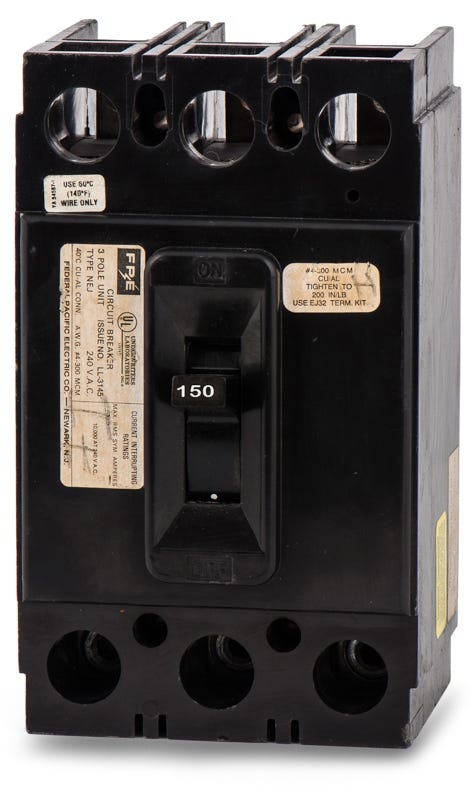

Federal Pacific NEJ231150 Molded Case Circuit Breaker
- 150A
- 3 Pole
- Bolt-On
Federal Pacific
NEJ231150
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NEJ231150
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NEJ231150 - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
175A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
125A 3 Pole Molded Case Circuit Breaker
Description
Maintaining legacy infrastructure demands precise hardware matches like this 150-amp, three-pole commercial breaker. It delivers essential long-time and instantaneous protection for heavy-duty 240V applications without requiring modern panel upgrades. This N-frame unit mounts firmly into original Federal Pacific panelboards, serving as a reliable alternative to UBINEJ231150 models. Equipped with a 10kAIC rating and reverse feed capabilities, it handles demanding industrial environments.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJ231150-R |
| Series | NEJ |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil (Al/Cu) |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, Reverse Feed |
Product FAQs
7 answersWhat type of panelboards accept the NEJ231150 circuit breaker?
This unit is designed exclusively for legacy Federal Pacific commercial panelboards that accommodate N-frame bolt-on circuit breakers. It will not fit modern panels from other manufacturers.
Can this breaker replace a UBINEJ231150?
Yes, the NEJ231150 serves as a direct replacement for UBINEJ231150 models used in older Federal Pacific electrical systems.
How is this circuit breaker installed into the electrical system?
It utilizes a bolt-on mounting configuration, meaning it must be mechanically fastened directly to the bus bars of a compatible Federal Pacific panelboard.
What wire sizes and materials are compatible with the terminals?
The load side lugs are rated to accept either aluminum or copper conductors ranging from 4 AWG up to 300 kcmil.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic trip unit delivers long-time protection against sustained overloads and instantaneous protection against short circuits.
Can this breaker be used in direct current applications?
No, this molded case circuit breaker is strictly rated for alternating current (AC) systems up to 240V.
Are there special safety considerations when installing breakers in legacy Federal Pacific panels?
Because Federal Pacific equipment is obsolete, the overall condition of the panelboard bus bars and insulation should be thoroughly inspected by a licensed electrician prior to installing a replacement breaker.
