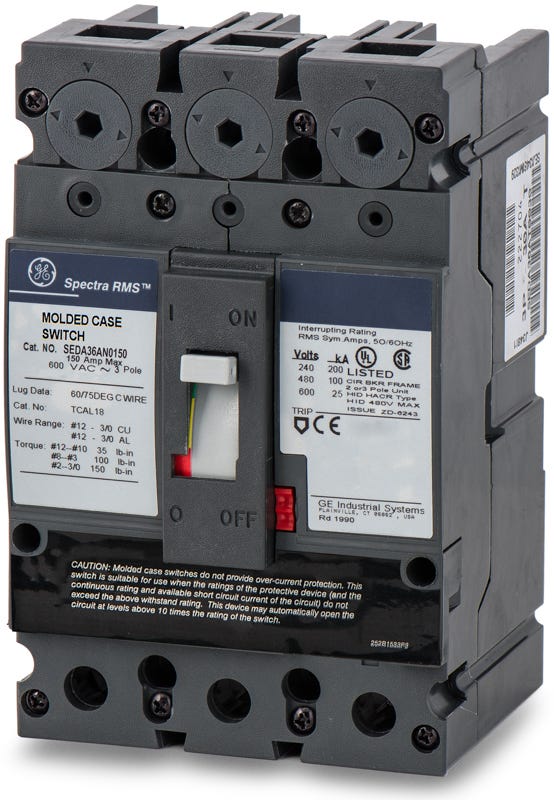

ABB / General Electric SEDA36AN0150 Molded Case Switch
Quantity
Core Specs
See full specs
ABB / General Electric SEDA36AN0150 - 150A 3 Pole Molded Case Switch
New
Quantity
Quantity
ABB / General Electric SEDA36AN0150 - 150A 3 Pole Molded Case Switch
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SEDA36AN0150 |
| Series | SEDA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 480VAC |
| Frame Type | SEDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Lugs Sold Separately |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Interchangeable Trip Unit |
Quantity
ABB / General Electric SEDA36AN0150 - 150A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | SEDA36AN0150-R |
| Series | SEDA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 480VAC |
| Frame Type | SEDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Lugs Sold Separately |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Interchangeable Trip Unit |
Description
Part of the Spectra RMS family, the GE SEDA36AN0150 serves as a 150A molded case switch for industrial power systems. This non-automatic disconnect provides manual switching capabilities while omitting thermal-magnetic overcurrent protection. Designed for unit mounting, it integrates into GE switchboards and motor control centers. When maintenance requires a modern substitute, it is officially replaced by the XT4NU3150DFF000XXX model. The switch delivers a 100kA withstand rating at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SEDA36AN0150 |
| Series | SEDA |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 480VAC |
| Frame Type | SEDA |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 12 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 12 AWG |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits |
|---|---|
| Accessories | Lugs Sold Separately |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Reverse Feed, Interchangeable Trip Unit |
