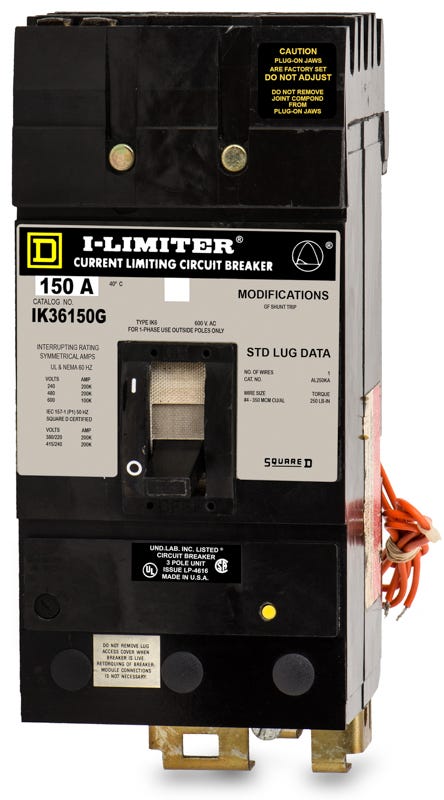

Square D IK36150G GFEP Molded Case Circuit Breaker
- 150A
- 3 Pole
- I-Line
Quantity
Square D IK36150G - 150A GFEP Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Part of the legacy K-Frame series, the Square D IK36150G is a 150A, 3-pole MCCB delivering thermal-magnetic protection with a factory-installed equipment ground fault module. Engineered for commercial power distribution, this unit mounts into Square D I-Line panelboards. It provides a drop-in replacement for aging infrastructure and is replaced by the KI36150G. Rated 200 kAIC at 480V, this current-limiting breaker minimizes let-through energy and features an adjustable magnetic trip.Specifications
| Brand | Square D |
|---|---|
| Part Number | IK36150G-R |
| Series | IK |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | I-Line |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 200kA @ 480VAC, 100kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Square D I-Line Panelboards |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment |
| Accessories | Load Side Lugs Included, Ground Fault Module (Factory Installed) |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Visual Trip Indicator, Non-Interchangeable Trip, Common Trip, Trip-Free Mechanism, Ground Fault Protection |
| Special Features | Current Limiting |
Product FAQs
6 answersWhich panelboards are compatible with the IK36150G circuit breaker?
This breaker is designed specifically for use in Square D I-Line panelboards and switchboards. It features the I-Line plug-in mounting style for quick and secure phase connections directly to the busbar.
What is the modern replacement for the legacy IK36150G?
The IK36150G is a legacy K-Frame breaker that has been replaced by the KI36150G. Both models share the same I-Line mounting and 150A GFEP specifications for seamless integration into existing panelboards.
What type of ground fault protection does the IK36150G provide?
The G suffix indicates it includes integral Ground Fault Equipment Protection (GFEP). It utilizes a Long-Time, Instantaneous, and Ground-Fault (LIG) trip unit to protect machinery and equipment from damaging ground faults, rather than providing Class A personnel protection.
How does the current-limiting feature of the IK36150G benefit an electrical system?
As a current-limiting breaker, it clears severe short circuits extremely fast. This minimizes the peak let-through current and energy, reducing thermal and mechanical stress on downstream equipment during a fault.
Are the trip settings on the IK36150G adjustable?
The breaker features a thermal-magnetic trip unit with a fixed thermal element for overload protection and an adjustable magnetic element. This allows electricians to fine-tune the instantaneous short-circuit trip threshold based on the application.
Do I need to purchase a separate ground fault module for this breaker?
No, the IK36150G comes with a factory-installed ground fault module built into the unit, providing integrated equipment protection without the need to wire external relays.
