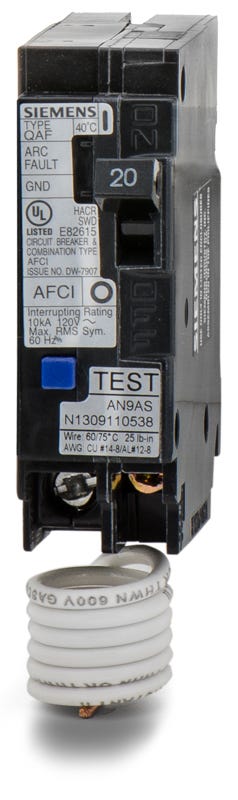

Siemens Q120AFC QA120AFC - 20A AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Siemens
Q120AFC
QA120AFC - 20A AFCI Miniature Circuit Breaker
Brand
Siemens
SKU
Q120AFC
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens QA120AFC - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Siemens QA120AFC - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q120AFC |
| Series | Q |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Siemens QA120AFC - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | Q120AFC-R |
| Series | Q |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
20A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Built for modern residential safety, the Siemens Q120AFC provides 20A, single-pole combination arc-fault protection. It utilizes thermal-magnetic technology to detect both series and parallel arcing conditions, preventing electrical fires. The breaker mounts into Siemens and Murray load centers via a plug-on connection. It serves as a code-compliant replacement for the older Q120AF branch/feeder model.Specifications
| Brand | Siemens |
|---|---|
| Part Number | Q120AFC |
| Series | Q |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | Q |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Load Centers, Murray Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR, SWD, UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhich load centers are compatible with the Siemens Q120AFC breaker?
This plug-on breaker is compatible with Siemens and Murray load centers that accept QP-type branch circuit breakers.
Does the Q120AFC use a pigtail or plug-on neutral?
This model features a pigtail neutral wire that must be routed and connected directly to the panel's neutral bus bar.
What wire gauges are compatible with the Q120AFC terminals?
The load lugs accept 14 to 8 AWG copper conductors or 12 to 8 AWG aluminum conductors.
What type of arc fault protection does the Q120AFC provide?
It is a Combination Type AFCI, meaning it detects both series and parallel arcing faults to help mitigate electrical fires, in addition to providing standard thermal-magnetic overload and short-circuit protection.
Can the Q120AFC replace older Siemens AFCI breakers?

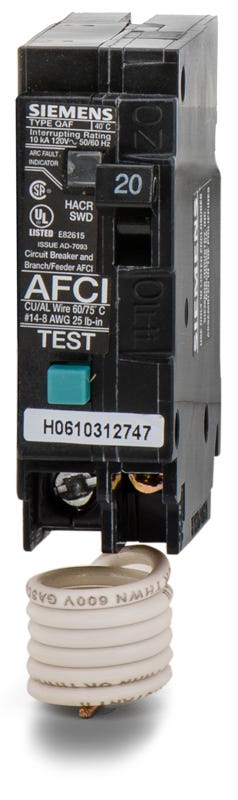

Yes, it serves as a direct, code-compliant replacement for the older Siemens Q120AF branch and feeder arc fault circuit breakers.
Does the Q120AFC feature a diagnostic trip indicator?
Yes, this breaker includes an electronic LED trip indicator to help identify the specific cause of a tripped circuit, simplifying troubleshooting for arc fault conditions.
