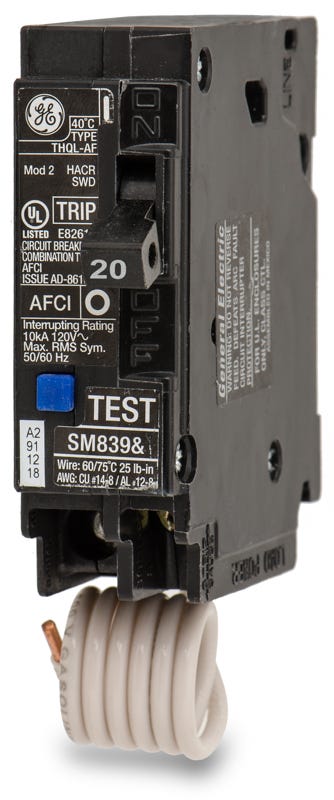

ABB / General Electric THQL1120AF AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Quantity
ABB / General Electric THQL1120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
ABB / General Electric THQL1120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120AF |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Branch/Feeder Arc Fault Protection |
Quantity
ABB / General Electric THQL1120AF - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120AF-R |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Branch/Feeder Arc Fault Protection |
Description
Designed for earlier NEC code cycles, this 20-amp branch/feeder AFCI provides foundational arc-fault detection for residential circuits. It utilizes a standard pigtail wire to establish the necessary neutral connection. The breaker installs into traditional GE Q-Line, PowerMark Gold, and ABB ReliaHome load centers. While it has been superseded by the THQL1120AF2 combination model, it remains suitable for specific maintenance replacements. Operating with a 10kAIC rating at 120V, it is HACR rated.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL1120AF |
| Series | THQL |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | THQL |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, HACR |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated, Quick-Make/Quick-Break, Branch/Feeder Arc Fault Protection |
Product FAQs
5 answersWhich load centers are compatible with the THQL1120AF breaker?
This breaker is designed for use in GE Q-Line, GE PowerMark Gold, and ABB ReliaHome load centers.
What is the difference between the THQL1120AF and the THQL1120AF2?
The THQL1120AF is a branch/feeder Arc Fault Circuit Interrupter (AFCI) designed for earlier NEC code cycles. The THQL1120AF2 is the newer combination AFCI model that detects both parallel and series arcing.
How is the neutral connection established on the THQL1120AF?
This breaker utilizes a standard pigtail wire that must be connected directly to the neutral bus bar in the load center to provide arc fault protection.
What are the recommended tightening torques for the box lugs on this breaker?
For the accepted wire range, tighten 14 to 10 AWG wire to 35 in-lb, and 8 AWG wire to 40 in-lb.
What type of arc fault protection does the THQL1120AF provide?
It provides branch/feeder arc fault protection, which is designed to detect parallel arcing faults in residential circuits. It does not provide combination arc fault detection.
