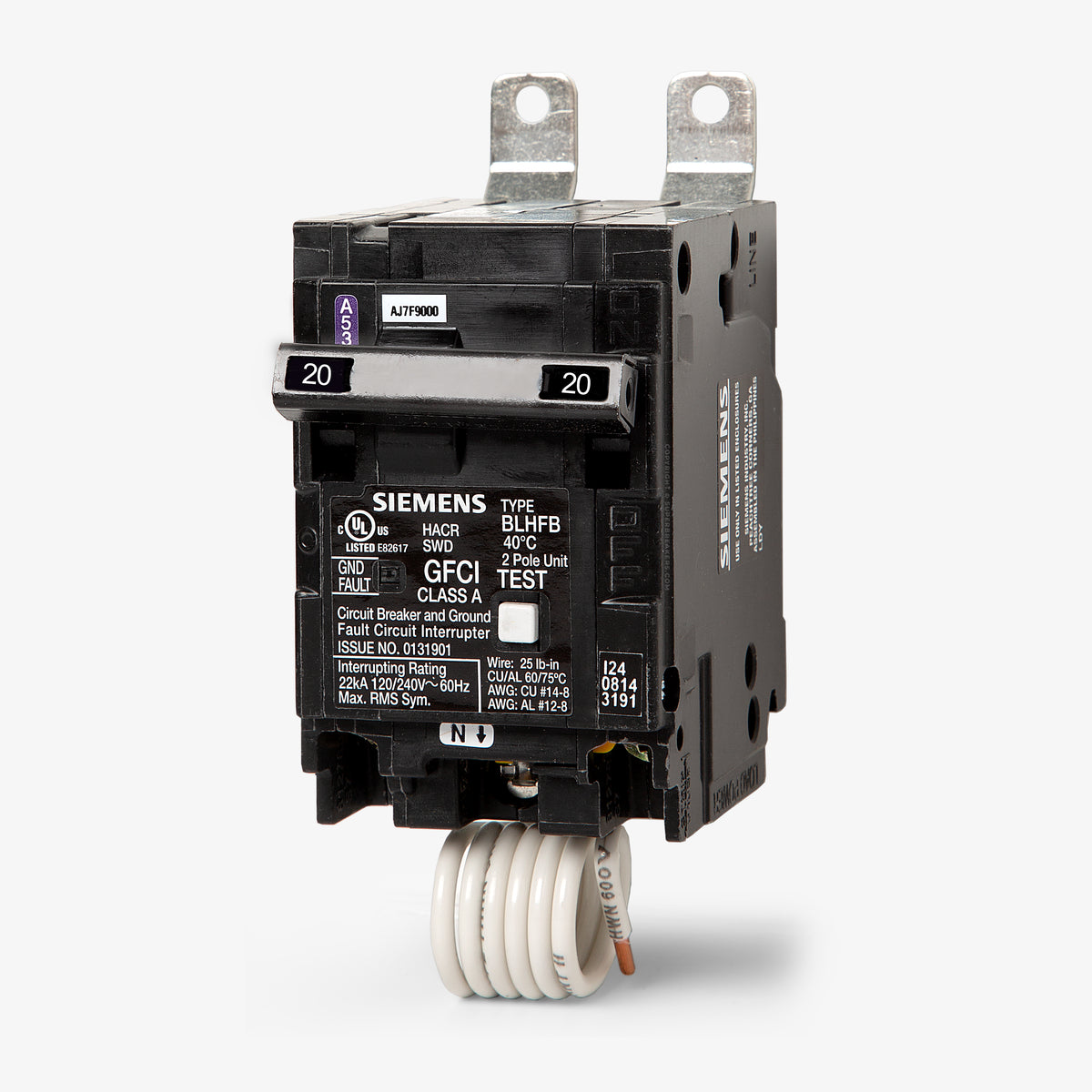

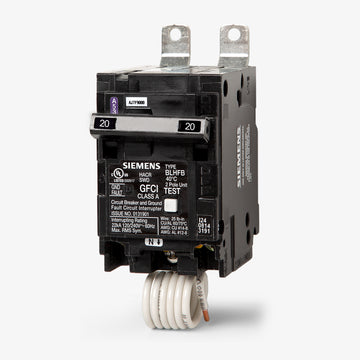

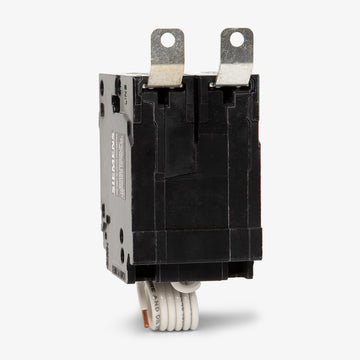

Siemens B220GF GFCI Miniature Circuit Breaker
- 20A
- 2 Pole

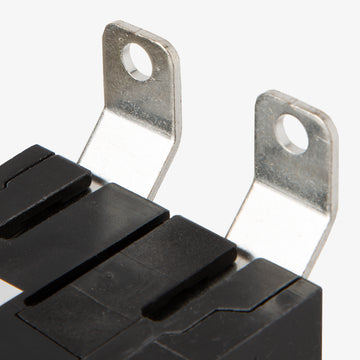

- Bolt-On
Quantity
Siemens B220GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Description
Designed for residential and commercial applications, the Siemens B220GF delivers reliable 5mA Class A ground-fault protection. This 20A, 2-pole breaker features a bolt-on mounting style, ensuring a secure connection when installed into Siemens P1, P2, P3, P4, and P5 panelboards. Equipped with thermal-magnetic trip technology, a pigtail neutral, and a self-test function, it continuously monitors for leakage current to prevent electrical hazards and ensure strict NEC compliance.Specifications
| Brand | Siemens |
|---|---|
| Series | B |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | B |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included, Pigtail Neutral |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Self-Test, Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhat panelboards are compatible with the Siemens B220GF?
The B220GF is a bolt-on circuit breaker designed specifically for installation in commercial Siemens P1, P2, P3, P4, and P5 panelboards. Because of its bolt-on mounting style, it cannot be used in standard residential plug-on load centers.
How is the neutral connection handled on the B220GF?
This breaker utilizes a pigtail neutral connection. During installation, the attached factory white pigtail wire must be securely routed and connected to the panelboard's neutral bus bar to ensure the internal ground-fault detection circuitry receives reference power.
What level of ground-fault protection does the B220GF provide?
The B220GF provides Class A ground-fault protection. It is engineered to trip when it detects a ground-fault current of 5mA, ensuring personnel safety in wet or damp environments as required by the NEC.
Can the B220GF replace older Siemens BF220 or BLF220 breakers?
Yes. The B220GF is part of the modern Siemens BLFB family and serves as a direct replacement for legacy Type BLF and BF 20-amp, 2-pole bolt-on GFCI breakers, including catalog numbers BF220 and BLF220.
Is the Siemens B220GF designed for equipment protection or personnel protection?
As a Class A GFCI device with a 5mA trip threshold, the B220GF is designed strictly for personnel safety against electric shock. This differs from Ground Fault Equipment Protection (GFEP) breakers, which typically feature a higher 30mA trip threshold and are not classified as Class A.
