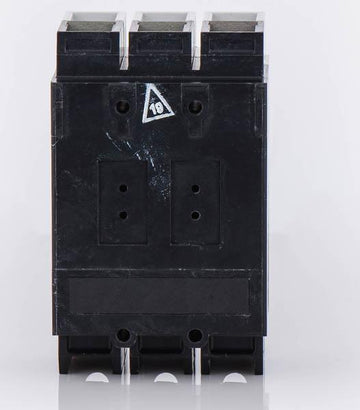

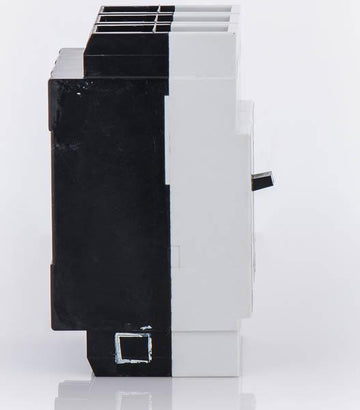

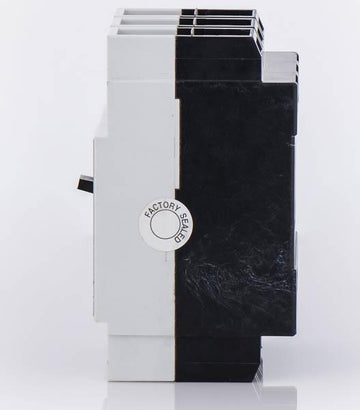

Eaton / Cutler-Hammer GMCP003A0C Motor Circuit Protector
- 3A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GMCP003A0C
Motor Circuit Protector
Brand
Eaton / Cutler-Hammer
SKU
GMCP003A0C
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GMCP003A0C - 3A 3 Pole Motor Circuit Protector
New
Quantity
Similar Items
Eaton / Cutler-HammerHMCPS003A0C
3A 3 Pole Motor Circuit Protector
Eaton / Cutler-HammerHMCP003A0
3A 3 Pole Motor Circuit Protector
3A 3 Pole Motor Circuit Protector
Description
Built for industrial motor control, the Eaton GMCP003A0C provides instantaneous short-circuit protection. This 3-pole, 3A breaker integrates with NEMA Size 0 starters to prevent equipment damage. The G-Frame unit mounts into Eaton Series C panelboards and motor control centers. It includes copper-only lugs and supports standard accessories. Rated 35 kAIC at 480VAC, it features a magnetic trip unit with a 15-30A adjustable range (Code A0) to precisely match motor inrush characteristics.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GMCP003A0C |
| Series | GMCP |
| Amperage | 3A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Motor Control Centers, Combination Motor Starters, Series C Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included, Copper Lugs Included |
| Standards | CSA C22.2 No. 5.1, IEC 157-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector |
