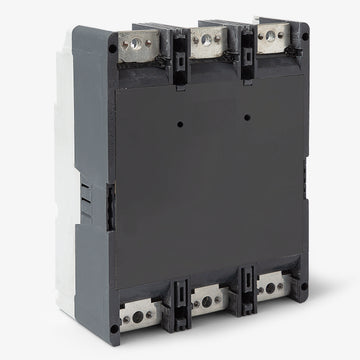

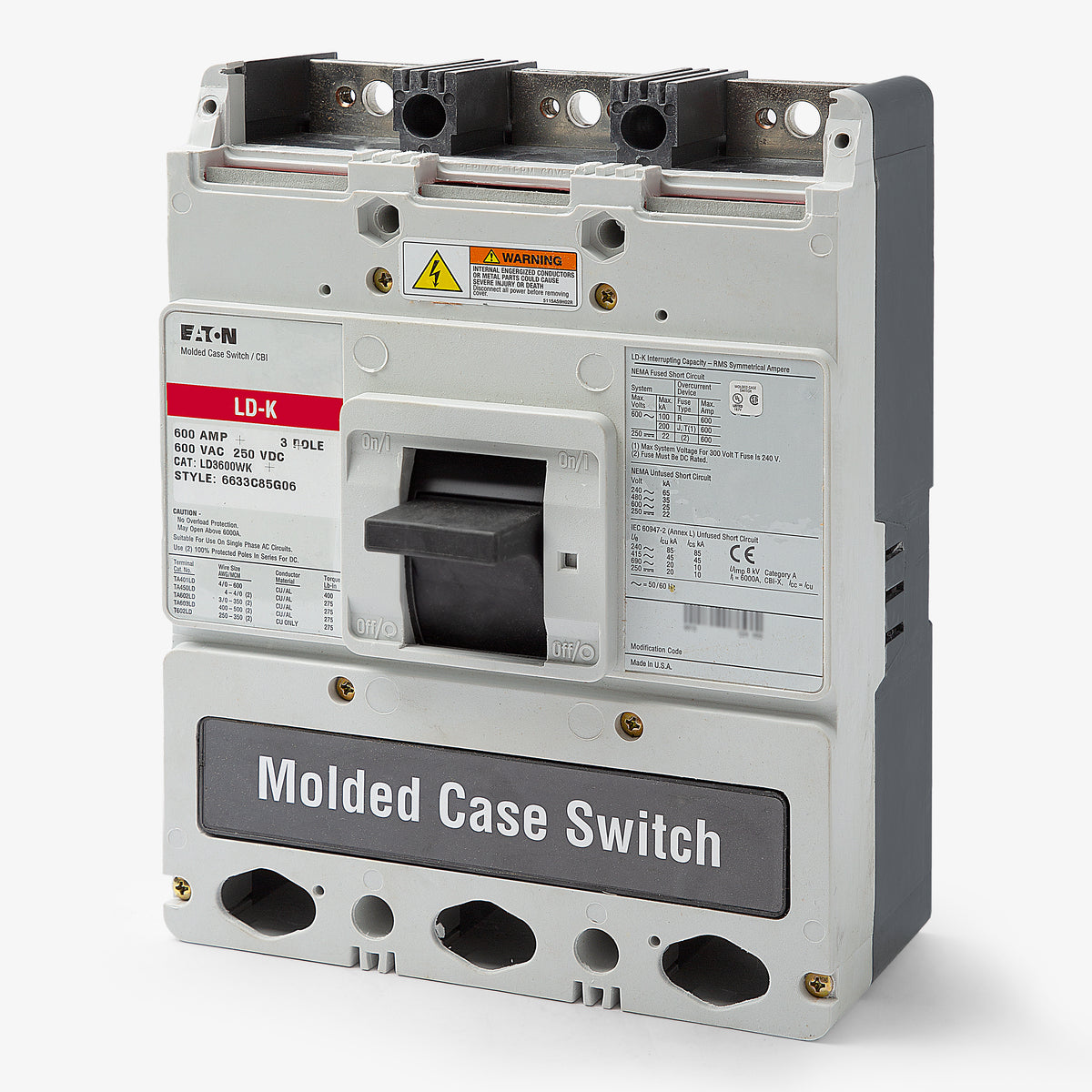

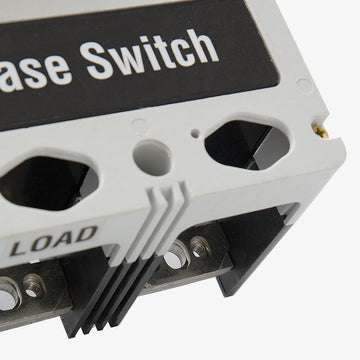

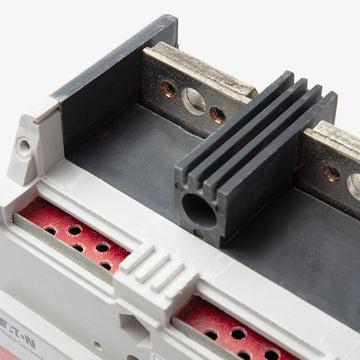

Eaton / Cutler-Hammer LD3600WK Molded Case Switch
Quantity
Core Specs
See full specs
Eaton / Cutler-Hammer LD3600WK - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer LD3600WK - 600A 3 Pole Molded Case Switch
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | LD3600WK |
| Series | LD |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Without Terminals (Suffix W) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Molded Case Switch, Reverse Feed |
Quantity
Eaton / Cutler-Hammer LD3600WK - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | LD3600WK-R |
| Series | LD |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Without Terminals (Suffix W) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Molded Case Switch, Reverse Feed |
Description
Engineered for heavy-duty isolation, the Eaton LD3600WK operates as a 600A, 3-pole molded case switch within the Series C family. It serves as a reliable disconnect for commercial and industrial applications up to 600VAC. This unit-mount switch installs into Eaton Series C panelboards and motor control centers. It is supplied without terminals to allow for custom lug configurations. Rated to withstand 35 kAIC at 480V, this L-Frame device features a high magnetic trip for self-protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | LD3600WK-R |
| Series | LD |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Without Terminals (Suffix W) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Molded Case Switch, Reverse Feed |
