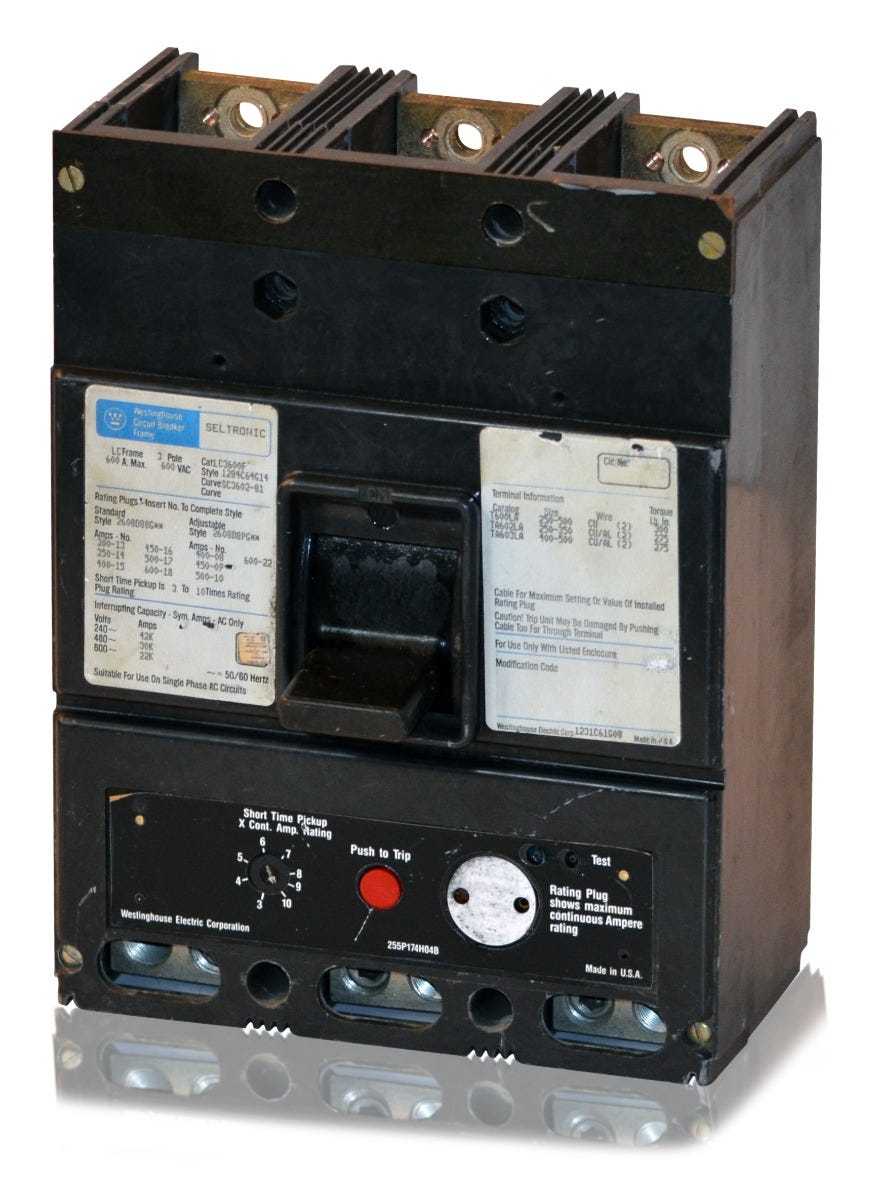

Eaton / Westinghouse LC3600F Molded Case Circuit Breaker
- 600A
- 3 Pole
- Unit Mount
Quantity
Eaton / Westinghouse LC3600F - 600A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Description
Engineered to support aging electrical infrastructure, the Eaton LC3600F is a 3-pole, 600A electronic trip molded case circuit breaker. It delivers reliable performance for commercial applications. Designed for unit mounting, this legacy breaker integrates into Westinghouse and Cutler-Hammer panelboards. It offers a seamless hardware replacement for older systems and is frequently substituted by the LD3600.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | LC3600F |
| Series | LC |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | LC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse/Eaton Switchboards, Panelboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LS |
| Trip Function | Long-Time, Short-Time |
| Trip Adjustability | Fixed |
| Available Options | Rating Plugs, Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Seltronic, Solid State, Rating Plug Required |
Product FAQs
5 answersCan I use an Eaton LC3600F to replace an older Westinghouse or Cutler-Hammer breaker?
Yes. Eaton acquired the Westinghouse distribution equipment division and integrated it into the Cutler-Hammer product line. The Eaton, Cutler-Hammer, and Westinghouse LC3600F models share the exact same footprint and are direct physical replacements for one another.
What type of electrical equipment accepts the LC3600F?
This unit-mount legacy circuit breaker is designed to bolt directly onto the bus of compatible Westinghouse and Eaton Cutler-Hammer switchboards, panelboards, and motor control centers (MCCs).
Does the LC3600F frame include the required rating plug?
No. This unit is provided as a frame with an integrated solid-state trip unit. A compatible Seltronic rating plug must be sourced and installed separately before the breaker can be placed into service.
How do you set the continuous amperage on the LC3600F?
While the frame has a maximum physical capacity of 600A, the actual continuous current rating is dictated by the Seltronic rating plug installed. You must install a specific plug, such as a 400A (6LC400) or 600A (6LC600), to determine the operating amperage.
Is it safe to remove the rating plug while the LC3600F is closed?
No. If the rating plug is removed from the solid-state trip unit while the circuit breaker is closed, it will immediately cause the breaker to trip. Always de-energize the equipment before servicing the breaker or swapping out rating plugs.
