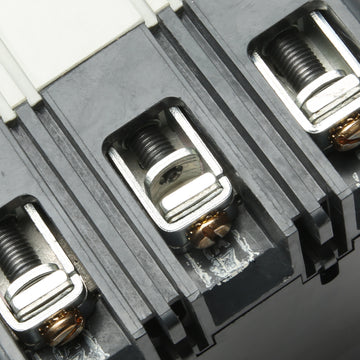

Eaton / Cutler-Hammer PDG23F0060TFFJ Molded Case Circuit Breaker
- 60A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0060TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0060TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

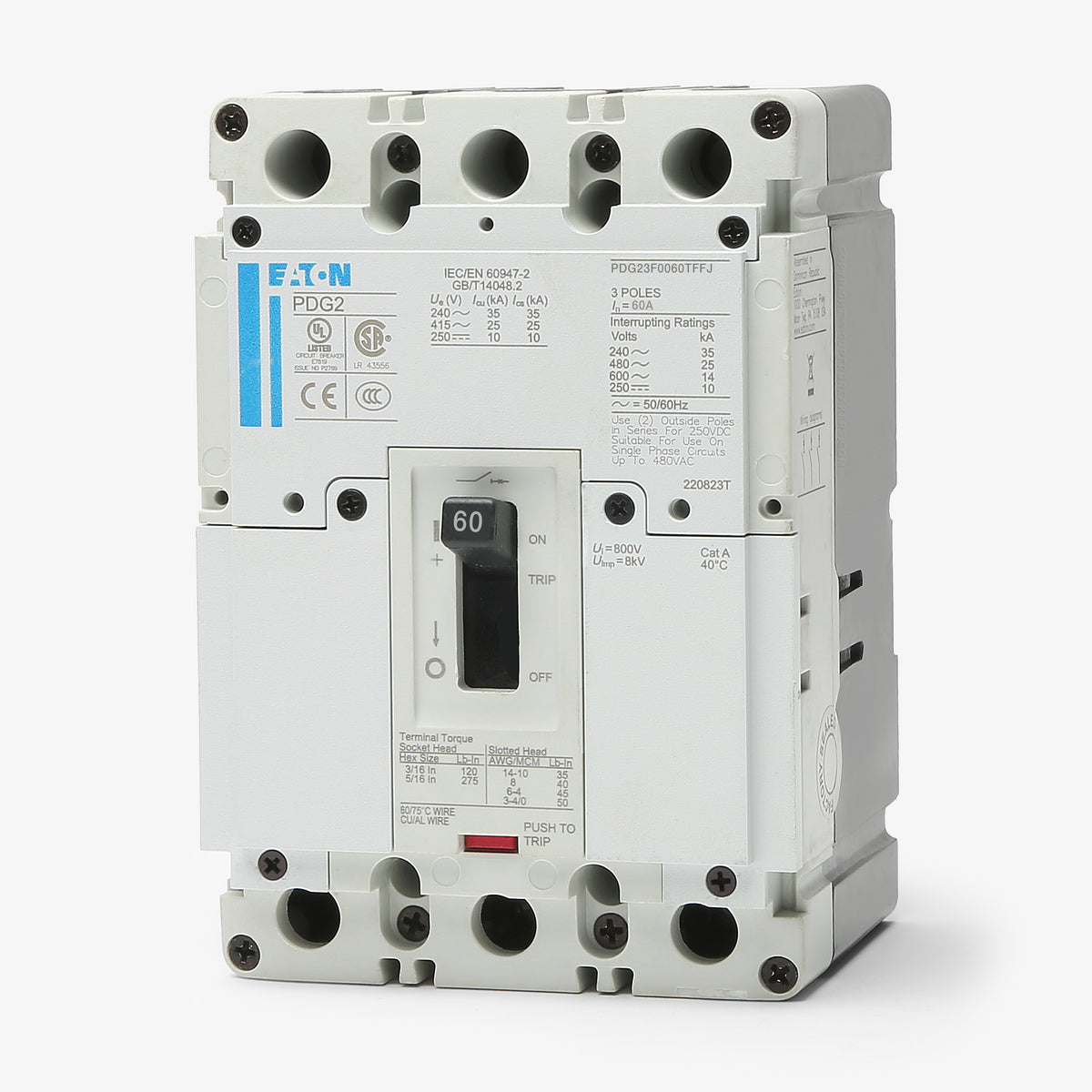

Eaton / Cutler-Hammer PDG23F0060TFFJ - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0060TFFL
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0060TFFJ
60A 3 Pole Molded Case Circuit Breaker
Description
Providing reliable commercial circuit protection, the Eaton PDG23F0060TFFJ is a 3-pole, 60A molded case circuit breaker from the Power Defense series. It seamlessly integrates into Eaton switchboards and panelboards, serving as an ideal substitute for discontinued EGB3060FFG and FDB3060 breakers. Featuring a 35kAIC rating at 240VAC and fixed thermal-magnetic trip technology, this current-limiting device ensures dependable long-time and instantaneous (LI) defense. Lugs are included.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG23F0060TFFJ |
| Series | PDG2 |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Current Limiting, Common Trip, Trip-Free Mechanism, Reverse Feed |
Product FAQs
6 answersCan the PDG23F0060TFFJ replace older Series C F-Frame breakers?
Yes, the Power Defense Frame 2 series is the modern replacement for legacy Cutler-Hammer Series C F-Frame breakers, such as the FDB3060. If you are retrofitting this into an older Pow-R-Line panelboard, you will need to replace the legacy mounting hardware with a new Pow-R-Line Xpert connector kit.
Is the PDG23F0060TFFJ suitable for reverse feed applications?
Yes, standard Eaton Power Defense Frame 2 molded case circuit breakers equipped with thermal-magnetic trip units can be safely reverse fed.
What do the letters TFFJ signify in the catalog number?
In the Power Defense nomenclature, the T indicates a thermal-magnetic trip unit. The double F specifies that both the thermal and magnetic trip settings are fixed. The J denotes that the breaker includes standard line and load side lugs.
What does the letter F in the PDG23F prefix indicate?
The letter F designates the specific interrupting capacity tier for this Frame 2 breaker. It indicates a maximum interrupting rating of 25kAIC at 480VAC and 35kAIC at 240VAC.
What type of protection does the fixed thermal-magnetic trip unit provide?
The fixed thermal-magnetic trip unit provides long-time (L) protection against overloads and instantaneous (I) protection against short circuits. Both the thermal and magnetic trip points are factory preset and non-adjustable.
What wire sizes are compatible with the standard lugs on this breaker?
The included line and load lugs are designed to accept wire gauges ranging from 14 AWG to 1/0 AWG.
