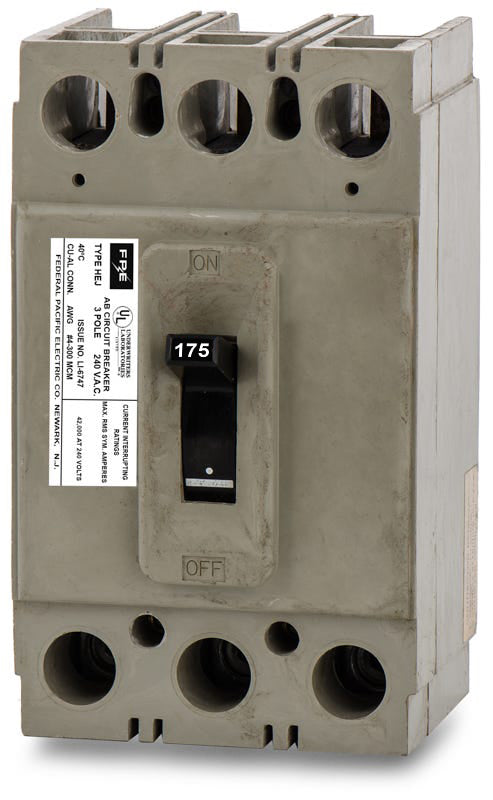

Federal Pacific HEJ233175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Quantity
Federal Pacific HEJ233175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific HEJ233175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | HEJ233175 |
| Series | HEJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | HEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | HEJ233175-R |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Quantity
Federal Pacific HEJ233175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | HEJ233175-R |
| Series | HEJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | HEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | HEJ233175-R |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Description
Engineered for legacy power distribution systems, the Federal Pacific HEJ233175 is a 175-amp molded case circuit breaker built for commercial and industrial environments. It helps facility managers maintain existing infrastructure safely and effectively. The three-pole unit utilizes a standard bolt-on mounting style for secure installation into compatible Federal Pacific panelboards.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | HEJ233175 |
| Series | HEJ |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC |
| Frame Type | HEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | HEJ233175-R |
| Standards | UL 489, NEMA AB-1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the HEJ233175 circuit breaker?
This breaker is designed exclusively for legacy Federal Pacific panelboards configured to accept H-frame or HEJ-series bolt-on breakers.
What wire gauge range is supported by the lugs on this breaker?
The terminal lugs accept conductor sizes ranging from 4 AWG up to 300 kcmil. Ensure you use the correct torque specifications during installation to prevent terminal overheating.
What does the LI trip function code mean on the HEJ233175?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time (thermal) overload protection and Instantaneous (magnetic) short-circuit protection. Both functions are fixed and non-adjustable on this model.
Are Federal Pacific HEJ breakers still in active production?
No. Federal Pacific Electric (FPE) is no longer in business. The HEJ233175 is a legacy component used primarily by facility managers and electricians to maintain and service existing FPE infrastructure without replacing the entire panel.
How is the HEJ233175 secured inside the electrical panel?
It utilizes a bolt-on connection type. The breaker must be mechanically bolted directly to the panelboard busbars, providing a secure, vibration-resistant connection compared to standard plug-on designs.
Is it safe to replace a single Federal Pacific breaker in an older panel?
Replacing a faulty breaker with an exact match like the HEJ233175 can restore functionality to a legacy panel. However, because FPE equipment is obsolete, a licensed electrician should thoroughly inspect the panel busbars and overall system condition before installation.
