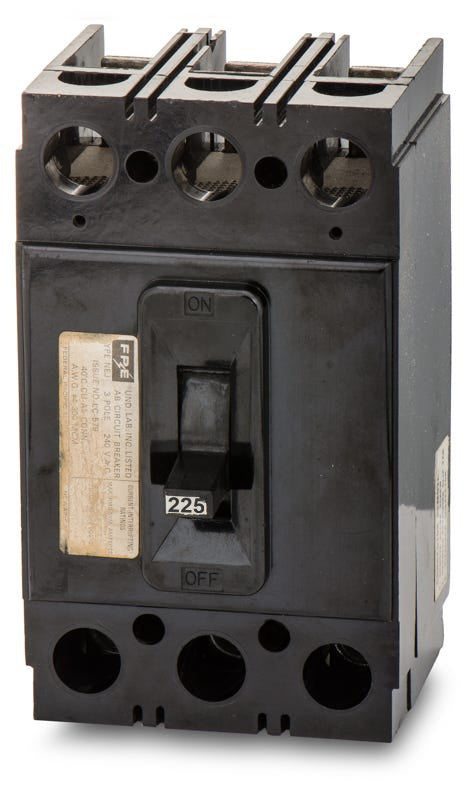

Federal Pacific NEJ233225NA - 225A 3 Pole Molded Case Switch
New
Quantity
Description
Serving as a dedicated disconnect rather than an overcurrent device, this 225A non-automatic switch isolates commercial and industrial circuits. It features a robust N-frame construction rated for 240VAC and 250VDC applications. Designed to mount into older Federal Pacific panelboards, the bolt-on configuration offers a seamless drop-in replacement. Facility managers can restore equipment isolation capabilities without modifying existing enclosures.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NEJ233225NA |
| Series | NEJ |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | NEJ |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Panelboards |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Accessories | Load Side Lugs |
|---|---|
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect) |
