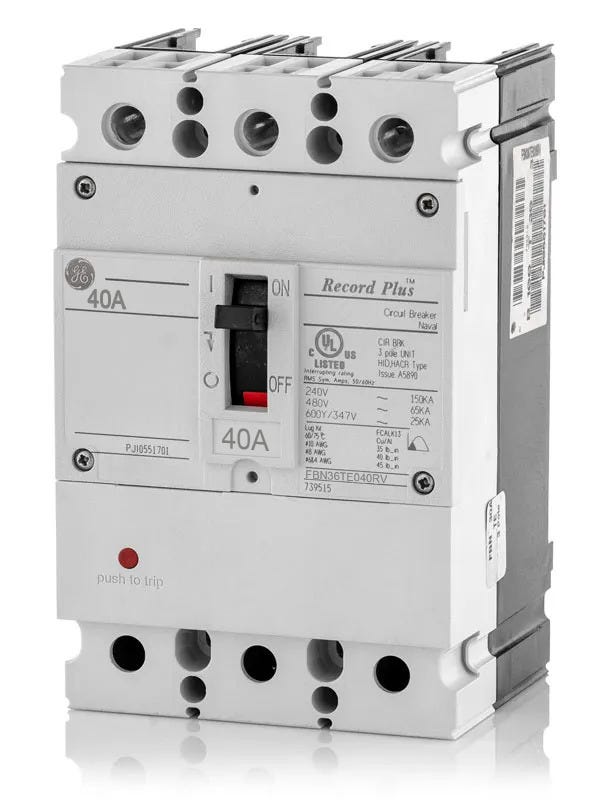

ABB / General Electric FBN36TE040RV Molded Case Circuit Breaker
- 40A
- 3 Pole
- Bolt-On
Quantity
ABB / General Electric FBN36TE040RV - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
ABB / General Electric FBN36TE040RV - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE040RV |
| Series | FBN |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Quantity
ABB / General Electric FBN36TE040RV - 40A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Series | FBN |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Description
Offering superior short-circuit protection, the GE FBN36TE040RV is a 40A, 3-pole molded case circuit breaker. It belongs to the Record Plus series, bringing modern thermal-magnetic trip technology to industrial power systems. This bolt-on breaker mounts into GE Type AD and A-Series panelboards. Facility managers can also use it to replace the discontinued TED134040, upgrading their panel's overall interrupting rating. It boasts a 150 kAIC rating at 240V and includes a trip-free mechanism.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN36TE040RV |
| Series | FBN |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the FBN36TE040RV circuit breaker?
This bolt-on breaker is designed for installation in GE Type AD and GE A-Series panelboards.
Does the FBN36TE040RV include line and load lugs?
This breaker is designed for bolt-on panel connections on the line side and includes standard mechanical lugs on the load side that accept 10 to 4 AWG copper or aluminum wire.
What does the "N" in the FBN prefix indicate for this Record Plus breaker?
In the GE Record Plus nomenclature, the "N" designates a normal interrupting capacity, which provides a 65kAIC rating at 480VAC.
What type of protection does the LI trip unit provide on this breaker?
The fixed thermal-magnetic trip unit provides Long-Time (L) protection against sustained overloads and Instantaneous (I) protection against short circuits. The trip thresholds are factory-set and cannot be adjusted in the field.
Why might this breaker arrive with either ABB or GE branding?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, this FB100 frame breaker may feature either ABB or General Electric branding, but the physical dimensions, fit, and technical specifications remain identical.
Can the FBN36TE040RV replace older GE TED series circuit breakers?
Yes, this Record Plus breaker can be used to replace the discontinued TED134040 in compatible panels, often providing an upgraded interrupting capacity.
