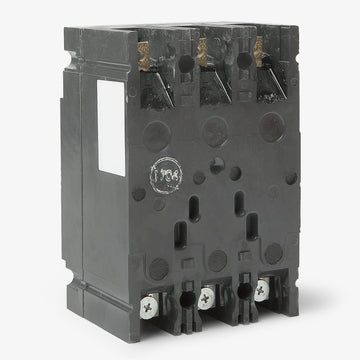

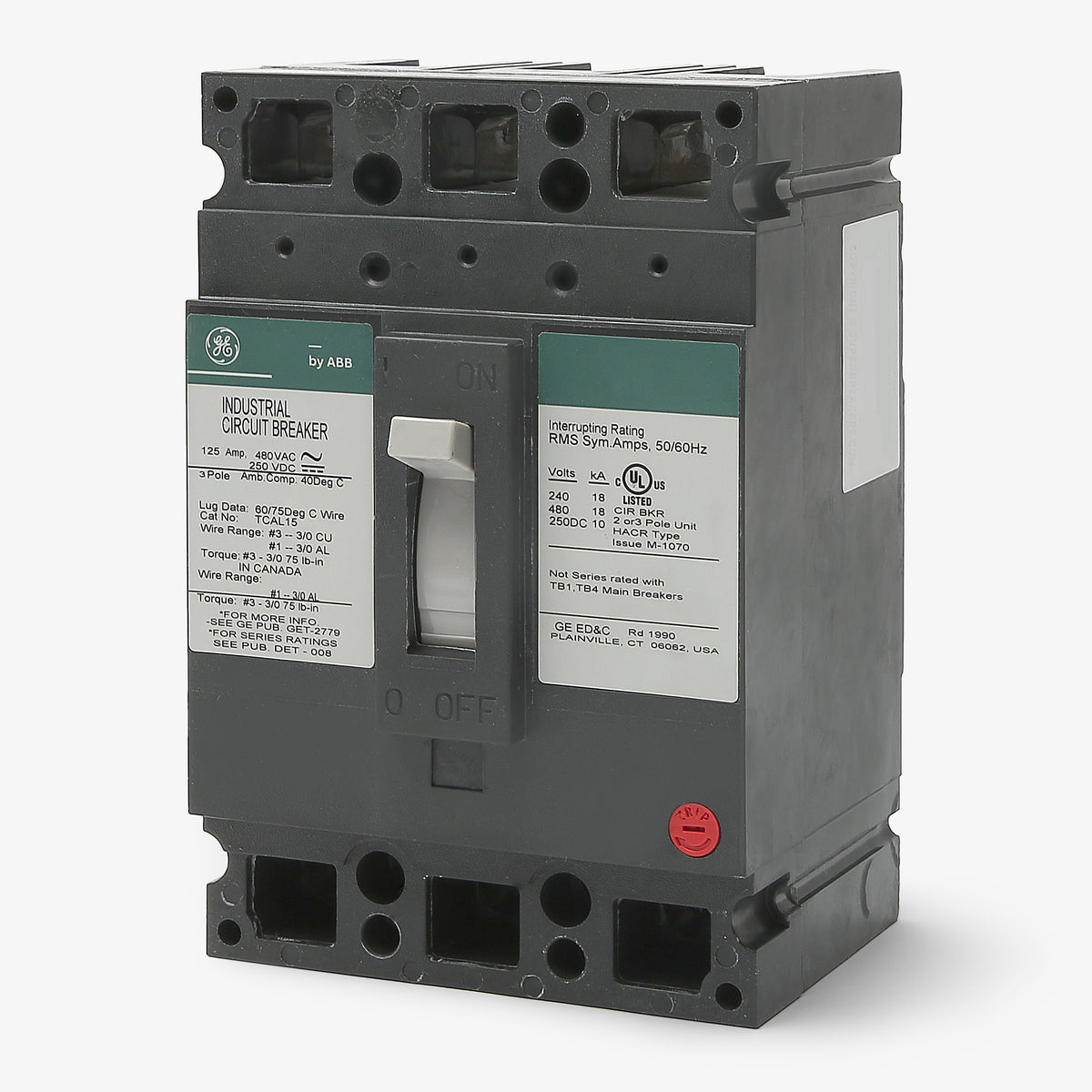

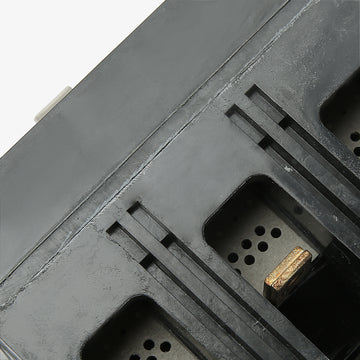

ABB / General Electric TEB132015WL Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Quantity
ABB / General Electric TEB132015WL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
ABB / General Electric TEB132015WL - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132015WL |
| Series | TEB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Quantity
ABB / General Electric TEB132015WL - 15A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132015WL-R |
| Series | TEB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Description
The TEB132015WL is a 3-pole, 15-amp MCCB from GE's E150 frame family. Featuring the "WL" suffix, this unit includes factory-installed line and load lugs (TCAL12) for immediate wire termination. This unit-mount breaker is ideal for GE switchboards, motor control centers, and individual enclosures. It serves as a versatile replacement for TE132015 and TED132015 breakers. Delivering 10kAIC at 240VAC, it utilizes fixed thermal-magnetic trip technology.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TEB132015WL-R |
| Series | TEB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 250VDC |
| Frame Type | TEB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards, Switchboards, Motor Control Centers, Individual Enclosures |
| Wire Gauge | 14-3 AWG (Cu), 12-1 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (TCAL12) |
| Standards | HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
8 answersWhat does the "WL" suffix mean on the TEB132015WL catalog number?
The "WL" suffix indicates that the circuit breaker includes factory-installed copper and aluminum (Cu/Al) line and load lugs for immediate wire termination.
Which panelboards accept the TEB132015WL circuit breaker?
This E-frame breaker is designed for unit mounting in GE A-Series panelboards, as well as compatible switchboards, motor control centers, and individual enclosures.
Can the TEB132015WL replace older GE circuit breakers?
Yes, this breaker serves as a direct replacement for legacy TE132015 and TED132015 breakers, maintaining the same physical footprint within the E150 frame family.
Is the TEB132015WL suitable for reverse feed installations?
Yes, GE TEB series molded case circuit breakers are suitable for reverse feed applications, allowing power to be supplied to either the line or load terminals.

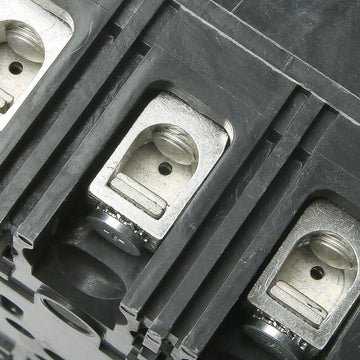

What wire gauges are accepted by the lugs on this 15A breaker?
The factory-installed lugs accept 14 to 3 AWG copper wire or 12 to 1 AWG aluminum wire.
Can the TEB132015WL be used in direct current (DC) systems?
Yes, in addition to its 240VAC rating, this breaker is rated for up to 250VDC with an interrupting capacity of 5kAIC.
Does the TEB132015WL feature a trip-free mechanism?
Yes, it utilizes a trip-free mechanism that ensures the breaker will trip under overload or short-circuit conditions even if the operating handle is physically held in the ON position.
What type of trip unit is installed in the TEB132015WL?
It features a non-interchangeable thermal magnetic trip unit with fixed long-time and instantaneous (LI) trip functions to protect against overloads and short circuits.
