General Electric TEYH3080B 3 Pole Circuit Breaker

Brand General Electric
SKU TEYH3080B
(3 Reviews)
General Electric TEYH3080B 3 Pole Circuit Breaker
General Electric TEYH3080B 3 Pole Circuit Breaker

General Electric TEYH3080B 3 Pole Circuit Breaker

Brand General Electric
SKU TEYH3080B
(3 Reviews)
Select Item Condition

Quantity
Buy Now. Pay Later with Shop Pay.
Earn 691 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99
General Electric TEYH3080B 3 Pole Circuit Breaker

General Electric TEYH3080B 3 Pole Circuit Breaker

New

$691.60 In stock

Quantity

Description

General Electric TEYH3080B 3 Pole Circuit Breaker

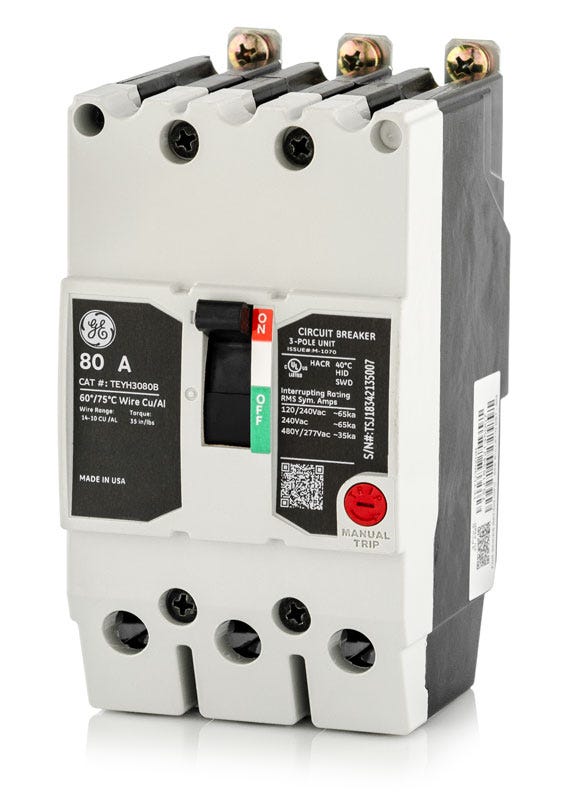

The General Electric TEYH3080B is a 3-pole thermal magnetic molded case circuit breaker, designed for bolt-on panelboard mounting. Coming from the TEYH Series of circuit breakers, this circuit breaker has high interrupting capacity with AIC rating of 35 kilo-Amps at 480 VAC. It features a current rating of 80 amps and a voltage rating of 277/480 VAC. It is comes equipped with load side lug terminals for easy installation. This lighting panel circuit breaker provides non-interchangeable thermal magnetic protection and includes long-time and instantaneous trip functions. The GE TEYH3080B is suitable for varied applications as a lug-lug breaker.

Specifications

Brand General Electric
Series TEYH
Amperage 80
Voltage 480 VAC
Poles 3
Phase 3
Mounting Type Bolt On Panelboard
Interrupting Rating 35kA
Frame Type 125A/TEY
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Lug
Length (in) 3
Width (in) 3
Height (in) 5.2
For Use With GE AS lighting panels
Standards UL Listed, cUL Listed
Temperature Rating 40°C
Circuit Breaker Type Molded Case
Max Wire Size 2 AWG
Min Wire Size 4 AWG
Voltage Protection Rating 480V
Upc 783164462210
Gtin 783164462210
