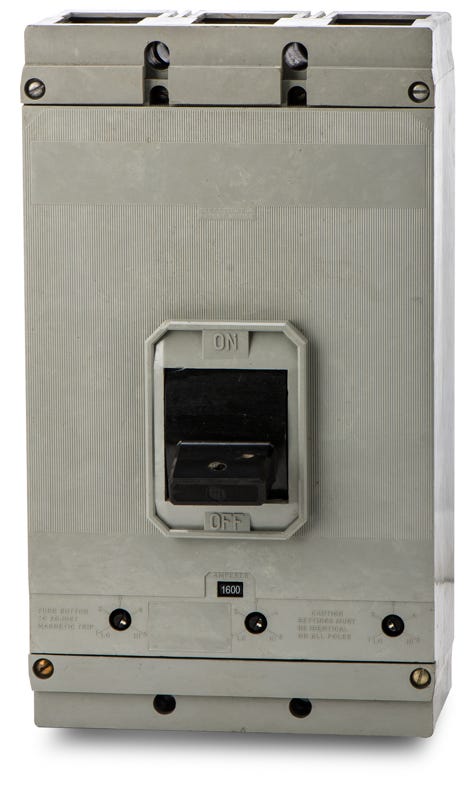

Siemens / ITE HP3S160 - 1600A 3 Pole Molded Case Switch
Re-Certified
Quantity
Description
Handling up to 1600 amps of current, the Siemens HP3S160 is a heavy-duty molded case switch engineered for commercial and industrial isolation. This 3-pole, 600VAC-rated disconnect operates without thermal-magnetic trip elements. It integrates seamlessly into legacy Siemens switchboards and power panelboards that utilize the KP/HP frame footprint. Utilizing this exact replacement prevents the costly downtime associated with retrofitting the newer HPS3S160 or PD63S160 substitute models.Specifications
| Brand | Siemens / ITE |
|---|---|
| Part Number | HP3S160-R |
| Series | HP |
| Amperage | 1600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 50kA @ 480VAC, 25kA @ 600VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens Switchboards, Power Panelboards |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lugs |
|---|---|
| Accessories | Mounting Hardware |
| Standards | CSA C22.2 No. 5.1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
