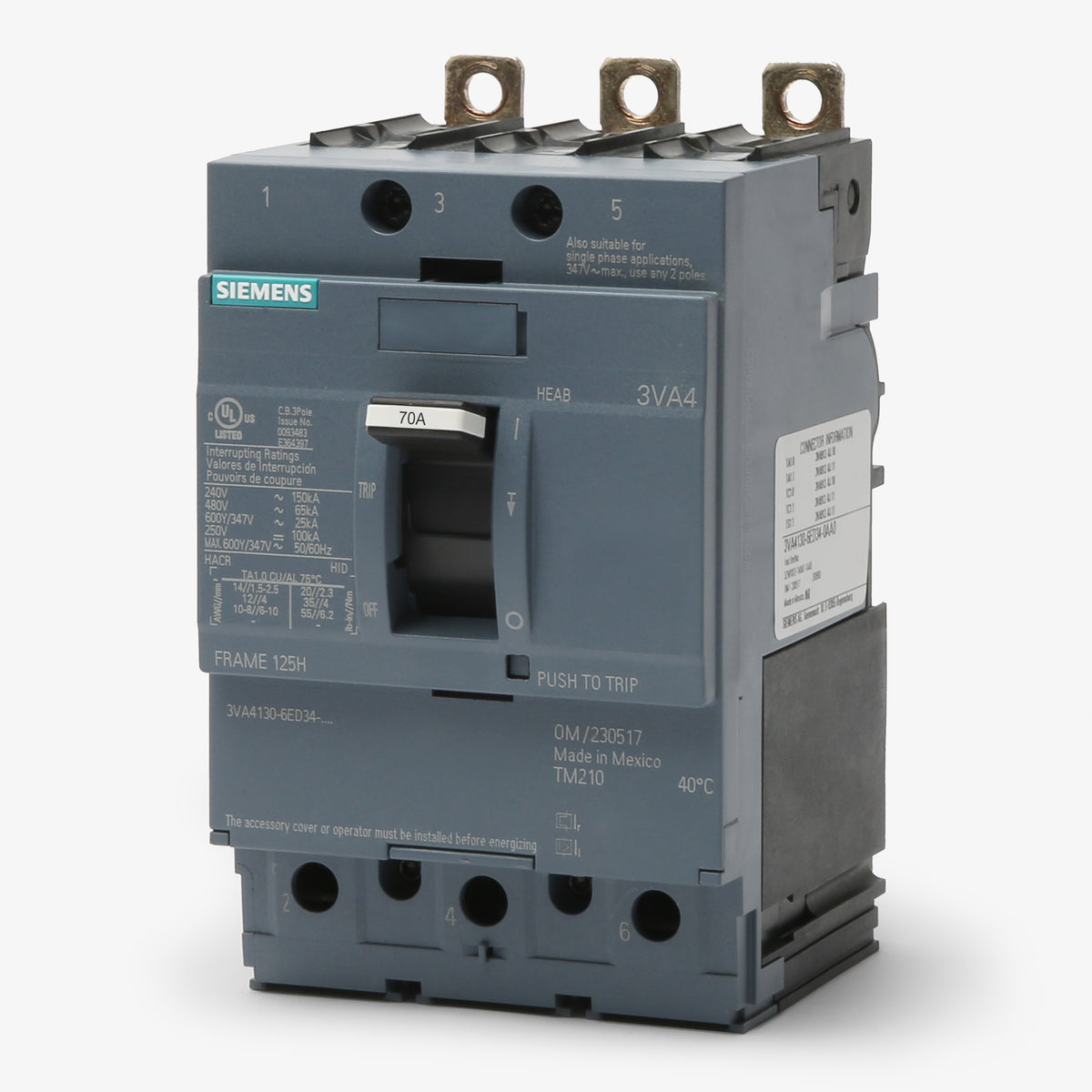

Siemens 3VA4170-6ED34-0AA0 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Quantity
Siemens 3VA4170-6ED34-0AA0 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Description
Built to handle demanding industrial environments, this 3-pole 70A circuit breaker delivers robust overcurrent and short-circuit protection. It utilizes fixed thermal and magnetic trip elements to ensure reliable operation across heavy-duty distribution networks. The bolt-on design mounts securely into Siemens P1, P2, P3, P4, and P5 panelboards. It also functions as an exact replacement for discontinued HED43B070 and HHED63B070 models.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA4170-6ED34-0AA0 |
| Series | 3VA4 |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480Y/277VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 100kA @ 250VDC |
| Frame Type | 3VA41 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3, P4, P5 Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, HACR Rated, IEC 60947-2, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersCan I use the 3VA4170-6ED34-0AA0 to replace an older HED4 or HHED6 breaker?
Yes, this 3VA4 series breaker serves as a direct replacement for the discontinued HED43B070 and HHED63B070 models. It fits the same panelboard spaces and provides equivalent or superior interrupting ratings.
Which Siemens panelboards accept this 3VA41 frame circuit breaker?
This bolt-on breaker is designed for installation in Siemens P1, P2, P3, P4, and P5 panelboards, as well as compatible Siemens switchboards. It is not designed for use in standard residential load centers.
What wire sizes are accepted by the lugs on this 70A breaker?

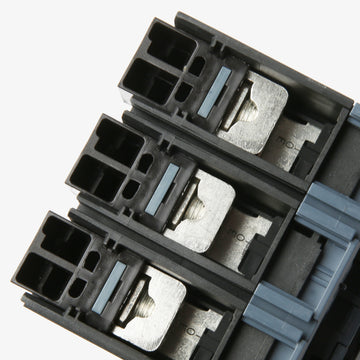

The factory-installed lugs accept wire gauges ranging from 14 AWG up to 3/0 AWG. Always ensure you torque the terminals to the manufacturer specifications printed on the breaker faceplate during installation to prevent arcing.
Is this breaker rated for use in direct current systems?
Yes, it carries a DC rating of up to 250VDC with a maximum interrupting capacity of 100kA. This makes it suitable for specific industrial DC distribution applications alongside standard AC networks.
Can I adjust the trip settings on the 3VA4170-6ED34-0AA0?
No, this breaker features a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. If your application requires adjustable trip curves, you will need to select a breaker equipped with an electronic trip unit.
Does this breaker snap into place or require bolted connections to the bus?

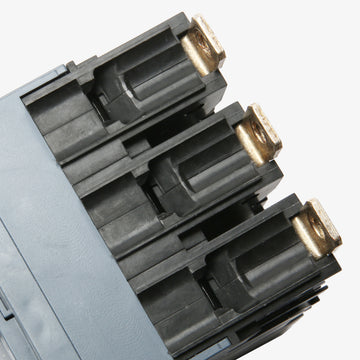

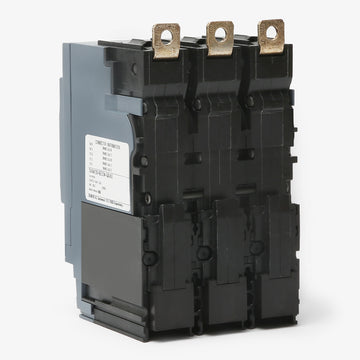

This is a bolt-on circuit breaker. It requires a physical bolted connection to the panelboard bus bars, providing a highly secure and vibration-resistant electrical connection compared to plug-in alternatives.
