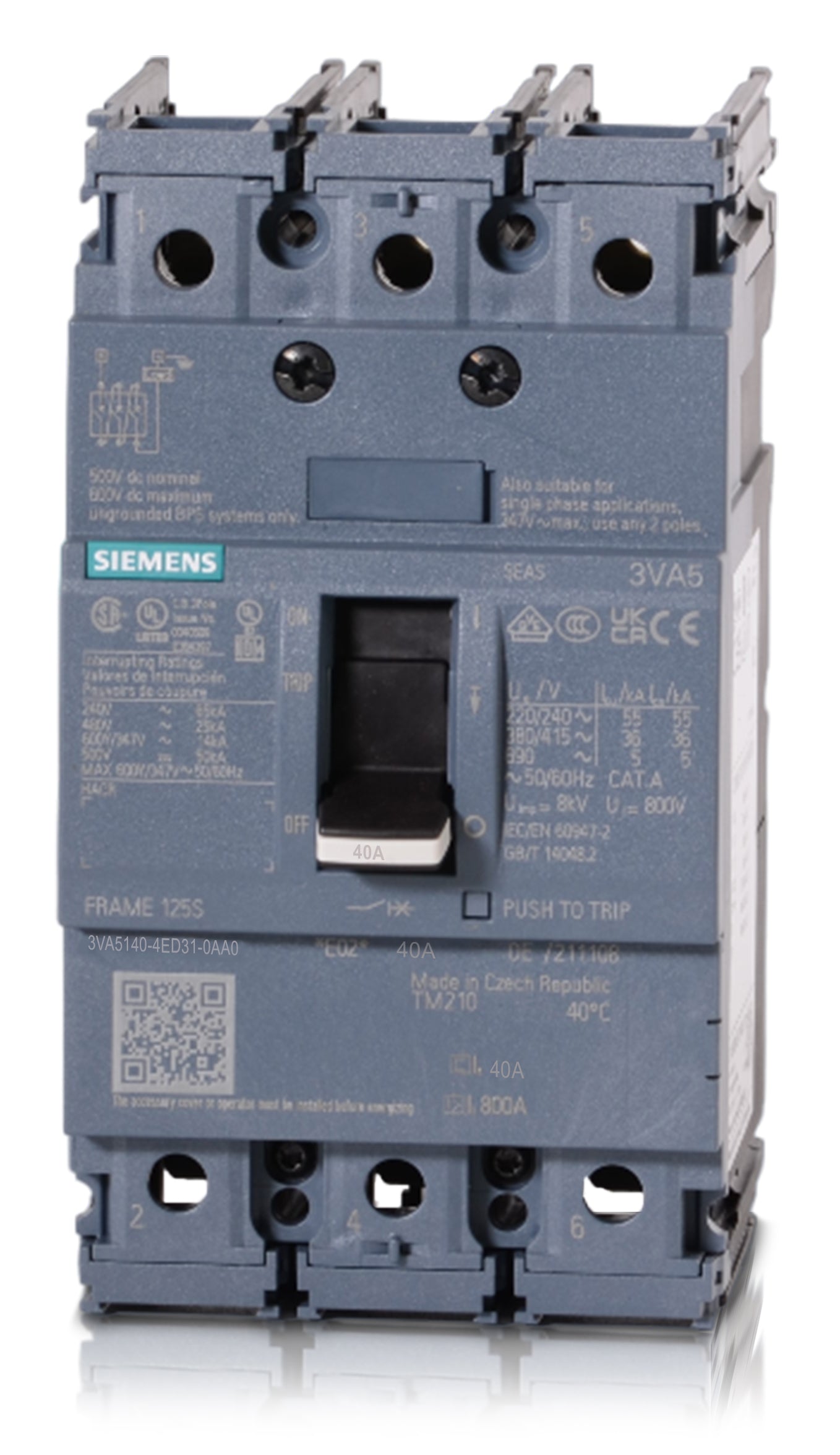

Siemens 3VA5140-4ED31-0AA0 Molded Case Circuit Breaker
- 40A
- 3 Pole
- Panel Mount
Siemens
3VA5140-4ED31-0AA0
Molded Case Circuit Breaker
Brand
Siemens
SKU
3VA5140-4ED31-0AA0
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Siemens 3VA5140-4ED31-0AA0 - 40A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Part of the SENTRON 3VA5 series, this 3-pole 40A breaker delivers reliable LI protection with a 25kAIC rating at 480VAC. The unit integrates seamlessly into Siemens P1, P2, and P3 panelboards, offering a streamlined upgrade path for older ED43B040 components. Designed with a fixed thermal and magnetic trip mechanism, it provides consistent performance for standard industrial applications. HACR rated and current limiting, this panel mount MCCB ensures robust system safety.Specifications
| Brand | Siemens |
|---|---|
| Part Number | 3VA5140-4ED31-0AA0 |
| Series | 3VA5 |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600Y/347VAC, 50kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Siemens P1, P2, P3 Panelboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, Motor Operator, Lugs, Handle Tie, Handle Lock, Padlock Attachment |
|---|---|
| Accessories | None (Without Connection) |
| Standards | IEC 60947-2, UL 489, HACR |
| Approval | ABS, CCC, CE, CSA, DNV, EAC, GL, IEC, LRS, RCM, UL, VDE |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Trip-Free Mechanism |
Product FAQs
6 answersWhat legacy Siemens breaker does the 3VA5140-4ED31-0AA0 replace?
This 3VA5 series breaker serves as the modern upgrade and direct replacement for the legacy Siemens ED43B040. It fits into the same Siemens P1, P2, and P3 panelboards.
Are load and line lugs included with the 3VA5140-4ED31-0AA0?
No, this specific catalog number indicates the breaker ships from the factory without lugs. Lugs or nut keepers must be sourced separately for field installation.
Is the 3VA5140-4ED31-0AA0 rated for reverse feed applications?
Yes, this 3VA5 thermal-magnetic molded case circuit breaker is UL listed for reverse feed installations.
How must the 3VA5140-4ED31-0AA0 be wired for 500V DC applications?
While rated for 50kA at 500V DC, applying this 3-pole breaker on 500V ungrounded DC systems requires connecting the power supply in a series or zig-zag configuration across all three poles.
What does the TM210 designation mean for this breaker's trip unit?
The TM210 designation indicates a thermal-magnetic trip unit with fixed thermal (overload) and fixed magnetic (short-circuit) settings, providing standard LI (Long-Time, Instantaneous) protection.
Which Siemens panelboards accept the 3VA5140-4ED31-0AA0?
This 3VA51 frame breaker is designed for seamless integration into Siemens P1, P2, and P3 panelboards.
