Siemens ED63S125A Molded Case Switch
Quantity
Core Specs
See full specs

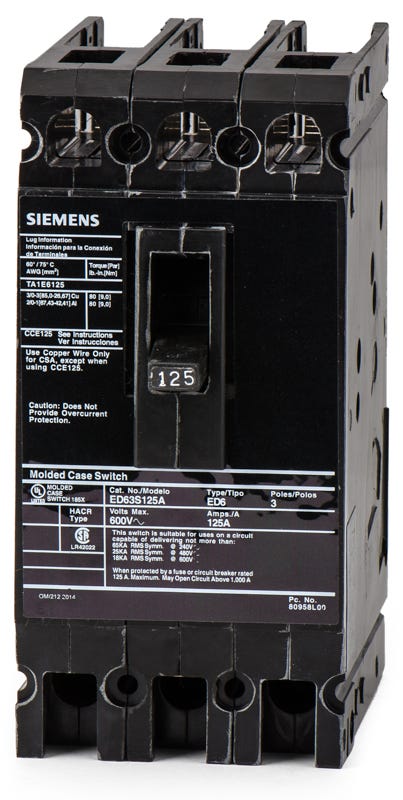

Siemens ED63S125A - 125A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
Siemens ED63S125A - 125A 3 Pole Molded Case Switch
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63S125A |
| Series | ED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Automatic (Disconnect), Self-Protective Instantaneous Override |
Quantity
Siemens ED63S125A - 125A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | ED63S125A-R |
| Series | ED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Automatic (Disconnect), Self-Protective Instantaneous Override |
Description
Serving as a reliable manual disconnect, the Siemens ED63S125A is a 125A, 3-pole molded case switch. Operating without thermal overload protection, it features a magnetic-only trip mechanism with a 1000A self-protective instantaneous override. This bolt-on unit is compatible with Siemens P1, P2, and P3 panelboards as well as standard switchboards. The reverse-feed capable switch includes TA1E6125 load side lugs, accommodating 3-3/0 AWG copper or 1-2/0 AWG aluminum wiring for easy installation.Specifications
| Brand | Siemens |
|---|---|
| Part Number | ED63S125A-R |
| Series | ED6 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600VAC, 30kA @ 250VDC |
| Frame Type | ED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P1, P2, P3 Panelboards, Switchboards |
| Wire Gauge | 3-3/0 AWG (Cu), 1-2/0 AWG (Al) |
| Max Wire | 3/0 AWG (Cu), 2/0 AWG (Al) |
| Min Wire | 3 AWG (Cu), 1 AWG (Al) |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs (TA1E6125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Automatic (Disconnect), Self-Protective Instantaneous Override |
