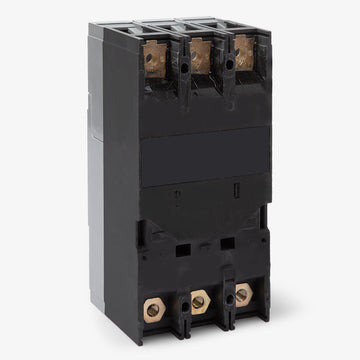

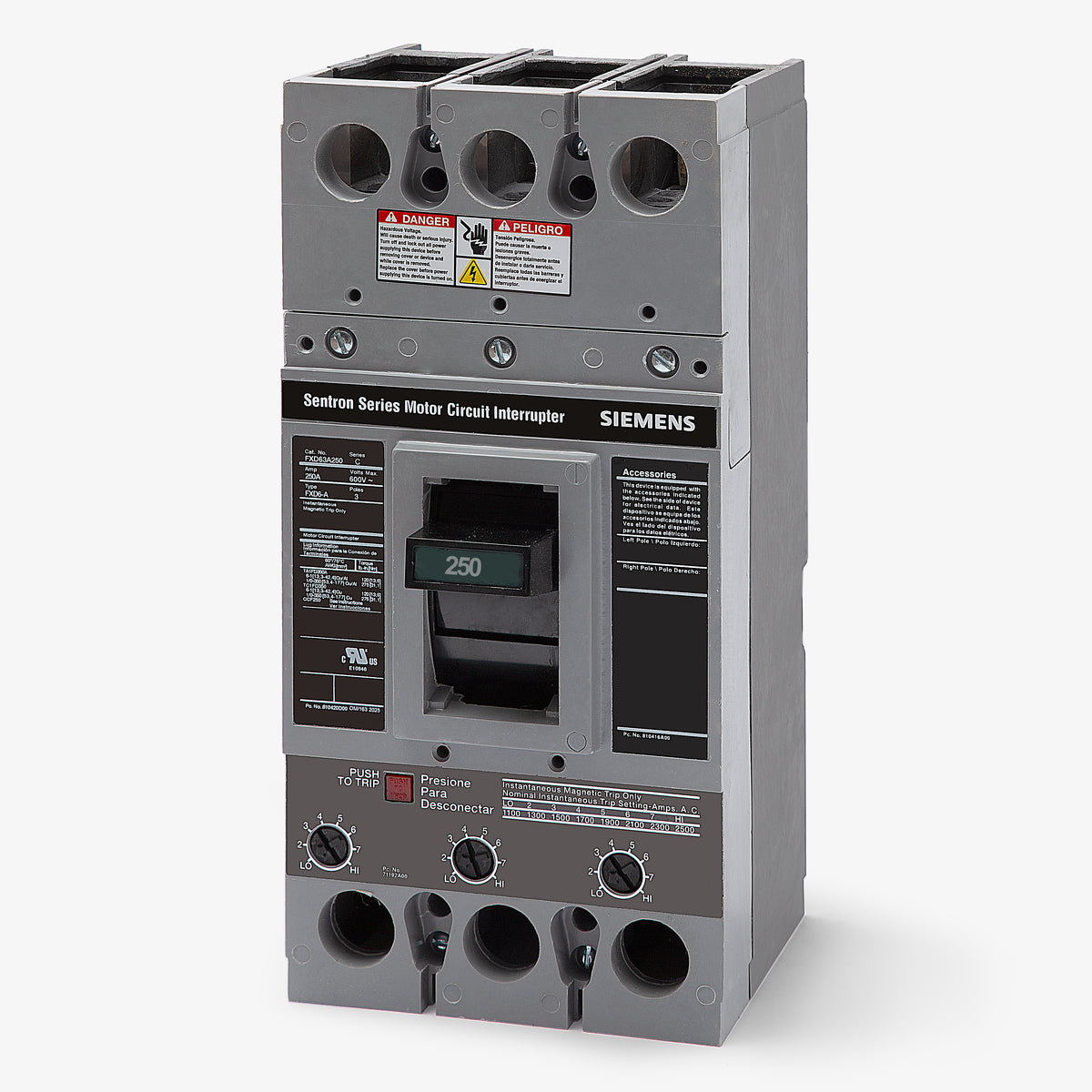

Siemens FXD63A250 Motor Circuit Protector
- 250A
- 3 Pole
- Unit Mount
Quantity
Siemens FXD63A250 - 250A 3 Pole Motor Circuit Protector
New
Quantity
Quantity
Siemens FXD63A250 - 250A 3 Pole Motor Circuit Protector
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63A250 |
| Series | FXD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 1100-2500A |
|---|
| Frame Type | FXD |
|---|---|

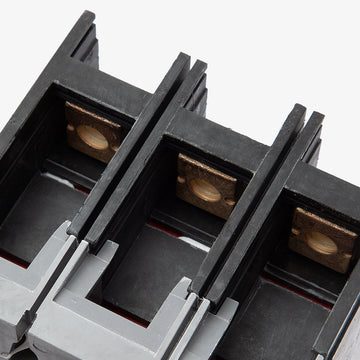

| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Switchboards, Enclosures |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |

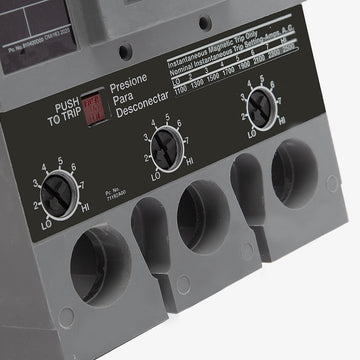

| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip, Non-Interchangeable Trip |
Quantity
Siemens FXD63A250 - 250A 3 Pole Motor Circuit Protector
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | FXD63A250-R |
| Series | FXD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 1100-2500A |
|---|
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Switchboards, Enclosures |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip, Non-Interchangeable Trip |
Description
Part of the Sentron series, this 250A motor circuit protector provides instantaneous magnetic-only protection for industrial motor control applications. The unit mount FD-frame device installs into Siemens motor control centers and switchboards. It serves as a direct replacement for legacy F-Frame ETI breakers. Featuring an adjustable trip range of 1100-2500A, the FXD63A250 delivers a 65kAIC rating at 240V. It ensures reliable performance across demanding 3-phase systems.Specifications
| Brand | Siemens |
|---|---|
| Part Number | FXD63A250 |
| Series | FXD6 |
| Amperage | 250A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600VAC, 30kA @ 250VDC |
| Amperage Range | 1100-2500A |
|---|
| Frame Type | FXD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens Motor Control Centers, Switchboards, Enclosures |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Trip Adjustability | Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Motor Circuit Protector, Adjustable Instantaneous Trip, Non-Interchangeable Trip |
