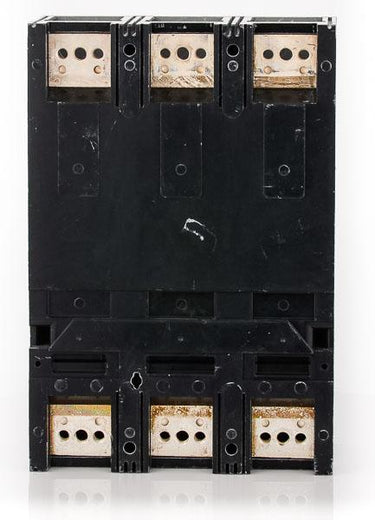

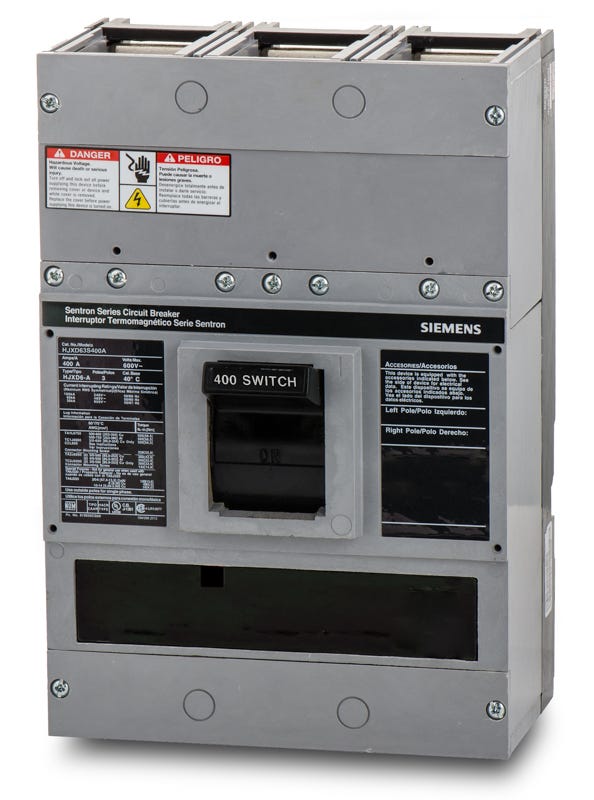

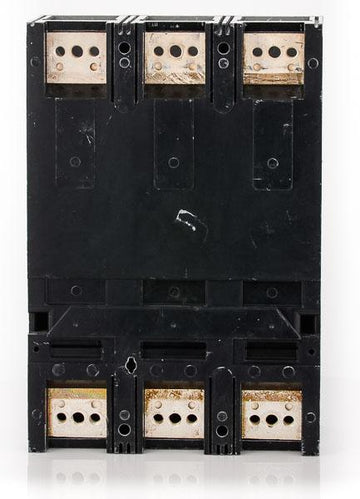

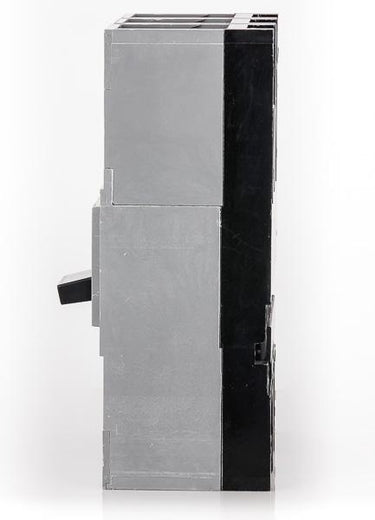

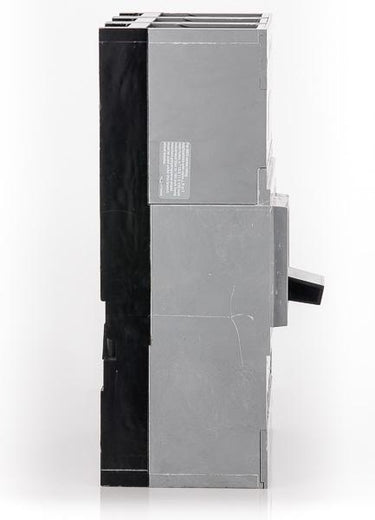

Siemens HJXD63S400A Molded Case Switch
Quantity
Core Specs
See full specs
Siemens HJXD63S400A - 400A 3 Pole Molded Case Switch
New
Quantity
Quantity
Siemens HJXD63S400A - 400A 3 Pole Molded Case Switch
New
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HJXD63S400A |
| Series | HJXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Frame Type | JD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Mechanical Lugs, Compression Lugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), HACR Rated, Reverse Feed, High Interrupting Capacity, Trip-Free Mechanism |
Quantity
Siemens HJXD63S400A - 400A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | Siemens |
|---|---|
| Part Number | HJXD63S400A-R |
| Series | HJXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Frame Type | JD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Mechanical Lugs, Compression Lugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), HACR Rated, Reverse Feed, High Interrupting Capacity, Trip-Free Mechanism |
Description
Engineered for heavy-duty isolation, the Siemens HJXD63S400A is a 3-pole, 400A molded case switch. Designed without thermal overload elements, this non-automatic device serves as a disconnect while incorporating a fixed magnetic override set at 6000A. The bolt-on unit mounts into Siemens P4 and P5 panelboards. Utilizing the Sentron JD frame architecture, it ensures proper alignment. Capable of handling 600VAC, the switch boasts a 65kAIC rating at 480V and features a trip-free mechanism.Specifications
| Brand | Siemens |
|---|---|
| Part Number | HJXD63S400A |
| Series | HJXD6 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Frame Type | JD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Siemens P4, P5 Panelboards, Switchboards |
| Trip Technology | Magnetic Only |
|---|---|
| Trip Function Code | I |
| Trip Function | Instantaneous Only |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Mechanical Lugs, Compression Lugs |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), HACR Rated, Reverse Feed, High Interrupting Capacity, Trip-Free Mechanism |
