Siemens SHMD69800ANTH 3 Pole Circuit Breaker

Siemens SHMD69800ANTH 3 Pole Circuit Breaker

Re-Certified

$3395.00 In stock

Quantity

Description

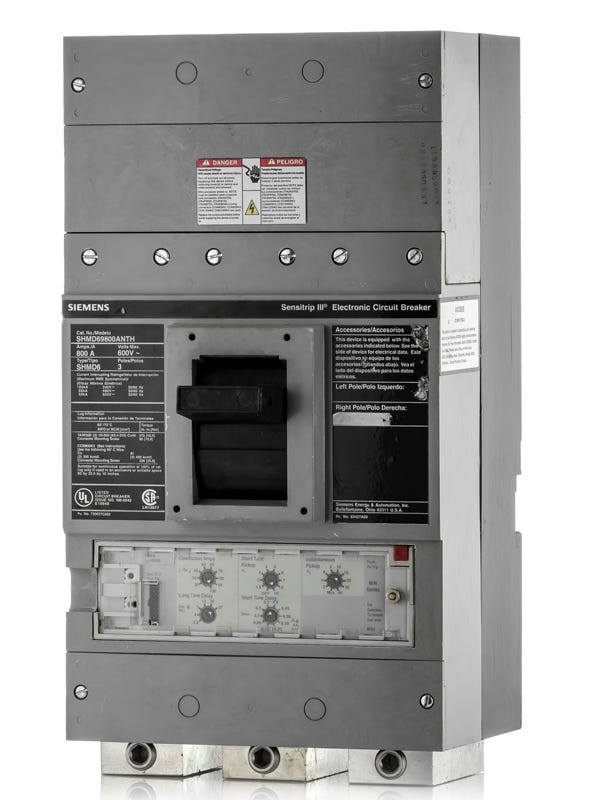

Siemens SHMD69800ANTH 3 Pole Circuit Breaker

The Siemens SHMD69800ANTH is a 3 Pole solid state molded case circuit breaker with a current rating of 800 Amps and a voltage rating of 600V. It has an interrupting rating of 50kAIC at 600V, 65kAIC at 480V. The SHMD69800ANTH has a bolt-on connection type and includes LSI - long time, short time and instantaneous functions.

Specifications

Brand Siemens
Series Sentron
Amperage 800
Voltage 600V
Poles 3
Phase 3
Approval UL, IEC
Interrupting Rating 50kAIC at 600V, 65kAIC at 480V
Connection Type Bolt-On
Protection Solid State
Functions LSI - Long Time, Short Time and Instantaneous
Terminal Connection Line and Load Side Lug
Wire Gauge 1/0 AWG to 500 KCM (CU/AL)
Temperature Rating 40°C
Actuator Type Varying
Mpn SHMD69800ANTH
Upc 783643252783
