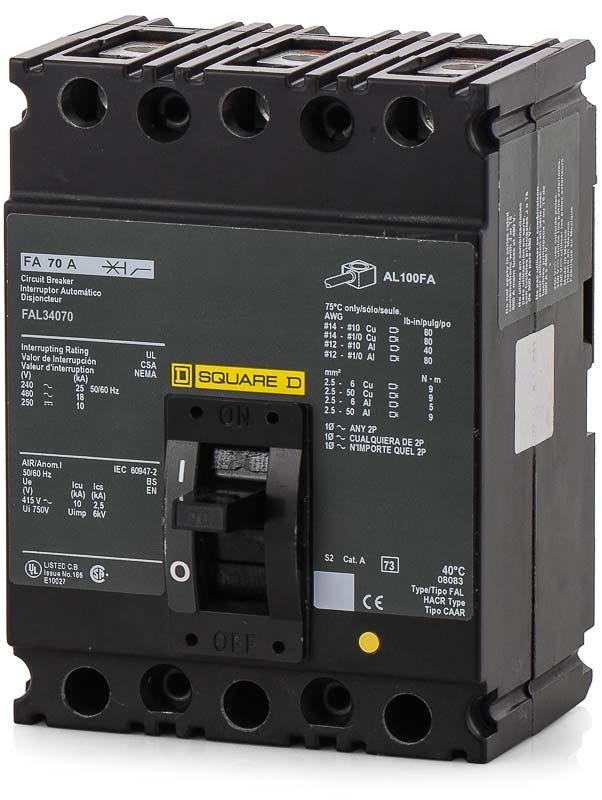

Square D FAL34070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Square D
FAL34070
Molded Case Circuit Breaker
Brand
Square D
SKU
FAL34070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Square D FAL34070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Square D FAL34070 - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34070 |
| Series | FAL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Quantity
Square D FAL34070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | FAL34070-R |
| Series | FAL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy F-Frame series, the FAL34070 is a 3-pole, 70A molded case circuit breaker built for commercial and industrial power distribution. It provides reliable thermal-magnetic protection with fixed long-time and instantaneous (LI) trip functions. This unit-mount breaker installs into Square D enclosures, switchboards, and motor control centers. For system upgrades, note that this legacy model is replaced by the HGL36070. It features an 18 kAIC rating at 480VAC and is HACR rated.Specifications
| Brand | Square D |
|---|---|
| Part Number | FAL34070-R |
| Series | FAL |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR Rated, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat enclosures or panels are compatible with the FAL34070?
This legacy F-frame breaker is a unit-mount device designed for older Square D switchboards, motor control centers, and individual enclosures that accommodate feed-thru wiring.
What are the specific magnetic hold and trip values for the FAL34070?
The instantaneous magnetic protection is fixed, featuring an 800A hold current and a 1450A trip current.
Which standard lugs are used on the FAL34070 and what wire do they accept?
The factory AL100FA lug kit is standard for this amperage range. It accommodates one 14 to 1/0 AWG copper wire or one 12 to 1/0 AWG aluminum wire per terminal.
Is the FAL34070 still in active production?
No, Schneider Electric and Square D have discontinued the legacy F-frame series. For complete system upgrades, this model is typically replaced by the modern PowerPact H-frame line, such as the HGL36070.
Does this breaker plug onto a standard panelboard bus?
No, the FAL34070 is a unit-mount circuit breaker. It mounts independently via mounting screws and relies on wire lugs for both line and load connections rather than plugging or bolting onto a panelboard busbar.
Can the FAL34070 be utilized in DC systems?
Yes, it is rated for up to 250VDC with a 10kA interrupting capacity, allowing integration into industrial DC control panels or specialized distribution systems.
