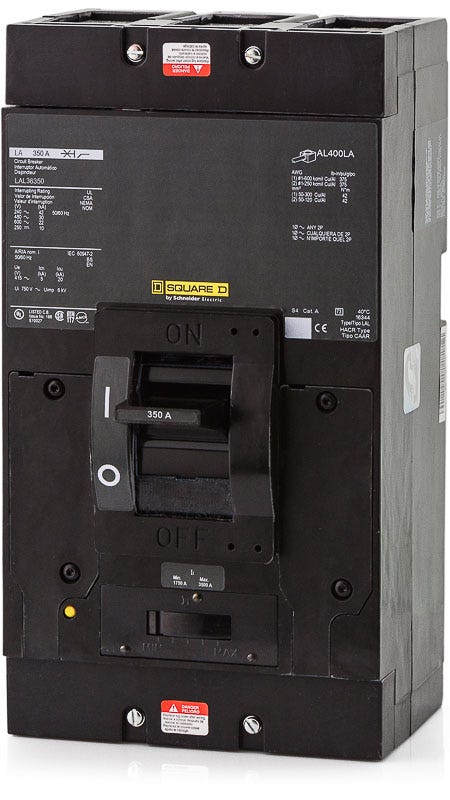

Square D LAL36350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Unit Mount
Quantity
Square D LAL36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Square D LAL36350 - 350A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36350 |
| Series | LAL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, RoHS Compliant |
Quantity
Square D LAL36350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | LAL36350-R |
| Series | LAL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, RoHS Compliant |
Description
Built for industrial applications, the Square D LAL36350 is a 3-pole, 350A MCCB from the legacy L-Frame series. It provides dependable thermal-magnetic protection for heavy-duty electrical distribution networks. This unit mount breaker installs into Square D switchboards and motor control centers. It is commonly replaced by the PowerPact LGL36350, though the 600V AIC rating should be verified. Rated at 42kAIC at 240VAC, it features adjustable magnetic trip settings and standard lugs.Specifications
| Brand | Square D |
|---|---|
| Part Number | LAL36350 |
| Series | LAL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | LAL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Square D Industrial Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 1 AWG-600 kcmil (Al/Cu) or (2) 1 AWG-250 kcmil (Al/Cu) |
| Max Wire | 600 kcmil |
| Min Wire | 1 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs (AL400LA) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Mercury Free, PVC Free, RoHS Compliant |
Product FAQs
5 answersWhat is the standard mechanical lug kit for the LAL36350, and what wire sizes does it accept?
The factory standard mechanical lug kit is the AL400LA. Each terminal accommodates either one 1 AWG to 600 kcmil wire or two 1 AWG to 250 kcmil wires in aluminum or copper.
What are the adjustable magnetic trip parameters on this 350A breaker?
The LAL36350 features a thermal-magnetic trip unit with an adjustable instantaneous magnetic trip. The low setting, or magnetic hold current, is 1750A, and the high setting, or magnetic tripping current, is 3500A.
Is the legacy LAL36350 obsolete, and what series replaces it?
Yes, the legacy L-Frame series has been superseded by the Square D PowerPact L-Frame molded case circuit breakers. When retrofitting a unit-mount LAL36350, engineers typically specify a PowerPact LGL or LJL equivalent, though the required available fault current (AIC) must be verified for the specific application.
Can the LAL36350 be reverse-fed for a back-fed main breaker application?
Yes. Standard thermal-magnetic LAL breakers do not feature directional Line and Load markings. This allows them to be reverse-fed or back-fed safely in panel or switchboard applications following standard NEC guidelines.
Can I install the LAL36350 in a Square D I-Line panelboard?
No. The LAL36350 is a unit-mount circuit breaker equipped with mechanical lugs on both the line and load ends. For an I-Line panelboard or switchboard, you must use the LA36350, which features a plug-on line connection designed specifically for the I-Line bus system.
