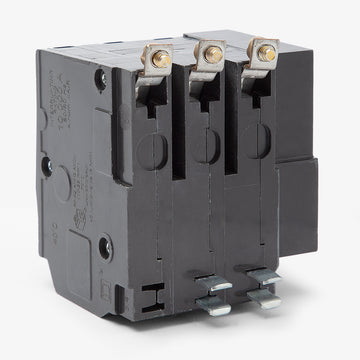

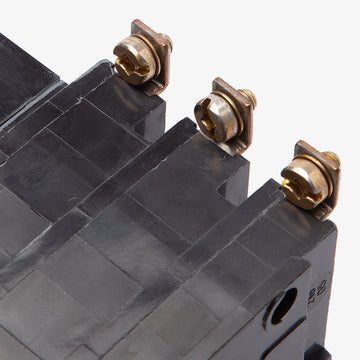

Square D QOB3501021 Circuit Breaker
- 50
- 3 Pole
- Bolt-On
Quantity
Square D QOB3501021 3 Pole Circuit Breaker
New
Quantity
Quantity
Square D QOB3501021 3 Pole Circuit Breaker
New
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3501021 |
| Series | QOB |
| Amperage | 50 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Quantity
Square D QOB3501021 3 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Square D |
|---|---|
| Part Number | QOB3501021-R |
| Series | QOB |
| Amperage | 50 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Description
Square D QOB3501021 3 Pole Circuit Breaker
The Square D QOB3501021 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The QOB3501021 has a bolt-on connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Square D |
|---|---|
| Part Number | QOB3501021 |
| Series | QOB |
| Amperage | 50 A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 120VAC, 10kA @ 240VAC, 10kA @ 120/240VAC, 5kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | NQ Panelboards, NQOD Panelboards |
| Wire Gauge | 8-2 AWG (Al/Cu) |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Shunt Trip (Factory Installed), Load Side Lugs Included |
| Standards | UL 489, CSA C22.2 No. 5, HACR |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
5 answersWhat does the 1021 suffix indicate on the QOB3501021 circuit breaker?

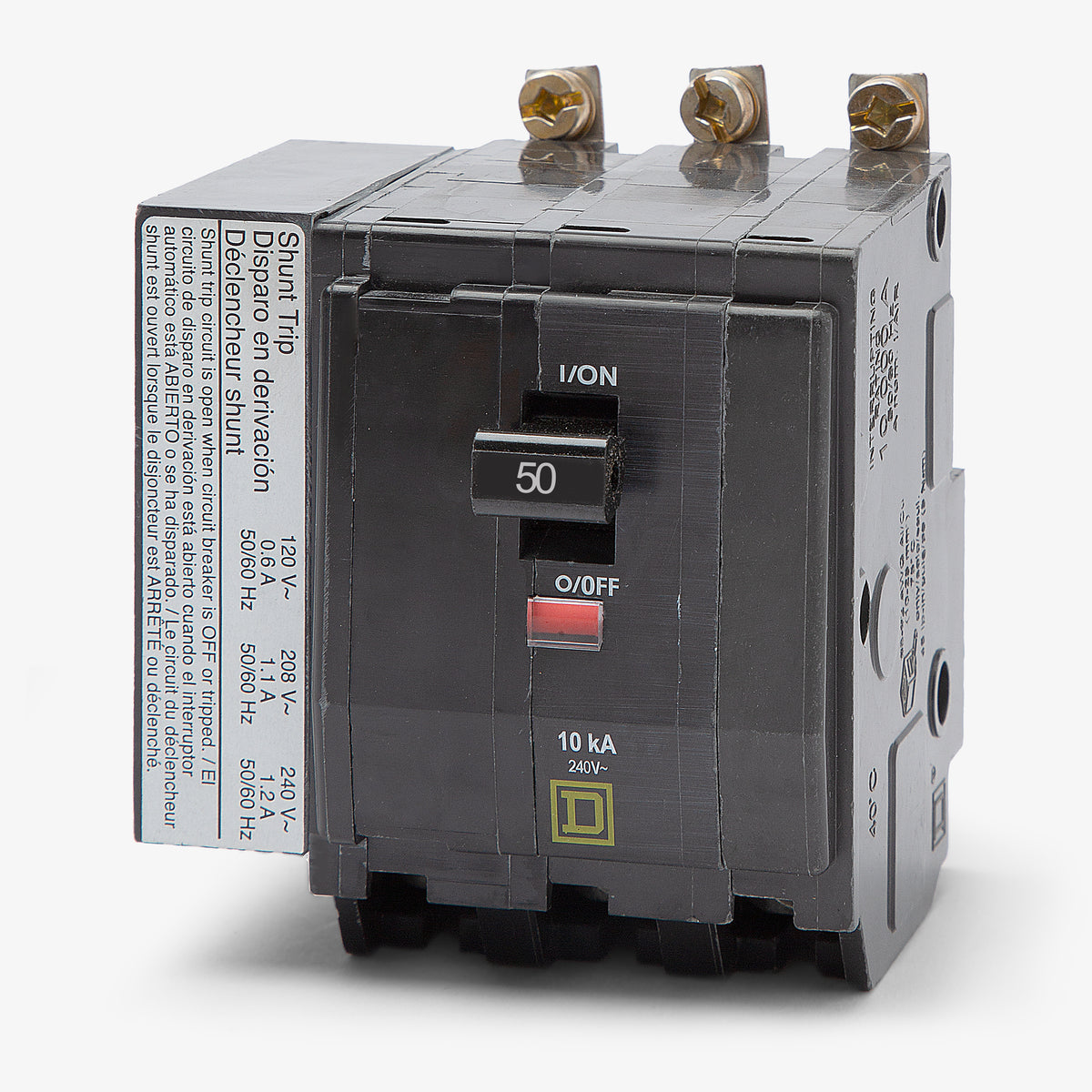

The 1021 suffix [1.2.2] means the circuit breaker includes a factory-installed 120/240 VAC shunt trip. This accessory allows the breaker to be tripped remotely when voltage is applied to the shunt coil.
How many panel spaces does the QOB3501021 occupy?
Because the factory-installed shunt trip requires one additional pole space, this 3-pole circuit breaker will take up a total of four spaces in your NQ or NQOD panelboard.

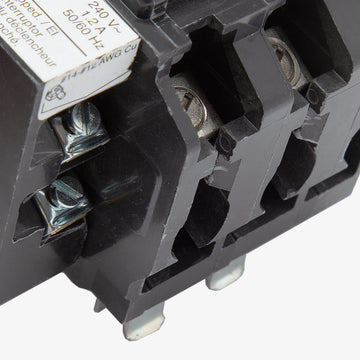

What size wire is required for the shunt trip accessory terminals?
The shunt trip terminals on this circuit breaker accept two 14 to 12 AWG copper wires. The control voltage wires can be connected to either terminal.
Can I field-install a shunt trip on a standard QOB 3-pole breaker instead of buying this model?
No. Square D shunt trips for QO and QOB miniature circuit breakers are factory-installed only and cannot be added to an existing breaker in the field.
Can I use this bolt-on breaker in a standard QO load center?
No. Bolt-on circuit breakers (QOB series) are designed specifically for commercial and industrial NQ and NQOD panelboards. Standard residential QO load centers require plug-on circuit breakers.
