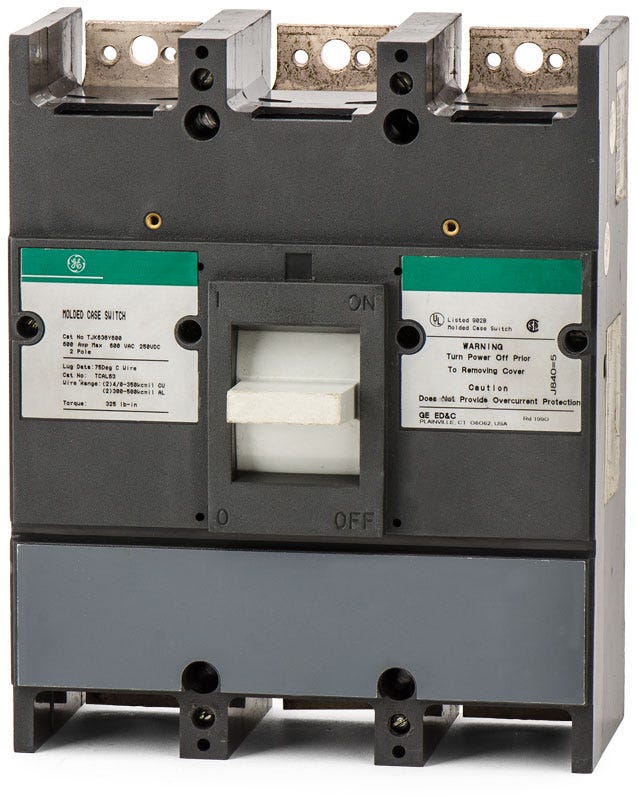

ABB / General Electric TJK636Y600 Molded Case Switch
Quantity
Core Specs
See full specs
ABB / General Electric TJK636Y600 - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
Quantity
ABB / General Electric TJK636Y600 - 600A 3 Pole Molded Case Switch
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636Y600 |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL63) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Interchangeable Trip Unit |
Quantity
ABB / General Electric TJK636Y600 - 600A 3 Pole Molded Case Switch
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636Y600-R |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL63) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Interchangeable Trip Unit |
Description
Built for heavy-duty commercial applications, the GE TJK636Y600 is a three-pole, 600A molded case switch. Operating at up to 600VAC, this non-automatic device is designed strictly for circuit isolation. The bolt-on switch mounts into GE J600 panelboards, switchboards, and motor control centers. It features standard lug terminals accepting dual 4/0 AWG to 350 kcmil copper conductors. This J-Frame disconnect utilizes an interchangeable magnetic-only trip unit for self-protection.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TJK636Y600-R |
| Series | TJK |
| Amperage | 600A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 500VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 20kA @ 250VDC, 20kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE J600 Panelboards, GE Switchboards, Motor Control Centers |
| Wire Gauge | (2) 4/0 AWG-350 kcmil (Cu) or (2) 300-500 kcmil (Al) |
| Max Wire | 500 kcmil |
| Min Wire | 4/0 AWG |
| Trip Technology | Magnetic Only |
|---|
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs (TCAL63) |
| Standards | CSA C22.2 No. 5.1, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Automatic (Disconnect), Interchangeable Trip Unit |
