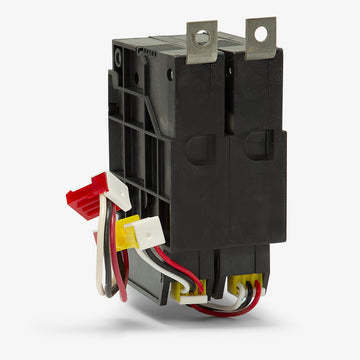

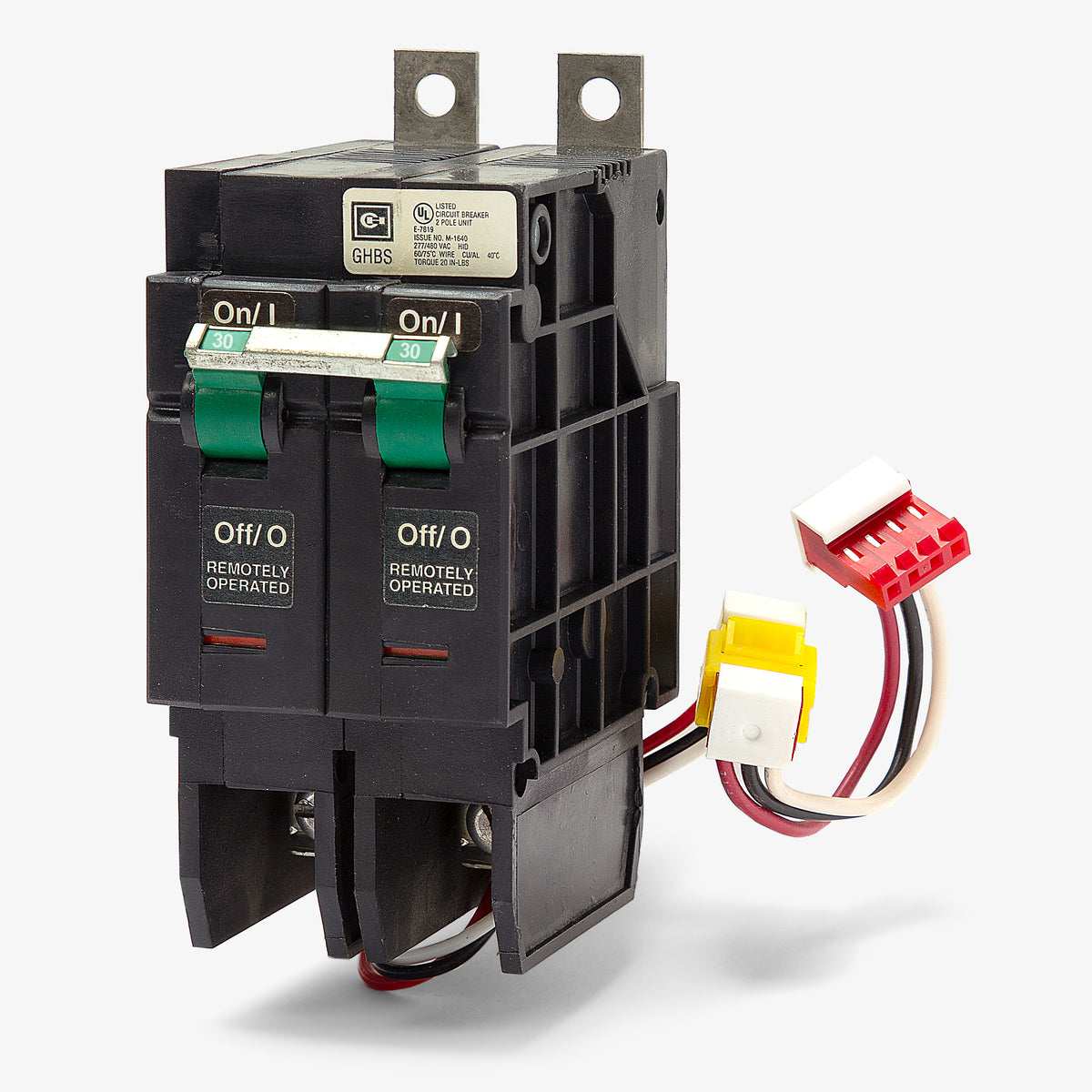

Eaton / Cutler-Hammer GHBS2030D Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Quantity
Eaton / Cutler-Hammer GHBS2030D - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Description
Built for commercial applications, the Eaton GHBS2030D is a 30A, two-pole miniature circuit breaker designed for Eaton Pow-R-Command lighting control panelboards. This bolt-on unit features a G-frame footprint and includes load-side lugs. Note that it is replaced by the GHQRSP2030 for panels manufactured after 2001. Rated 65 kAIC at 240VAC, it utilizes thermal-magnetic trip technology. The factory-installed solenoid operator allows for remote pulse-on/pulse-off control.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | GHBS |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Pow-R-Command Panelboards |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included, Solenoid Operator (Factory Installed) |
| Standards | CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Remote Controlled, Solenoid Operated, Non-Interchangeable Trip, Common Trip |
Product FAQs
6 answersWhat panelboards are compatible with the GHBS2030D?
This bolt-on breaker is specifically designed for use in Eaton and Cutler-Hammer Pow-R-Command automated lighting control panelboards.
Does the GHBS2030D support remote switching?

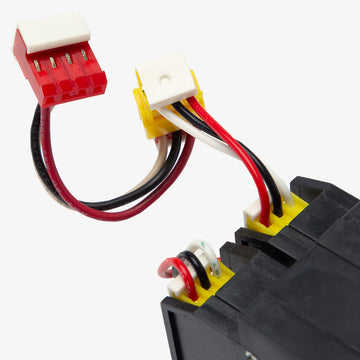

Yes. It features a built-in solenoid operator that allows for remote-controlled pulse-on and pulse-off switching when connected to a Pow-R-Command controller.
How do you arm the remote control function on this breaker?

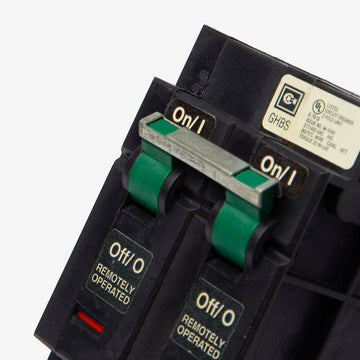

The remote control capability is armed by manually switching the breaker handle to the ON position. Once armed, the automated controller can pulse the solenoid to open or close the circuit.
Can the GHBS2030D be installed in a standard residential load center?
No. This is a bolt-on G-frame breaker designed for 277/480V commercial Pow-R-Command panelboards, not standard plug-on residential load centers.
Is this breaker rated for direct current (DC) applications?
Yes. In addition to its standard AC ratings, the GHBS2030D carries a 14 kAIC interrupting rating at 125/250VDC for direct current circuits.
Will this breaker arrive branded as Eaton or Cutler-Hammer?
Eaton acquired Cutler-Hammer, and the two brand names are often used interchangeably. The GHBS2030D catalog number is identical for both, and the breaker functions exactly the same regardless of the logo printed on the label.
