Eaton / Cutler-Hammer CHFN130GF GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Quantity

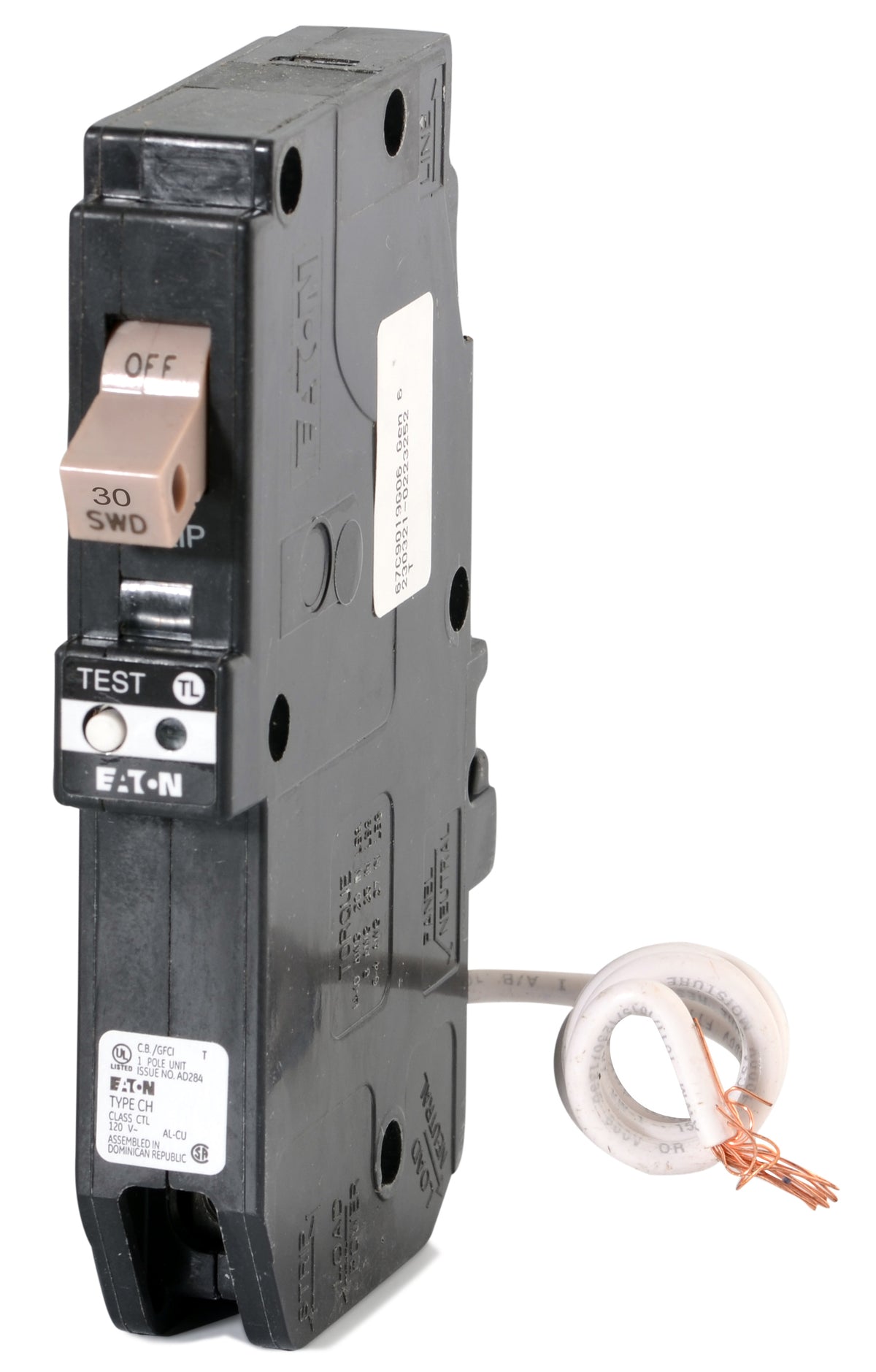

Eaton / Cutler-Hammer CHFN130GF - 30A GFCI Miniature Circuit Breaker
New
Quantity
Description
Delivering essential 5mA personnel protection, this 30-amp single-pole breaker meets NEC requirements for wet residential locations. The unit features built-in self-test technology to ensure continuous ground fault monitoring. Designed for 3/4-inch Eaton CH load centers, it mounts securely via a plug-on connection. It serves as an exact replacement for older CHFGF130 and CH130GF models, utilizing a standard pigtail neutral. A visual trip flag provides immediate status indication.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHFN |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | 14-6 AWG |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 943, CSA C22.2 No. 5 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Visual Trip Indicator, Self-Test |
Product FAQs
5 answersWhat panels are compatible with the CHFN130GF?
This breaker is designed exclusively for Eaton CH series load centers. It requires a single 3/4-inch space and mounts via a standard plug-on connection.
Can I use the CHFN130GF to replace older CH130GF breakers?
Yes, the CHFN130GF serves as a direct replacement for legacy CH130GF and CHFGF130 models.
What level of ground fault protection does this breaker provide?
The CHFN130GF provides Class A ground fault protection, which trips at 5mA to protect personnel from electrical shock in wet or damp locations.
How is the neutral connection wired on this breaker?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in the load center, while the circuit load neutral connects to the breaker itself.
Does this breaker include a self-test feature?
Yes, the CHFN series includes built-in self-test technology to ensure continuous ground fault monitoring, along with a visual trip flag for immediate status indication.
